Form Field - Multi-select Box

The Multi-Select Box component is similar to the Select Box but allows users to select multiple options from the list.

Go to (Menu) > Automation > Service Catalog > Design.
To design a new form page, click the + (Design) icon.
Click the + (New Page) icon.
On the displayed new page, in the Switch Layout pop-up, select either Single Page or Multi page to proceed. (You may even close the pop-up without selecting any option. Single Page is the default layout applied.)
On the left click Build, and scroll down to view the Form components.
Select Multi-select Box and drag it to the right on the new page.

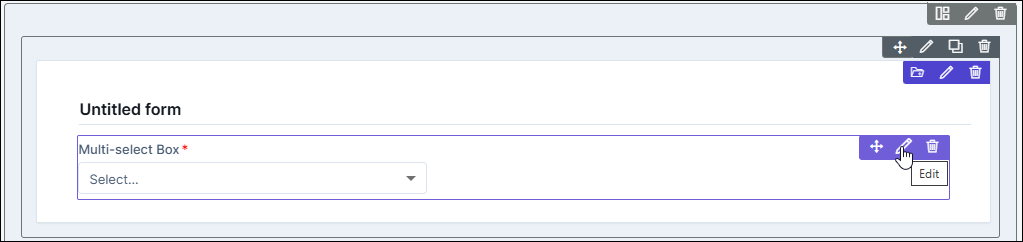

The Multi-select Box component is added in the form, with icons to Move, Edit, and Delete.
To modify the properties and styles click the Edit icon. Refer to the sections below.

Editing Multi-Select Box Properties

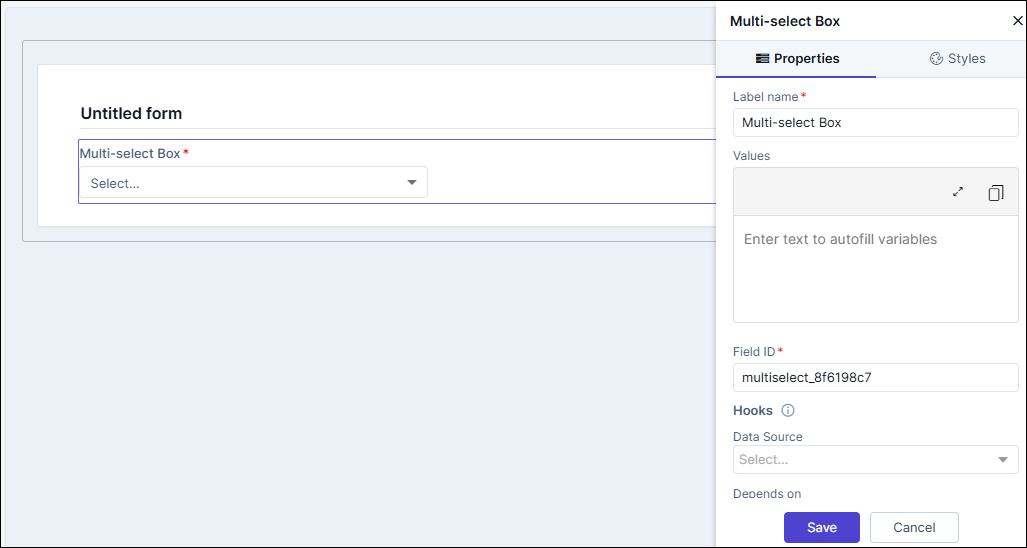

The edit panel opens on the right with Properties selected as the default tab.

Table 1. Field description for Properties
Fields	Description
Label name	Enter a valid name for the component.
Values	Allows you to define a values that will appear on the page load in the preview and published mode. Enter the comma separated values; each value is considered a dropdown option. A default value to appear on page load can be configured using hooks.
Field ID	An auto-generated Id for the field, this can be edited. The IDs are useful while creating hooks. Allowed characters: ‘-‘ and ‘_’ Character Length: Min (1), Max (50).
Hooks / Data Source	Allows you to assign an appropriate hook for this field. For example, a hook to fetch the current date. Select a hook that is relevant to the form field. Hooks can be either Script or REST API. Hooks are used to fetch details against a specific form field from the device and/or database and map them to the respective field on the user interface. Note: For more information on Assigning Hooks to Form Fields, click here.
Depends on	The "Depends On" property enables rendering a field based on the selected data of another field. It establishes dependencies between form elements, dynamically updating the form layout based on user interactions. For example, if a user wants to render a field to enter email id, only if the username matches admin then the depends on value will be like `username:admin` . Ideally the syntax would be field_id:value Examples are: `username:admin username:admin&password:admin (username:admin)\|(password:admin) (username:admin)&(password:admin) ((username:admin)&(password:admin))\|(device:adc) (username:admin)\|(password:startsWith.a) (username:admin)\|(username:admin,user 1) //for multi -select box` Note: For AND operations only single ampersand (&) is used and for OR operations only single pipe ( \| ) is used
Validation	The Validation property provides users with the ability to define validation rules for form fields. These rules ensure that the entered data meets specific criteria, maintaining data accuracy and integrity. Users have the privilege either to use the validations already available or create custom regex validation. Example: sample validation for No special characters and spaces are allowed except('-', '_') and name should not start with special characters. Maximum length mismatches. Maximum Length - 255 Validation Regex would be: `^[^_-][a-zA-Z_-]{1,255}$`
Parent ID	Allows you to assign a Parent ID for fields in a table. Select the relevant tabular component (Field ID) against which the form field must be mapped to. Note: This is used only when defining a tabular element in the form.
Help	Allows you to add Help text/tool-tip for the field.
Mandatory	Allows you to define this field as Mandatory or otherwise. If marked as mandatory, an asterisk (*) is displayed next to the field name in the form.
Read only	Allows you to define this field as read only or otherwise. If marked as Read Only, a red crossed circle is displayed when you hover your mouse over the read only field and does not allow you to enter any information.
Global variable	The "Global Variable" property enables users to reference and use global variables within form fields. These variables provide dynamic values that can be utilized in calculations or conditional logic within the form.
Create option	Allows dynamic value creation. After the page loads, users can type a value into the field and select the prompt below the field to add the value.
Save / Cancel buttons	To update the changes, click Save. To undo the changes, click Cancel.

Editing Multi-Select Box Styles

The edit panel opens on the right, click the Styles tab to configure the overall appearance.

Table 2. Field description for Styles
Fields	Description
Font
Weight	The Weight dropdown list lets you set the font thickness of the field label using one of the following values: Default, Light, Normal, Bold.
Size	Allows you to increase/decrease font size of the component/label name.
Line height	Allows you to increase/decrease the line height of the field. This means the space between the field and the field border.
Color	Allows you to define the color of the component/label name.
Align	Allows you to align the field name to the left, center or right side of the form.
Field Size	Allows you to define the size of the form field as Small, Medium, or Large.
Save / Cancel / Restore buttons	To update the changes, click Save. To undo the changes, click Cancel. To restore the settings to default, click icon.
