Istio Ingress Gateway Access Logs Configuration

Log in to the installer node and go to the envoy_filter directory.

cd <appviewx_kubernetes_path>/scripts/envoy_filter

Create the ef-ingress-gateway-access-log.yaml file and paste the code below.

apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
  name: ingressgateway-access-logs
  namespace: istio-system
spec:
  workloadSelector:
    labels:
      istio: ingressgateway
  configPatches:
  - applyTo: NETWORK_FILTER
    match:
      context: GATEWAY
      listener:
        filterChain:
          filter:
            name: "envoy.filters.network.http_connection_manager"
    patch:
      operation: MERGE
      value:
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          access_log:
          - name: envoy.access_loggers.file
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.access_loggers.file.v3.FileAccessLog
              path: "/var/log/istio-ingressgateway-access.log"
              log_format:
                json_format:
                  "start_time": "%START_TIME%"
                  "method": "%REQ(:METHOD)%"
                  "path": "%REQ(X-ENVOY-ORIGINAL-PATH?:PATH)%"
                  "protocol": "%PROTOCOL%"
                  "response_code": "%RESPONSE_CODE%"
                  "response_flags": "%RESPONSE_FLAGS%"
                  "bytes_received": "%BYTES_RECEIVED%"
                  "bytes_sent": "%BYTES_SENT%"
                  "duration": "%DURATION%"
                  "upstream_cluster": "%UPSTREAM_CLUSTER%"
                  "user_agent": "%REQ(USER-AGENT)%"
                  "downstream_remote_address": "%DOWNSTREAM_REMOTE_ADDRESS%"
                  "downstream_local_address": "%DOWNSTREAM_LOCAL_ADDRESS%"
                  "upstream_service_time": "%RESP(X-ENVOY-UPSTREAM-SERVICE-TIME)%"
                  "x_forwarded_for": "%REQ(X-FORWARDED-FOR)%"

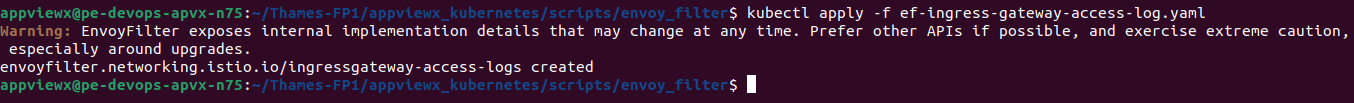

Execute the command below to apply the envoy filter.

kubectl apply -f ef-ingress-gateway-access-log.yaml

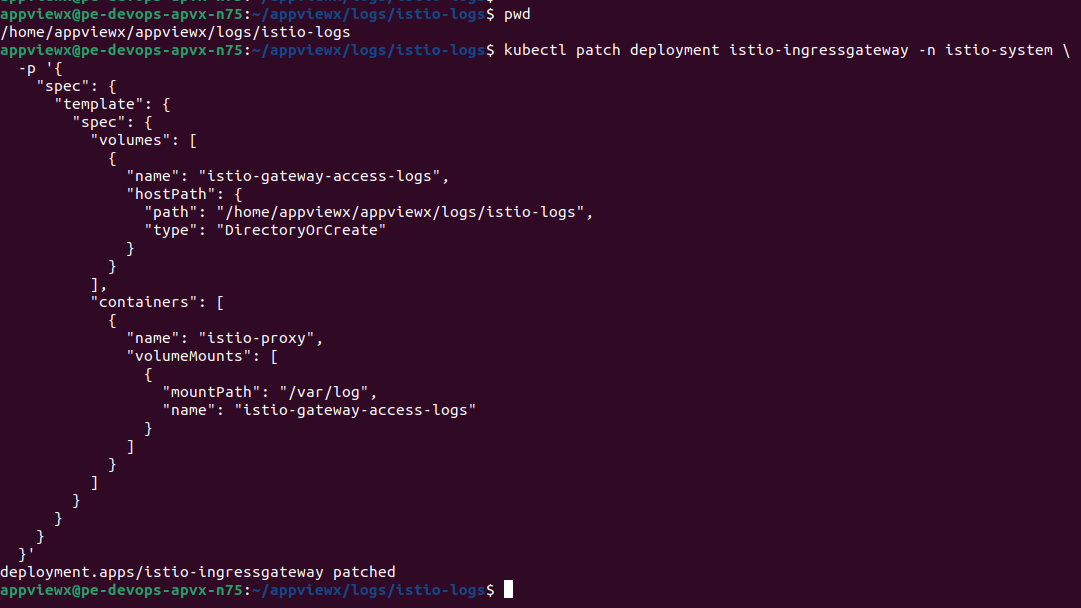

Patch the istio ingress gateway deployment as shown below.

Note: Please update the <INSTALLATION_PATH> placeholder before executing patch command below.

kubectl patch deployment istio-ingressgateway -n istio-system \
  -p '{
    "spec": {
      "template": {
        "spec": {
          "volumes": [
            {
              "name": "istio-gateway-access-logs",
              "hostPath": {
                "path": "<INSTALLATION_PATH>/logs/istio-logs",
                "type": "DirectoryOrCreate"
              }
            }
          ],
          "containers": [
            {
              "name": "istio-proxy",
              "volumeMounts": [
                {
                  "mountPath": "/var/log",
                  "name": "istio-gateway-access-logs"
                }
              ]
            }
          ]
        }
      }
    }
  }'

Update ownership of the istio-logs directory and configure the correct installation user

cd <INSTALLATION_PATH>/logs

sudo chown -R appviewx:appviewx istio-logs/

Replace the logrotate_configmap.yaml under <appviewx_kubernetes_path>/yaml.

cd <appviewx_kubernetes_path>/appviewx_logrotate/logrotate_setup/chart/templates

logrotate_configmap.yaml:

{{- $root := . -}}
{{- $dot := . }}
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: logrotate-config
  namespace: {{ $dot.Values.appviewx_logrotate.namespace }}
data:
  mongodb.conf: |
    /appviewx/dependencies/logs/mongodb-*.log {
        rotate 5
        size 200M
        compress
        missingok
        notifempty
        copytruncate
        sharedscripts
        postrotate
           /bin/bash /appviewx/dependencies/properties/mongodb_logrotate.sh $(find /appviewx/dependencies/logs/ -iname "mongo*db*.log" -exec stat --format='%Y %n' "{}" + | sort -nr | head -n1 | awk '{gsub(/\.log$/, "", $2); print $2}' | xargs basename)
        endscript
      }
  heapfile.conf: |
    /appviewx/dependencies/logs/*.hprof {
        rotate 5
        missingok
        notifempty
      }
  gc.conf: |
    /appviewx/dependencies/logs/*.gc {
        rotate 5
        missingok
        notifempty
        copytruncate
        compress
      }
  istiologs.conf: |
    /appviewx/dependencies/logs/istio-logs/*.log {
        rotate 5
        missingok
        notifempty
        copytruncate
        compress
      }
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: mongo-logrotate
  namespace: {{ $dot.Values.appviewx_logrotate.namespace }}
data:
  mongodb_logrotate.sh: |-
{{ $root.Files.Get $dot.Values.appviewx_logrotate.script_mongo_local_path | indent 4 }}

Uninstall and reinstall the appviewx-logrotate-sa cronjob by the following commands:

cd <appviewx_kubernetes_path>/appviewx_logrotate/

helm uninstall appviewx-logrotate-sa

./run.sh
