RabbitMQ

Onboarding RabbitMQ

  1. Go to (Menu) > CERT+ > ADMINISTRATION > Device Management.
    By default, the ADC tab opens.
  2. Click the Server tab.
  3. Click the (Add) icon.
  4. Select RabbitMQ logo from the Vendors list.
    The RabbitMQ server configuration screen is displayed.
  5. In the Server Details section, enter details as mentioned below.
    Table 1. Server Details - Field Description Table
    Fields Description
    *Server name Enter the server name.
    *IP address/ FQDN Enter the valid IP address or FQDN
    Data center Select the desired data center from the dropdown list.
    Onboarding Group Select the onboarding group to assign the device.
    Note: Devices without an assigned group are automatically mapped to the Default group during migration, onboarding, and when edited without existing group mappings.
    Communication mode Select the required communication mode.

    The possible options are:

    • SSH
    • SSM
    *SSH Port Enter the SSH port number
    Note: This field is displayed only if the Communication mode selected is SSH.
    Cert sync Choose from any of the following:
    • Managed - AppViewX performs the config fetch operations and the certificates are discovered and managed in the inventory. CLM actions (push & bind, rollback etc.) can be performed on them. This option is disabled by default.
    • Monitored - AppViewX performs the config fetch operations and the certificates are downloaded in the inventory in the read-only state. CLM actions cannot be performed on them.
    • Ignored - AppViewX only performs the config fetch operations for the devices. There is no certificate discovery performed.
    *: Mandatory fields
  6. In the Credentials section, select/enter the details as follows.
    Table 2. Credentials - Field Description Table
    Fields Description
    *Credential Type Select the type of credential from the dropdown list that will be entered in the username and password field.
    • Manual entry
    • Credential List - AppViewX
    • Credential List - CyberArk
    • SSH
    *Username Enter the username.
    *Password Enter the password.
    *: Mandatory fields
  7. In the Vendor Specific Details section enter the details as follows.
    Table 3. Vendor Specific Details - Field Description Table
    Fields Description
    Config path Enter the path where the config file is saved.

    Example:etc/rabbitmq/rabbitmq.config
    *: Mandatory fields
  8. Click Save.

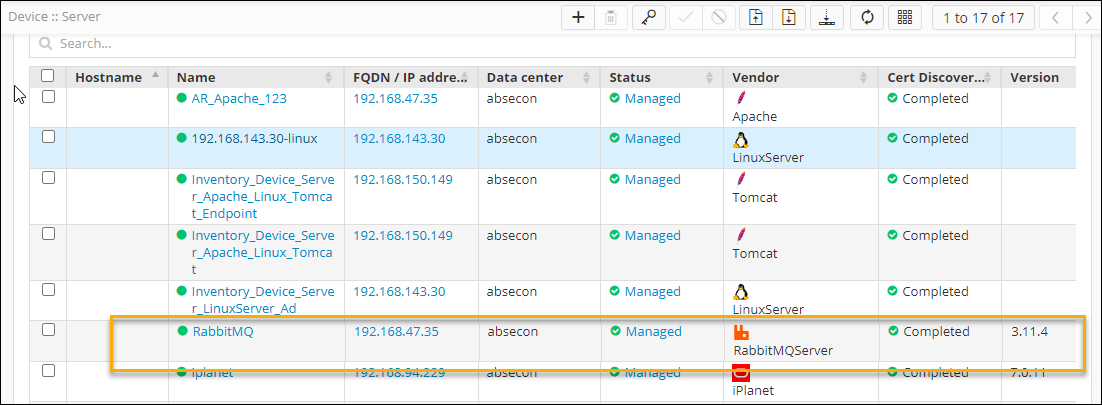

    The device is on-boarded successfully and the version number in the Version column will contain the value 3.11.4.

Validating the Device

After the device is onboarded successfully, follow the steps to validate the device communication with AppViewX:
  1. Go to ADMINISTRATION > Device Management.
    By default, the ADC tab opens.
  2. Click the Server tab.
    The Server Inventory page is displayed.
  3. Check that the device name appears in the inventory (Name column) with the specified status in the status column.
    The status column will have the value Managed/Monitored/Ignored if the connection is successful or displays Failed/Unresolved in case of failure.
  4. From the Status column, click the Managed/Monitored/Ignored/Failed/Unresolved.
    Device Status Log pop-up is displayed.
  5. Expand each value in the pop-up to know the Device communication, Device Version, Instance Information, and Certificate Discovery From Device.

What's Next

Once you have onboarded and validated the device connection, you are ready to proceed with the any of the following certificate actions:
