Modify F5 LTM VIP Advanced

This workflow modifies VIP along with its associated objects(Pool, Monitor, IRule, Profiles, Persistence, Snatpool)

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the F5 BIG-IP LTM category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Modify F5 LTM VIP Advanced workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Modify F5 LTM VIP Advanced :: FormBuilder page is displayed.
  5. Select the Datacenter, Device Name, and Virtual Server from the dropdown list, and then click the Get Virtual Server config button.
    The device details, such as SSL and Persistence, Rule, etc. are auto-populated.
  6. Update the SSL and Persistence, Rule, Protocol, Snat Pool, Mirror and Source-Port, Pool and Monitor, and/or Pool Members details as required.
  7. Click Submit.
    The Confirmation dialog box is displayed.
  8. To save this form so you can edit it later, click Save Draft and then click OK.
    The form will be saved as Open request under Request > My Request.

    OR

    To submit the form, click OK.

    The pre-validation starts automatically and reaches the Review stage.

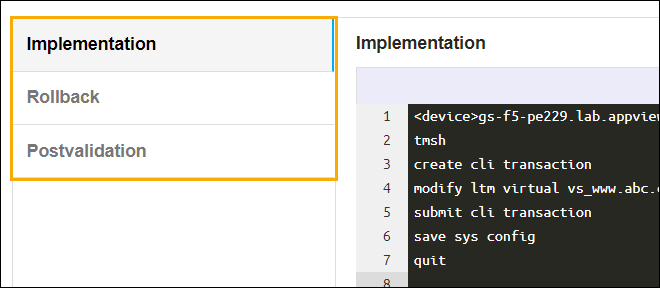

  9. Review the input data under the implementation, rollback, and postvalidation tabs.

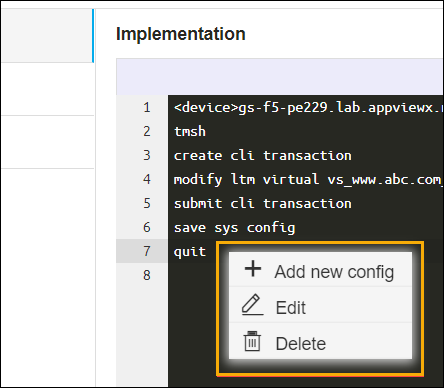

  10. (Optional) If you need to change any data at this stage, right click and select the required option.
  11. After the review, click Submit.
    Note: To stop running the workflow creation, click Cancel.
  12. Click Ok to continue the workflow creation.
    It takes a while to complete the post-validation.

    After the successful post-validation, the workflow is created and the email triggered to the configured email IDs.

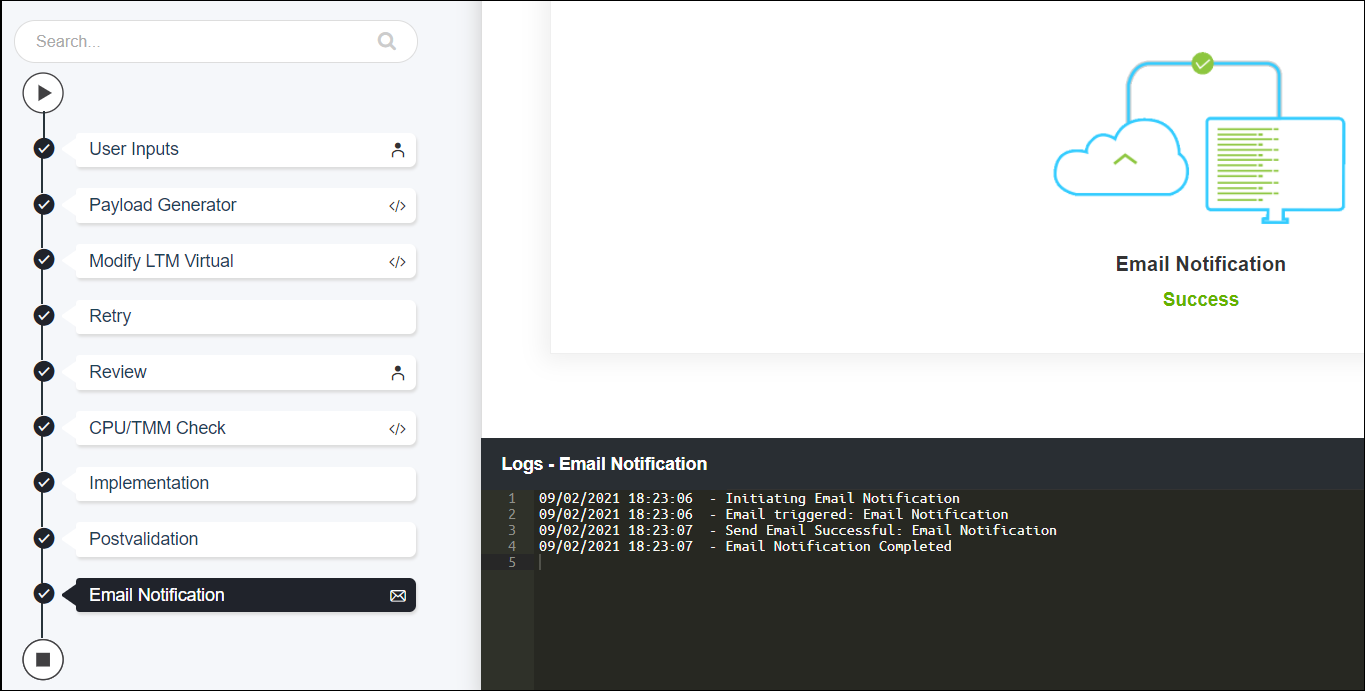

    Note: The validation stages are shown in the left side of the screen. To view any validation stage, click on the respective stage.
