Delete F5 LTM VIP - Basic

This workflow deletes VIP along with its associated objects (Pool, Monitor, IRule, Profiles, Persistence, Snatpool, Policy) by searching the VIP using the Destination IP and Port across Managed Devices in AppViewX.

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the F5 BIG-IP LTM category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Delete F5 LTM VIP - Basic workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Delete F5 LTM VIP - Basic :: FormBuilder page is displayed.

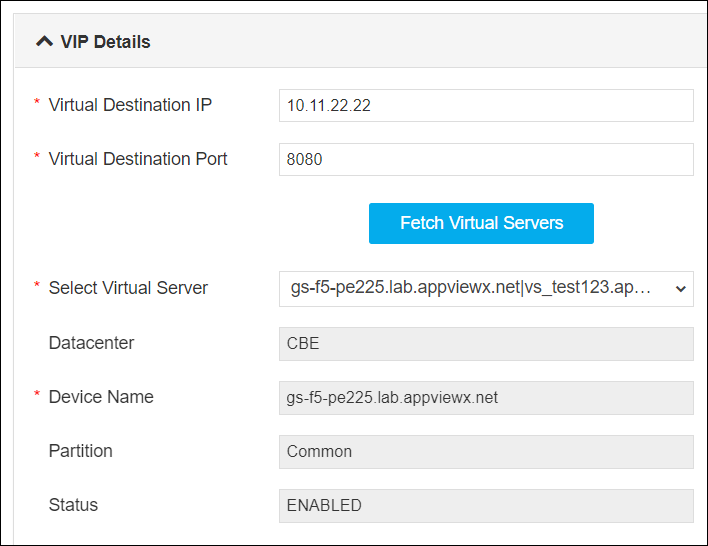

  5. Enter the Virtual Destination IP and Virtual Destination Port, and then click Fetch Virtual Servers.
    The virtual server details are fetched for the given Virtual Destination IP and Virtual Destination Port and auto-populated in the rest of the fields.
  6. Click Submit.
    The Confirmation dialog box is displayed.
  7. To save this form so you can edit it later, click Save Draft and then click OK.
    The form will be saved as Open request under Request > My Request.

    OR

    To submit the form, click OK.

    The validation starts automatically and reaches the Review stage.
    Note:
    • If there is any failure at this stage, start a new request by providing the correct data.
    • Alternatively, select the failed request and clone it. Update the correct input data in the form input, and submit the workflow again.

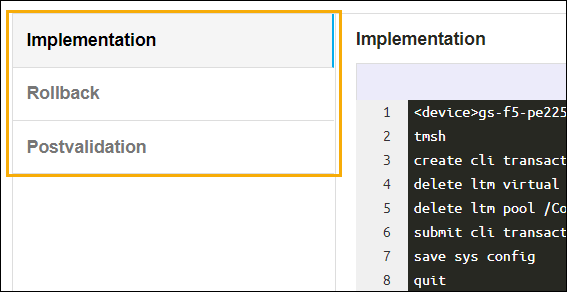

  8. Review the input data under the implementation, rollback, and postvalidation tabs.

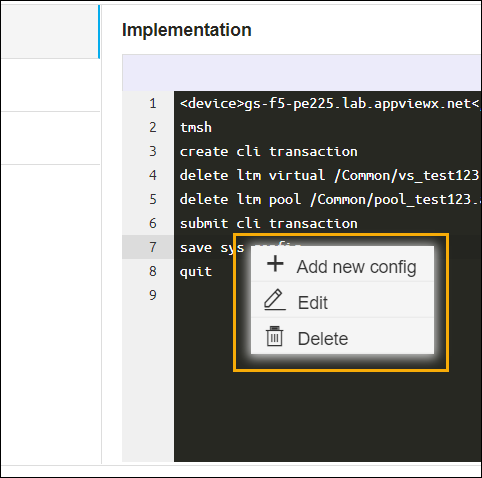

  9. (Optional) If you need to change any data at this stage, you can update by clicking the right mouse button.
  10. After the review, click Submit.
    The Confirmation dialog box is displayed.
  11. To continue with the workflow creation, click Ok
    OR

    To abort the workflow creation, click Cancel.

    It takes a while to complete the post-validation.

    After the post-validation is successful, the workflow is created and an email triggered to all the configured email IDs.

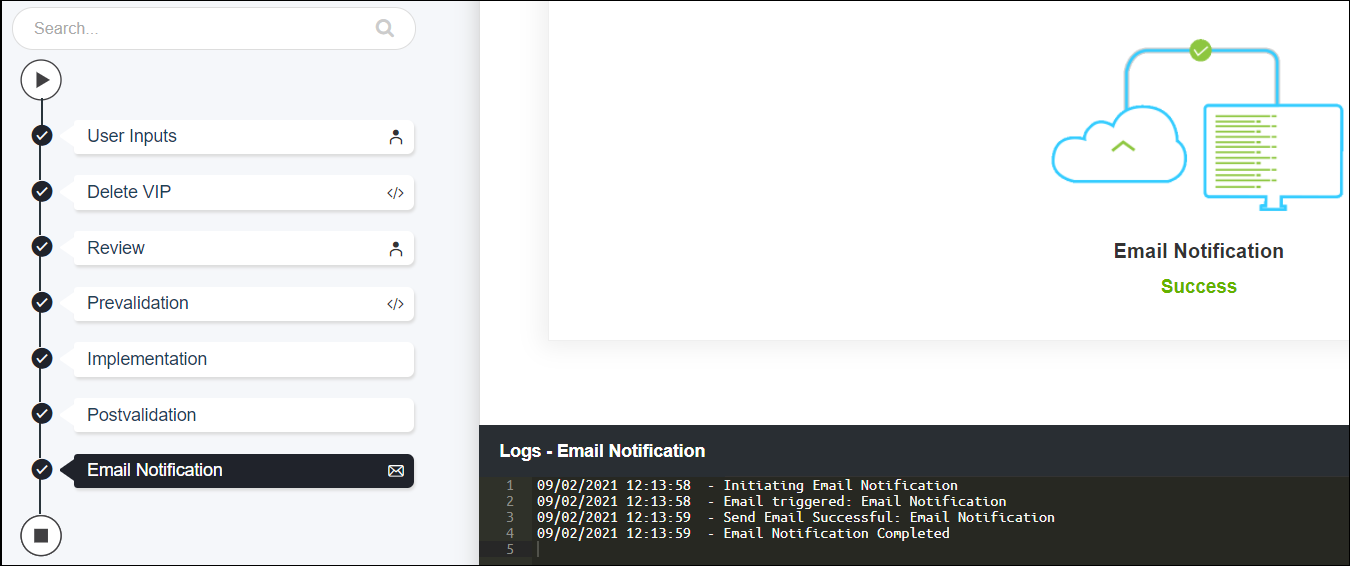

    Note: The validation stages are shown in the left side of the screen. To view a validation stage, click on the respective stage.
