Disable Unused F5 LTM VIP

This workflow disables VIPs that are unused for ‘n’ number of days.

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the F5 BIG-IP LTM category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Disable Unused F5 LTM VIP workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Disable Unused F5 LTM VIP :: FormBuilder page is displayed.
  5. Enter/select the Device Details.
    Table 1. Device Details Section - Field and Description Table
    Field Description
    *Datacenter Displays the list of datacenters of the devices, which are created in the Device Inventory. Select the datacenter of a device from the drop-down option for which this request is to be created. For the devices which are created without a datacenter in the Device Inventory, select the datacenter as None.
    *Device Name Displays the list of devices associated with the selected datacenter. If the datacenter is selected as None, the devices that are created without datacenter details are listed. Select the desired devices from the drop-down option.
    Note: Selecting multiple devices is possible.
    No of Days Enter the no. of days to disable the virtual server.
  6. Click Submit.
    The Confirmation dialog box is displayed.
  7. To save this form so you can edit it later, click Save Draft and then click OK.
    The form will be saved as Open request under Request > My Request.

    OR

    To submit the form, click OK.

    The workflow is successfully completed.

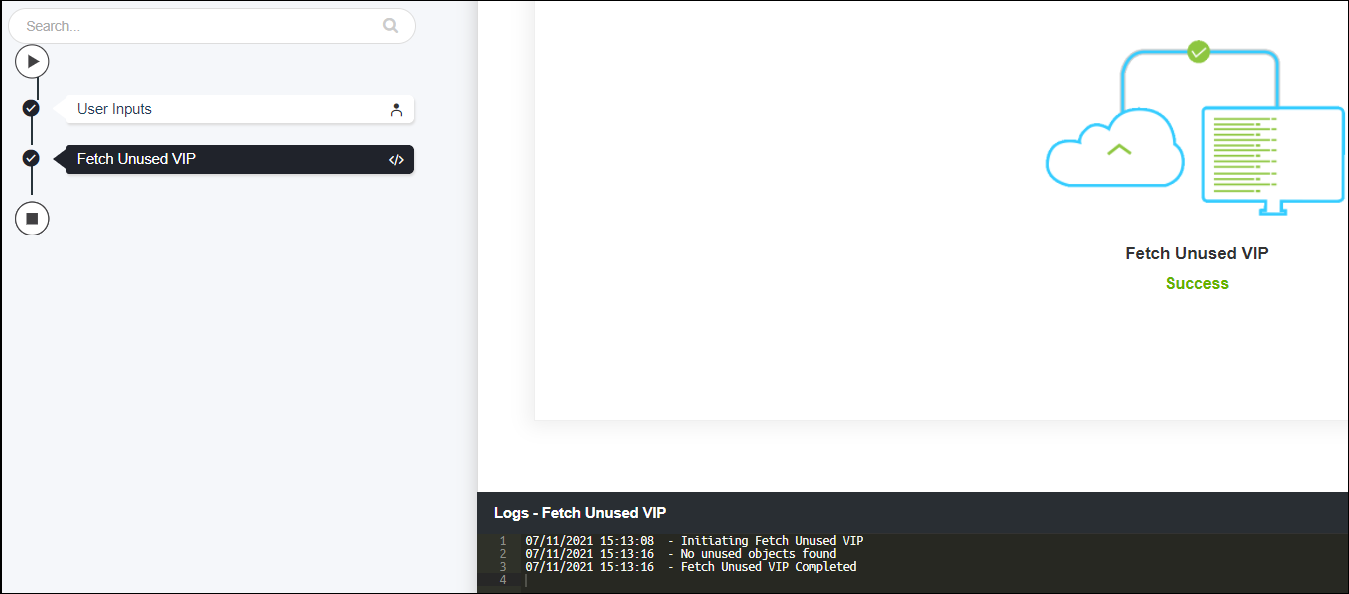

    Note: The stages of the request are shown in the left side of the screen. To view a particular stage of the request, click the respective stage.
