Manage F5 LTM Pool members with Service Now

This workflow selects VIP in a device and modifies (add/delete) associated pool members.

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the F5 BIG-IP LTM category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Manage F5 LTM Pool members with Service Now workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Manage F5 LTM Pool members with Service Now :: FormBuilder page is displayed.

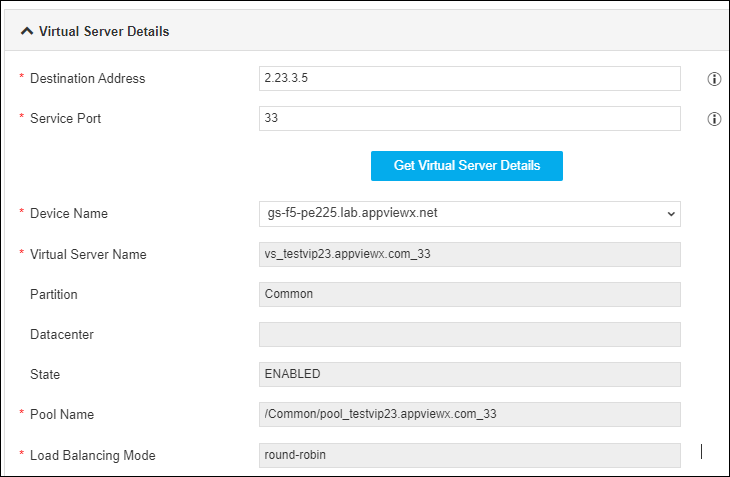

  5. Enter a valid IP address and port number in the Destination Address and Service Port field in the Virtual Server Details section.
  6. Click Get Virtual Server Details.
    The devices are loaded.

    The devices are fetched for the given destination address.

  7. Select the device from the Device Name dropdown list.
    The virtual server details and pool details are fetched for the selected device.
  8. Update the Pool Member Details as required.
  9. Update the Change Management details as required.
  10. Click Submit.
    The Confirmation dialog box is displayed.
  11. To save this form so you can edit it later, click Save Draft and then click OK.
    The form will be saved as Open request under Request > My Request.

    OR

    To submit the form, click OK.

    The pre-validation starts automatically and reaches the Review stage.

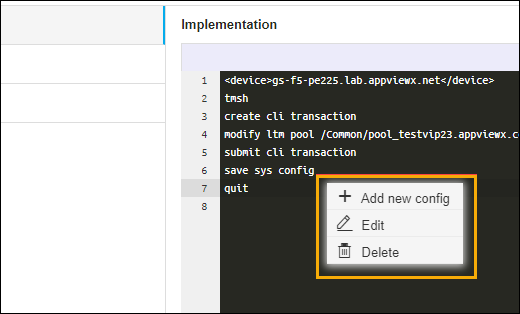

  12. Review the input data under the implementation, rollback, and postvalidation tabs.
  13. (Optional) If you need to change any data at this stage, right click and select the required option.
  14. After the review, click Submit.
    The Confirmation dialog box is displayed.
    Note: To stop running the workflow creation, click Cancel.
  15. Click Ok to continue the workflow creation.
    It takes a while to complete the post-validation.

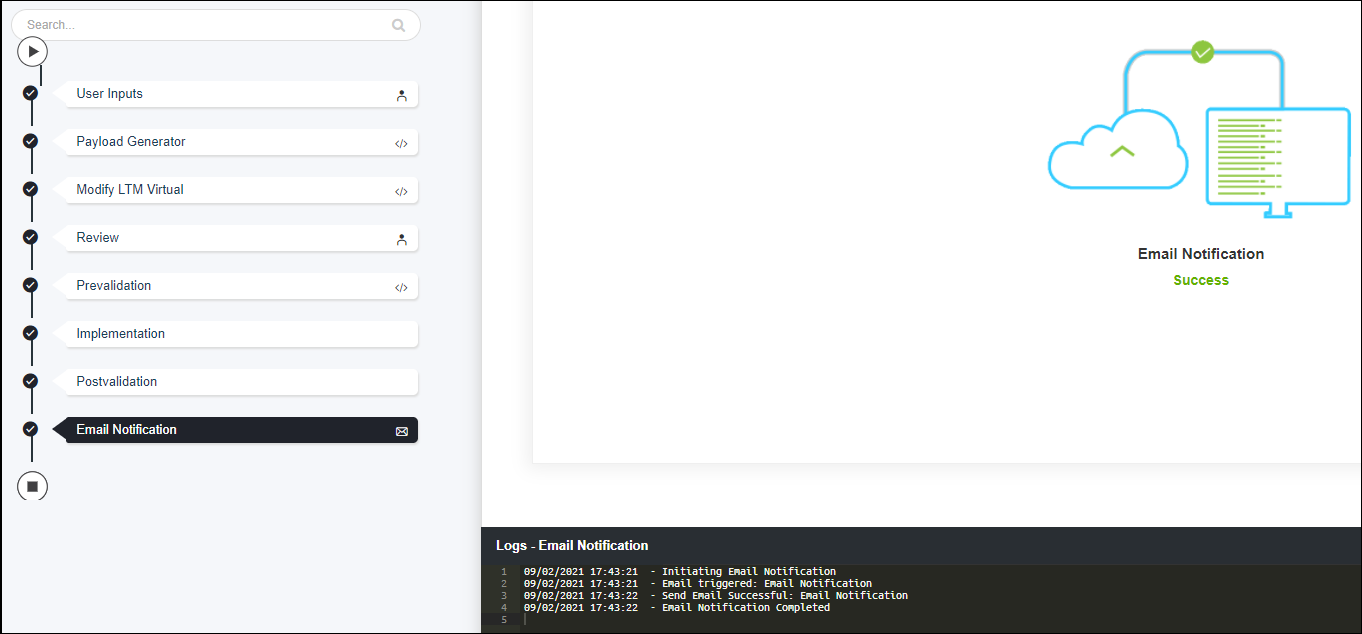

    After the successful post-validation, the workflow is created and the email triggered to the configured email IDs.

    Note: The validation stages are shown in the left side of the screen. To view any validation stage, click on the respective stage.
