Delete F5 LTM VIP - Advanced

This workflow deletes VIP along with its associated objects (Pool, Monitor, IRule, Profiles, Persistence, Snatpool, Policy) and multi-select the associated object types to consider for deletion.

To run this workflow:

  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the F5 BIG-IP LTM category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Delete F5 LTM VIP - Advanced workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Delete F5 LTM VIP - Advanced :: FormBuilder page is displayed.

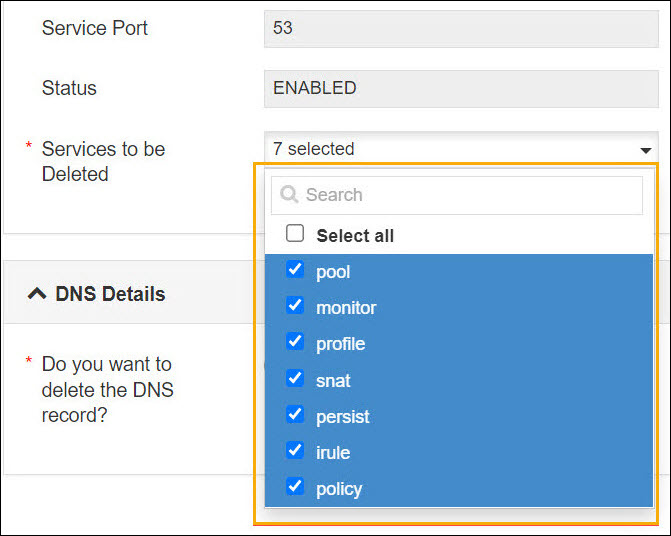

  5. From their respective dropdown lists, select the Datacenter, the Device Name, the Partition, and the Virtual Server.
    The services that are associated with the selected device are populated in the Services to be Deleted dropdown list.
  6. Select all the services of the device or select/clear only the services of the devices that are to be deleted.
  7. (Optional) Select the DNS details of the device, if DNS details of the device are required to be deleted.
  8. Click Submit.
    The Confirmation dialog box is displayed.
  9. To save this form so you can edit it later, click Save Draft and then click OK.
    The form will be saved as Open request under Request > My Request.

    OR

    To submit the form, click OK.

    The pre-validation starts automatically and reaches the Disable Review stage.
    Note:
    • If there is any failure at this stage, start a new request by providing the correct data.
    • Alternatively, select the failed request and clone it. Update the correct input data in the form input, and submit the workflow again.

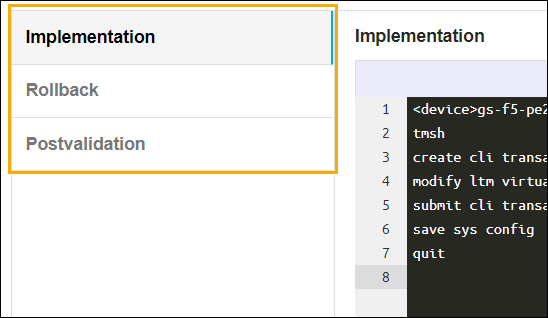

  10. Review the input data under the implementation, rollback, and postvalidation tabs.

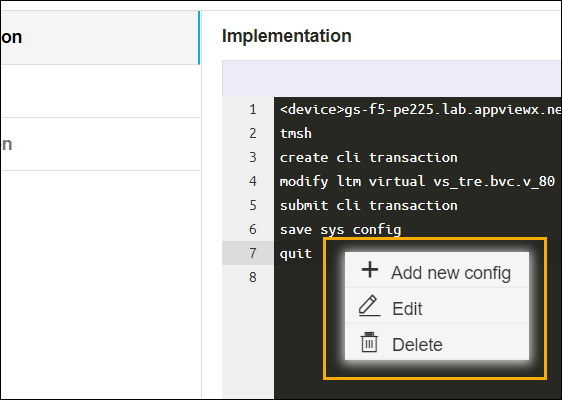

  11. (Optional) If you need to change any data at this stage, you can update by clicking the right mouse button.
  12. After the review, click Submit.
    The Confirmation dialog box is displayed.
  13. To continue with the workflow creation, click Ok
    OR

    To abort the workflow creation, click Cancel.

    It takes a while to complete the post-validation.

    After the post-validation is successful, the workflow is created and an email triggered to all the configured email IDs.

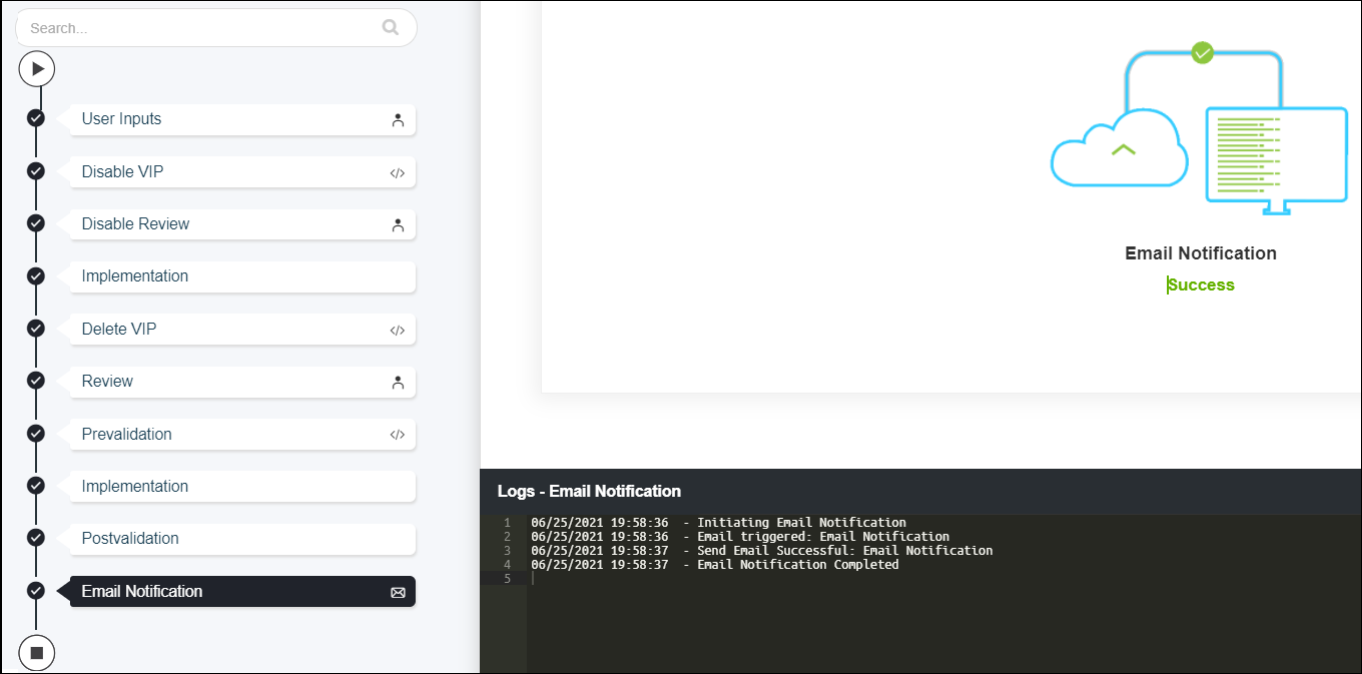

    Note: The validation stages are shown in the left side of the screen. To view a validation stage, click on the respective stage.
