Troubleshooting

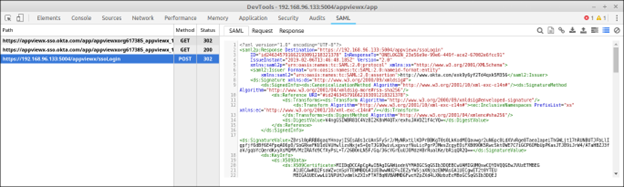

Enable the SAML extension in the browser. While performing the login, enable the DEV tools and open the SAML tab. During the operation, the SAML assertions are passed in the HTTP headers. Similar to the external authentication configuration, if the role name passed in the SAML assertion matches the role name in the AppViewX database, the login will be successful.
Sample Configuration of SAML Assertion

Number of SAML Assertions in HTTP Headers
Sample SAML Assertion

<?xml version="1.0" encoding="UTF-8"?>
<saml2p:Response Destination="https://192.168.x.x:31443/appviewx/ssoLogin"
    ID="id246345791662193091218321378" InResponseTo="ONELOGIN_23e56e9e-99e6-449f-ace2-67002e6fcc91"
    IssueInstant="2019-02-06T13:46:48.185Z" Version="2.0"
    xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <saml2:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity"
        xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">http://www.okta.com/exk9y6yf2Td4qxk5M356</saml2:Issuer>
    <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
        <ds:SignedInfo><ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/><ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
            <ds:Reference URI="#id246345791662193091218321378">
                <ds:Transforms><ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
                    <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"><ec:InclusiveNamespaces PrefixList="xs" xmlns:ec="http://www.w3.org/2001/10/xml-exc-c14n#"/></ds:Transform>
                </ds:Transforms><ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
                <ds:DigestValue>V4ngGSIWBR81C4VzBI2K8nM4QTxrexhuJAVDZ1f4cYQ=</ds:DigestValue>
            </ds:Reference>
        </ds:SignedInfo>
        <ds:SignatureValue>ZBrsl0pRRB8gaqYHnoyjISEsA8s1cUAn5Fy5rJ/MyNRxtLlKDPrBBKgT0s0LkKodMEQavwgr2uN6pc0LdXVvRge8Taea1apeiThGWLjt17hRUNBUTJFbLlIgpfjf6dBf6E4FpqAO6p0/SbGRkeFKU1dUVUHwlizsNxjeS+QoTJG9OwivLxgxvzfNuLicPgrPJMesZcgyEOiFXB09OK5RwcSktOWE7C7iGCP6OMbUpPKasJTJ89iJrW4/ATaHBZJ3faV/gqbYcQerdKxyXsMQMM/MzIRAfd9CfXyPsL+T/26BOnLN5F/Gq/36cYGrEuUJ0MdzHBrRualKe/bRiqQR2Q==</ds:SignatureValue>
        <ds:KeyInfo>
            <ds:X509Data>
                <ds:X509Certificate>MIIDqDCCApCgAwIBAgIGAWiodnVYMA0GCSqGSIb3DQEBCwUAMIGUMQswCQYDVQQGEwJVUzETMBEG
                    A1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsGA1UECgwET2t0YTEU
                    MBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGFwcHZpZXd4LXNzbzEcMBoGCSqGSIb3DQEJ
                    ARYNaW5mb0Bva3RhLmNvbTAeFw0xOTAyMDEwOTQ4MjJaFw0yOTAyMDEwOTQ5MjJaMIGUMQswCQYD
                    VQQGEwJVUzETMBEGA1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsG
                    A1UECgwET2t0YTEUMBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGFwcHZpZXd4LXNzbzEc
                    MBoGCSqGSIb3DQEJARYNaW5mb0Bva3RhLmNvbTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoC
                    ggEBAIc22r1CR7gbMVcyYnRjkDLGRwHJ1zhQkWTVoEZdbk/KTHwVMXHpNinkOhUcxbzfHePBf6wx
                    9jEThiNvvHZVIg6ZktYotG9DF/FF0fMxhzfweqR5yt27ihiuVTeGT8GjNcXwOoyzJdrDuZg27ybI
                    jriqGPKrLiwrrot54R1LP2VclM0FdIOWdOoU1N5IEnFAd+2UECZZLQ0gJrDpFcbDisuhmp5bTKUS
                    1RpIxarNeacH2klRY4efeqQdVgaghgs+zMN44iz+YGs8uELElKErOabEtoYiTJmsVnqEcs8fUvKx
                    LLdZevPhh89v0MJiZI9gTjjt/f9N+NEUzyJsHfxqmnUCAwEAATANBgkqhkiG9w0BAQsFAAOCAQEA
                    RZo42X1gDE3d9xnftXr2LoUItdTQeVoFdkIJIqJla21kDRCwHis2OvuFwOW+QdUeh5uUIjGxbhaA
                    cQIeJUvuD1aEK/ynUDKGA0jvdLR7IbwTK69i7c19F7pti6b5sq8yjl5fOavit1N3INIzZdkrPlP1
                    hJnKcjOSVyMPv8a7rDXOtXxDoZgi+pWj0qlp4E9tKOrWJgKdjS8j03ulWwtOx4Jak4yYueaY8nH1
                    +amyE6w96Qm6ScEGLcxXzboczS7BMjZ0M4Mr6zXOTS8pU+AX6NBmdNkdwO9JSeXm3U6lRWv59jet
                    qMeKqf4aKRg+oqbw9hkH3X6qT69AeEiPz6YPmQ==</ds:X509Certificate>
            </ds:X509Data>
        </ds:KeyInfo>
    </ds:Signature>
    <saml2p:Status xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol"><saml2p:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success"/></saml2p:Status>
    <saml2:Assertion ID="id24634579166299789832980116" IssueInstant="2019-02-06T13:46:48.185Z"
        Version="2.0" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion"
        xmlns:xs="http://www.w3.org/2001/XMLSchema">
        <saml2:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity"
            xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">http://www.okta.com/exk9y6yf2Td4qxk5M356</saml2:Issuer>
        <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
            <ds:SignedInfo><ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/><ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
                <ds:Reference URI="#id24634579166299789832980116">
                    <ds:Transforms><ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
                        <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"><ec:InclusiveNamespaces PrefixList="xs" xmlns:ec="http://www.w3.org/2001/10/xml-exc-c14n#"/></ds:Transform>
                    </ds:Transforms><ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
                    <ds:DigestValue>hnTKZKSyxKC6WGZTK7iD+iQv4+nj/91eX8vhrkyi+1k=</ds:DigestValue>
                </ds:Reference>
            </ds:SignedInfo>
            <ds:SignatureValue>OtgpFXWkIIO0hSZiHpAdTDBg6v11+/unBzyPOFSBl+0+b2i22s3lHtzCqsEVp4Xn9J1XoL12tCr/uhg7b4kxcTslMsAYFVQipUZLKanEIaEOSv2tnjQuAoE3fBMTm2d/3+nlXofyGiOMEY5OrFaGGjC9ZAMk2qJDAEzjZHhjOyooLQItzDocfVFvXeFSl/bAaDNSRPYT0B9dXsGpjpUlA6CMpmJXSxgAPwogaM20d48o7iKi3THjTgm1L2z9nntQajfaRERkoTfAV0sGE6iKlUAhWmtMkUDOUXbMeBXo61cpQ5A/WsfxpbZKhJkDes/9lzcDoPkI7w+TshJnQMQA3A==</ds:SignatureValue>
            <ds:KeyInfo>
                <ds:X509Data>
                    <ds:X509Certificate>MIIDqDCCApCgAwIBAgIGAWiodnVYMA0GCSqGSIb3DQEBCwUAMIGUMQswCQYDVQQGEwJVUzETMBEG
                        A1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsGA1UECgwET2t0YTEU
                        MBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGFwcHZpZXd4LXNzbzEcMBoGCSqGSIb3DQEJ
                        ARYNaW5mb0Bva3RhLmNvbTAeFw0xOTAyMDEwOTQ4MjJaFw0yOTAyMDEwOTQ5MjJaMIGUMQswCQYD
                        VQQGEwJVUzETMBEGA1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5jaXNjbzENMAsG
                        A1UECgwET2t0YTEUMBIGA1UECwwLU1NPUHJvdmlkZXIxFTATBgNVBAMMDGFwcHZpZXd4LXNzbzEc
                        MBoGCSqGSIb3DQEJARYNaW5mb0Bva3RhLmNvbTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoC
                        ggEBAIc22r1CR7gbMVcyYnRjkDLGRwHJ1zhQkWTVoEZdbk/KTHwVMXHpNinkOhUcxbzfHePBf6wx
                        9jEThiNvvHZVIg6ZktYotG9DF/FF0fMxhzfweqR5yt27ihiuVTeGT8GjNcXwOoyzJdrDuZg27ybI
                        jriqGPKrLiwrrot54R1LP2VclM0FdIOWdOoU1N5IEnFAd+2UECZZLQ0gJrDpFcbDisuhmp5bTKUS
                        1RpIxarNeacH2klRY4efeqQdVgaghgs+zMN44iz+YGs8uELElKErOabEtoYiTJmsVnqEcs8fUvKx
                        LLdZevPhh89v0MJiZI9gTjjt/f9N+NEUzyJsHfxqmnUCAwEAATANBgkqhkiG9w0BAQsFAAOCAQEA
                        RZo42X1gDE3d9xnftXr2LoUItdTQeVoFdkIJIqJla21kDRCwHis2OvuFwOW+QdUeh5uUIjGxbhaA
                        cQIeJUvuD1aEK/ynUDKGA0jvdLR7IbwTK69i7c19F7pti6b5sq8yjl5fOavit1N3INIzZdkrPlP1
                        hJnKcjOSVyMPv8a7rDXOtXxDoZgi+pWj0qlp4E9tKOrWJgKdjS8j03ulWwtOx4Jak4yYueaY8nH1
                        +amyE6w96Qm6ScEGLcxXzboczS7BMjZ0M4Mr6zXOTS8pU+AX6NBmdNkdwO9JSeXm3U6lRWv59jet
                        qMeKqf4aKRg+oqbw9hkH3X6qT69AeEiPz6YPmQ==</ds:X509Certificate>
                </ds:X509Data>
            </ds:KeyInfo>
        </ds:Signature>
        <saml2:Subject xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
            <saml2:NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress">[email protected]</saml2:NameID>
            <saml2:SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer"><saml2:SubjectConfirmationData InResponseTo="ONELOGIN_23e56e9e-99e6-449f-ace2-67002e6fcc91"
                NotOnOrAfter="2019-02-06T13:51:48.185Z" Recipient="https://192.168.x.x:31443/appviewx/ssoLogin"/></saml2:SubjectConfirmation>
        </saml2:Subject>
        <saml2:Conditions NotBefore="2019-02-06T13:41:48.185Z" NotOnOrAfter="2019-02-06T13:51:48.185Z"
            xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
            <saml2:AudienceRestriction>
                <saml2:Audience>https://192.168.x.x:31443/appviewx/</saml2:Audience>
            </saml2:AudienceRestriction>
        </saml2:Conditions>
        <saml2:AuthnStatement AuthnInstant="2019-02-06T13:46:46.836Z"
            SessionIndex="ONELOGIN_23e56e9e-99e6-449f-ace2-67002e6fcc91"
            xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
            <saml2:AuthnContext>
                <saml2:AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport</saml2:AuthnContextClassRef>
            </saml2:AuthnContext>
        </saml2:AuthnStatement>
        <saml2:AttributeStatement xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">
            <saml2:Attribute Name="EmailId" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic">
                <saml2:AttributeValue xmlns:xs="http://www.w3.org/2001/XMLSchema"
                    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">[email protected]</saml2:AttributeValue>
            </saml2:Attribute>
            <saml2:Attribute Name="FirstName" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic">
                <saml2:AttributeValue xmlns:xs="http://www.w3.org/2001/XMLSchema"
                    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">saml</saml2:AttributeValue>
            </saml2:Attribute>
            <saml2:Attribute Name="LastName" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic">
                <saml2:AttributeValue xmlns:xs="http://www.w3.org/2001/XMLSchema"
                    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">appviewx</saml2:AttributeValue>
            </saml2:Attribute>
            <saml2:Attribute Name="NameID" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic">
                <saml2:AttributeValue xmlns:xs="http://www.w3.org/2001/XMLSchema"
                    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">[email protected]</saml2:AttributeValue>
            </saml2:Attribute>
            <saml2:Attribute Name="Mobile" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic">
                <saml2:AttributeValue xmlns:xs="http://www.w3.org/2001/XMLSchema"
                    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">0</saml2:AttributeValue>
            </saml2:Attribute>
            <saml2:Attribute Name="Roles" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic">
                <saml2:AttributeValue xmlns:xs="http://www.w3.org/2001/XMLSchema"
                    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">oktarole</saml2:AttributeValue>
            </saml2:Attribute>
        </saml2:AttributeStatement>
    </saml2:Assertion>
</saml2p:Response>
The data in bold contains the attributes passed to AppViewX for a successful login. If this data is not passed in assertion, the assertion must be revisited.
Vendors Certified with AppViewX

AppViewX has been certified with the below SAML 2.0 enabled SSO vendors:
Okta
OneLogin
ADFS
Forgerock
Idaptive
Azure
PingIdentity
