Building a Custom Dashboard

You can build a custom dashboard to display a specific set of reports.
  1. On the Dashboard inventory page, from the top right corner of the screen, click (Add) icon in the command bar.

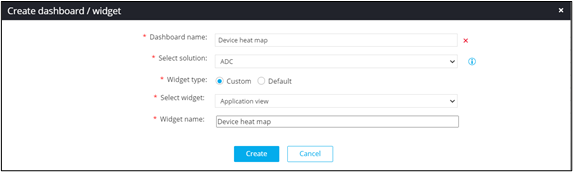

    The Create dashboard / widget pop-up window is displayed.
  2. Enter or select the required field information.
    The following table describes the field description to create a custom dashboard:
    Field Description
    *Dashboard name Enter the name of the dashboard.
    *Select solution ADC is the default selection. You can add widgets belonging to multiple solutions to this dashboard.
    *Widget type Select the type of widget as:
    • Custom: Choose this option to build a customized widget.
    • Default: Choose this option to select the default widget.
    *Select widget Select an required widget from the customized widgets in the dropdown.
    *Widget name Enter the name of the widget.
    * : Mandatory fields
  3. Click Create.
    A new dashboard is created. You can now pin reports and widgets to this dashboard as per your requirement.
