Thycotic

Thycotic Secret Server is an enterprise-grade Privileged Access Management (PAM) solution designed to secure, manage, and audit privileged accounts, credentials, and secrets.

Prerequisites for Integrating Thycotic with AppViewX

Ensure the Thycotic server is correctly set up before proceeding with the integration.

For links to the Thycotic secret server documentation, see the References section.

Configuring Thycotic Secret Integration Settings

To configure integration settings for the Thycotic Secret vault:
  1. Go to Platform > VAULT & SECURITY > PAM.
    The PAM page is displayed.
  2. Click the + (Add credential) button.
  3. On the Add credential page, select Thycotic from the left menu.
  4. From the top right corner of the page, click Thycotic API Settings.

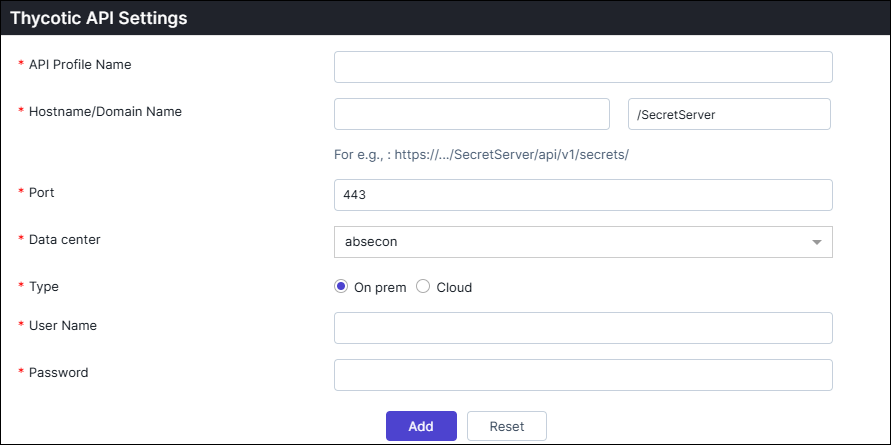

    The Thycotic API Settings pop-up window is displayed.
    Table 1. Field descriptions for Thycotic API Settings
    Field Description
    *API Profile Name Enter a unique name to identify the API profile in AppViewX.
    *Hostname/Domain Name Enter the Hostname of the Thycotic Secret Server if it is hosted in an on-prem environment or the Domain name can be include or exclude in the user name during synchronization of the Thycotic Secret Server if it is the cloud version.

    https://<Hostname>:<Port><PathURI>/api/v1/secrets

    The default value for <pathURI>, /SecretServer, is displayed in the text field next to the hostname field. Edit this value as needed. If the <pathURI> parameter is not provided, the default value /SecretServer will be used automatically.
    *Port Enter the port number used to connect to the API.
    *Type Choose the deployment type of the instance: On-prem or Cloud environment.
    *Data center Select the appropriate data center where the Thycotic components are located or managed. It will be used to perform the communication.
    *Username Enter the username required to access the API.
    *Password Enter the password that pairs with the user name for API authentication.
    *: Mandatory fields
    Note: You can add multiple Thycotic Secret Servers as different Profiles. Each Thycotic Secret Sever will be added to the Thycotic API settings page.
  5. Once the details are entered, click Add.
  6. To modify the details of any profiles, click name of profile, modify the details and click Modify.
  7. To delete any profile, click (Delete) icon in Action column of profiles.
  8. Close the Thycotic API Settings pop-up window.
    The Thycotic Credential Details page is displayed.

Adding Thycotic Secret Credential Details

To configure credential details for the Thycotic vault:

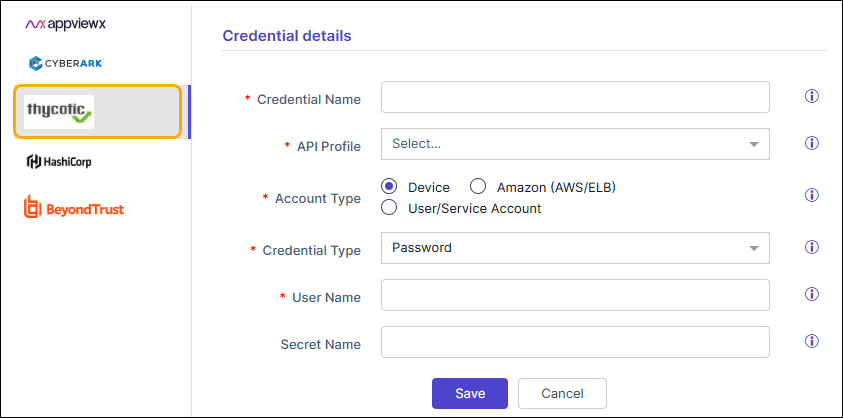

  1. On the Credential Details page for Thycotic, enter the required field information.
    Table 2. Field descriptions for Credential details
    Field Description
    *Credential name Enter a unique name to identify the credential in AppViewX.
    *API Profile Select the appropriate Thycotic Server profile. You can configure multiple profiles in the API settings for managing secrets across environments, regions, or specific use cases.
    *Account Type The "Secret Type - Device" works if the Thycotic secret contains both the username and device name. The Machine field in the Thycotic secret must match the device IP/FQDN in AppViewX. This option is beneficial if you have multiple secrets in your Thycotic vault that share a username but have different device names associated with them. You can add a single secret to AppViewX with the username, and when fetching the credential from the vault, AppViewX will automatically send the corresponding device name or IP along with the username to retrieve the correct credentials. For this option to work, the device name or IP in the secret must match the device name or IP used in AppViewX. If the secret in the Thycotic vault does not have a device name associated with it, this option will not work, and you will need to use the "User/Service Account" service type instead.

    For example, you can use Thycotic secret templates such as "Windows Account" or "Unix Account (SSH)" that require a device name.

    The "Secret Type - Amazon (AWS/ELB)" is useful for adding Amazon credentials to AppViewX. You can use the Thycotic secret template "Amazon IAM Key" with this option.

    The "Secret Type - User/Service Account" is beneficial if you have a common secret in your Thycotic vault that works across multiple devices. This type of Thycotic secret template does not have a device name associated with it because it works across multiple devices. Therefore, when fetching the credential, AppViewX will only send the username of the credential to the Thycotic vault.

    For example, you can use Thycotic secret templates such as "Active Directory Account," "Azure AD Account," or "CISCO Account (SSH)," which do not require a device name in the secret template.
    Credential Type Select the credential type:
    • Password: to authenticate using the account password.
    • Private Key: to authenticate using the private key and passphrase.
    User Name Enter the username associated with the secret in Thycotic, if you selected the Account Type as Device or User/Service Account
    AWS IAM Username Enter the AWS IAM username as added in Thycotic, if you selected the Secret Type as Amazon.
    Secret Name Enter a secret name. It is used to identify credentials when multiple accounts share the same User Name.
    *: Mandatory fields
  2. Click Save.
