Key Rotation Settings

HSM key rotation involves the regular replacement of cryptographic keys used by a Hardware Security Module (HSM) to bolster security and safeguard sensitive data. This process includes generating new keys and securely substituting the current ones.

Accessing Rotation Settings

New Menu Old Menu
In the Platform module, from the navigation pane on the left, under VAULT & SECURITY, select Rotation Settings.

The Settings :: Key Rotation page is displayed.
  1. From the main navigation menu, select Settings > General > Key Rotation.
  2. The Settings :: Key Rotation page is displayed.
For more information on how to switch between menus, click here.

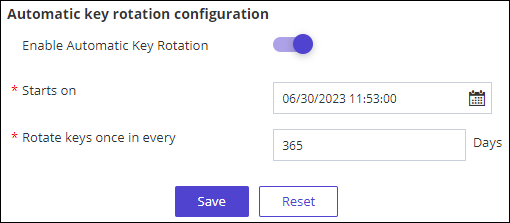

Automatic Key Rotation Configuration

"Automatic key rotation" configuration involves the automatic rotation of cryptographic keys at predefined intervals, ensuring the automatic replacement of encryption keys without manual intervention.

To configure the Automatic key rotation settings:
  1. On the Settings :: Key Rotation page, from the left corner of the screen, navigate to the Automatic key rotation configuration.
  2. Enable the toggle to Enable Automatic Key Rotation.
    Note: On selecting Enable Automatic Key Rotation, the *Starts on and *Rotate keys once in every attribute appears.
    Table 1. Field descriptions for Automatic Key rotation configuration
    Field Description
    * Starts on This field provides a calendar option to specify the start date and time of the key rotation.
    * Rotate keys once in every This field enables you to define the rotation frequency of keys in terms of the number of days.
    * : Mandatory fields
  3. Click Save.

    A Confirmation message indicating is displayed on the screen.

On Demand Key Rotation

"On Demand Key Rotation" is a process of manually rotating cryptographic keys as necessary, providing flexibility in key management based on specific requirements. This approach empowers organizations to initiate key rotation at any time to meet their needs.
  1. On the Settings :: Key Rotation page, from the right corner of the screen, navigate to the On Demand Key Rotation.
  2. Click Rotate Key to rotate the key immediately.

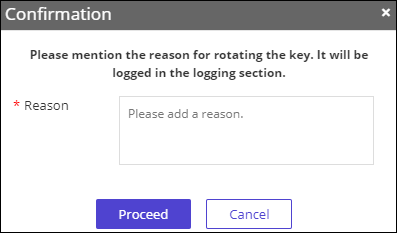

    A pop-up window of Confirmation is displayed.
  3. Enter the Reason for rotating the key. It will be logged in the logging section.
  4. Click Proceed.

    A Confirmation message indicating Key rotation triggered successfully is displayed on the screen.
