Thales GPN

• Ensure the HSM service/pod is up and running before integrating HSM with AppViewX.
  • If on-prem, use avx_platform_hsm as plugin
  • If SaaS, use avx_platform_hsm & all Cloud Connector instances for HSM DC.
• The Alien and RPM packages should be installed in the environment.
• Communication to the HSM and AppViewX nodes in the case of and the cloud connector in the case of should be available to integrate with AppViewX. The port details are as follows:
  • Port 443: HTTPS access for secure web-based management interfaces.
  • Port 1792: Used for key management and cryptographic operations via the Key Management Utility (KMU).
  • Port 9001: Additional port used for HSM management and operations.
• Users should have either root access or sudo access.
• HSM slot and PIN should be available to establish a connection between AppViewX and HSM.
• From the AppViewX perspective, AppViewX has prepared a sample agent installation guide for Thales. Please refer to it for guidance.

To establish communication between the HSM and AppViewX, the installation of the Thales Luna agent is required. The following steps outline the process followed in our lab setup using LunaClient_10.4.0-417_Linux.zip.

1. Copy the LunaClient.zip file to the appviewx server and unzip it.
2. Go to LunaClient location

   cd <untarred Luna-client-path>/64/

3. Execute the chmod command as shown below:

   sudo chmod 755 install.sh

   sudo chmod 755 common

4. Run the install.sh file using the command given below:

   sudo ./install.sh

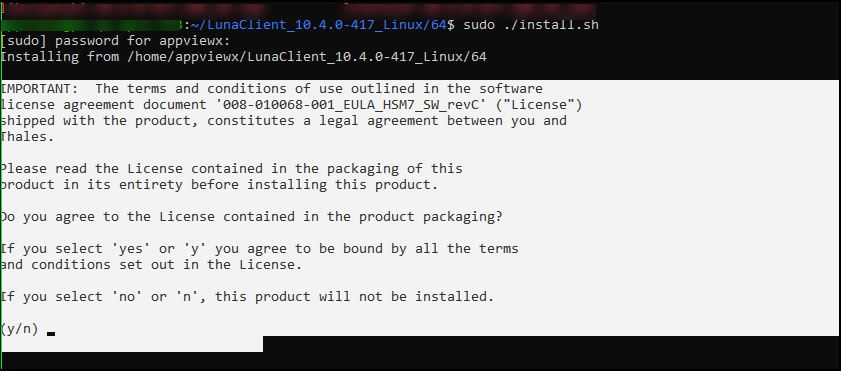

   You will be prompted with the question "Do you agree to the License contained in the product packaging?", enter Y or Yes to proceed further.

   (Optional step) In some Luna packages you may also be prompted with "Enter the install directory as - "/usr"", enter usr to proceed further.

5. When prompted to "Choose the Luna products to be installed", select Luna Network HSM, i.e. Enter the number 1, then enter n (next).

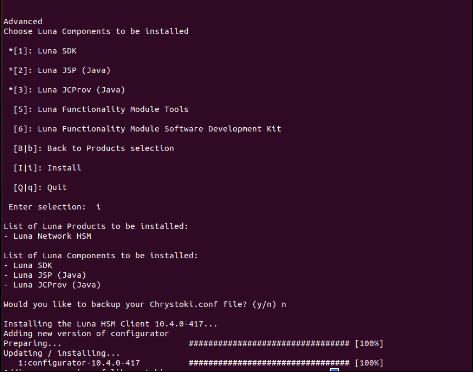

6. When prompted to choose the Luna components to be installed, choose the following packages:
   1. Luna Software Development Kit (SDK)
   2. Luna JSP (Java)
   3. Luna JCProv (Java)
   4. Crypto Command Center Provisioning Client (Not applicable for Luna client v7.2)
   To select a Luna component, Enter the number marked against it and press Enter. To select multiple Luna components, repeat the above step. Once the required components are selected, enter (I/i) and press enter to initiate the installation process.

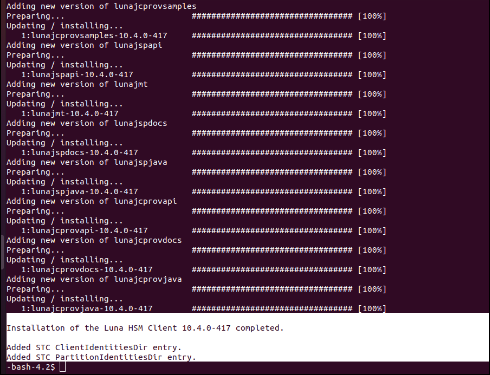

   Once the Luna client is installed successfully, you will get the following message in the terminal:
7. Navigate to usr/safenet/lunaclient/bin.
8. Import the server certificate of the HSM device to the Luna client using the following command:

   sudo scp <username>@<HSM device IP>:server.pem .

   Note: In the command above replace <username> with client credentials of HSM device, <HSM device IP> with the Host IP

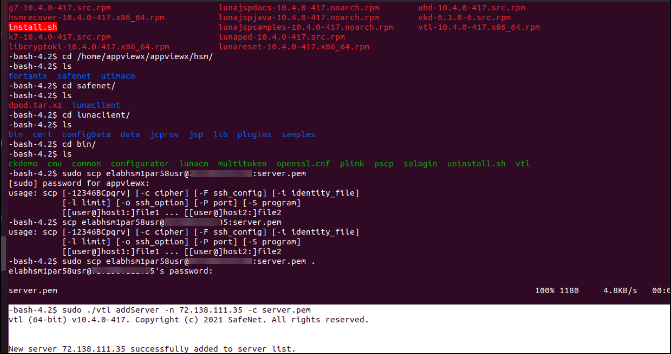

   After successfully adding the server, you will get the message as follows:
9. Register the HSM server certificate with the client using the following command:

   sudo ./vtl addServer -n <HSM Device IP> -c server.pem

10. Create a client certificate in the node from which we are trying to communicate with the HSM from AppViewX:

    sudo ./vtl createCert -n <Client_Certificate_Name>

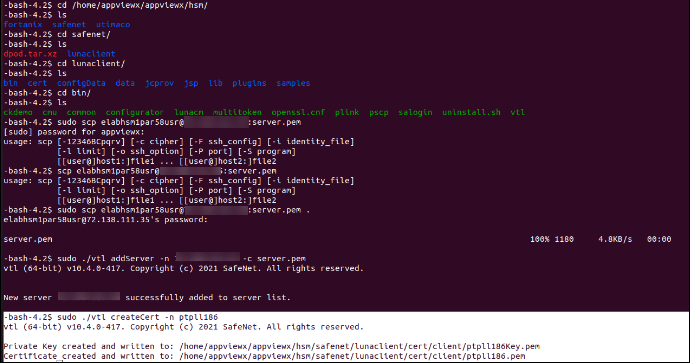

    After the certificates are created, you will get the output as follows:
11. Export the Client certificate to the node where the HSM is to be configured:

    sudo scp /usr/safenet/lunaclient/cert/client/<Client_Certificate_Name>.pem <username>@<HSM device IP>:

    • Use the certificate created and written to the path obtained from the previous step.

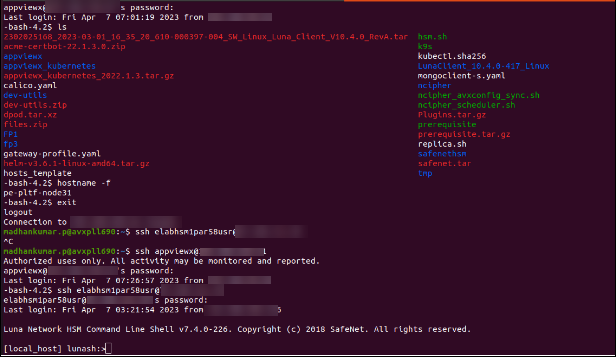

    • To register the client certificate to HSM machine, login to HSM machine in CLI using the SSH command as shown below.
12. Register the client certificate on the HSM Machine.

    (This command to be run in HSM device using SSH login.)

    client register -client <Client_Certificate_Name> -hostname <Client_Certificate_Name>

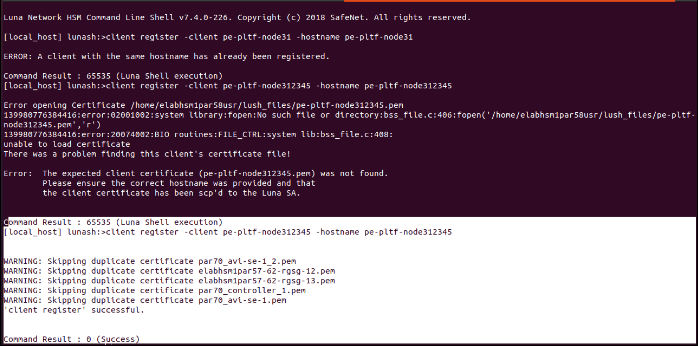

    After registering the client certificate, you will get the following output at the command prompt:

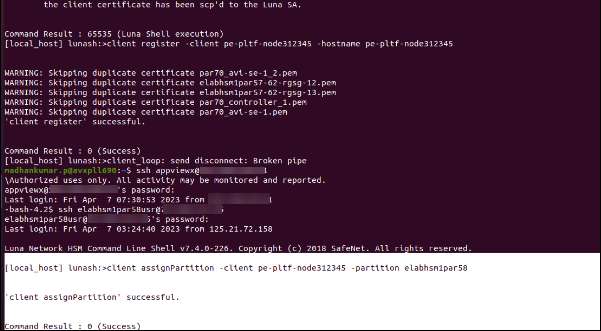

13. Assign the client to a partition using the following command:

    (This command to be run in HSM device using SSH login.)

    client assignPartition -client <Client_Certificate_Name> -partition <Partition name of the hsm device>

    After assigning the client partition, the output will be as follows:
