AVX::PUSH and AVX::JSONCONVERTER

These commands are used to push file(s) between destinations - local to remote, remote to remote.

Usage:

AVX::PUSH ('device_name',source_json, destination_json,protocol, fieldId , port_number, recursive, seq_no=0, properties={'sleep':0})

Device_name: Name of the device from where the scp/sftp command to be executed.
Source_json: AVX::JSONCONVERTER('ipAddress', 'username', 'password', 'location').
Destination_json: AVX::JSONCONVERTER('ipAddress', 'username', 'password', 'location').
Protocol: “scp” or “sftp”.
fieldId: Field Id of the uploaded file in the form.
Port_number: SCP port (Default is 22).
Recursive: “True” for folders.
Seq_no and other properties remains the same as AVX::CMD.

To use these commands:

Design a workflow.
To allow users to select the source of the destination device and upload file, drag and drop a Form task.

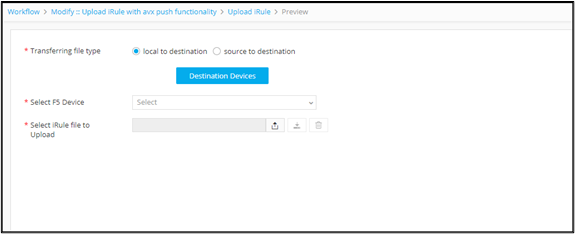

Configure the form fields as shown.

To get inputs from the form and push file(s) to a destination (AVX::PUSH logic), drag and drop a Script task and define the script as shown below.

#load sys config file <irulepath> verify merge

import sys
import os
sys.path.insert(0,AVX::HELPER)
sys.path.insert(0,AVX::DEPENDENCIES)
import paramiko
import appviewx
import Decrypt_Python3 as Decrypt
connection = appviewx.db_connection()
db = connection.appviewx
device_name = "<%device%>"
deviceInfo = db.device
transfer_type = '<%transfer_type%>'

AVX::LOG(transfer_type)
if transfer_type == "local to destination":
    try:
        #device_ip,username,password = get_device_details(device_name)
        irulefile = '<%uploadedfile%>'
        fileName = irulefile['fileName']
        file_location = '<%destination_path%>'
        destination_json = AVX::JSONCONVERTER(device_name,'$$username$$', '$$password$$', file_location)
        AVX::PUSH('N/A','None', destination_json,'sftp', irulefile)
        AVX::LOG("iRule Successfully pushed to device")
        AVX::CMD(device_name+":@tmsh")
        AVX::CMD(device_name+":@load sys config file "+file_location+fileName+" merge")
        AVX::CMD(device_name+":@quit")
    except Exception as e:
        AVX::LOG(str(e))
else:
    try:
        #AVX::PUSH('device_name',source_json, destination_json,protocol, fieldId , port_number, recursive, seq_no=0, properties={'sleep':0})
        source_path = '<%source_path%>'
        source_device = "<%source_device%>"
        source_json = AVX::JSONCONVERTER(source_device,'$$username$$', '$$password$$', source_path)
        file_location = '<%destination_path%>'
        file_name = source_path.split('/')[-1]
        destination_json = AVX::JSONCONVERTER(device_name,'$$username$$', '$$password$$', file_location)
        AVX::PUSH(source_device,source_json, destination_json,'scp')
        AVX::LOG("iRule Successfully pushed to device")
        AVX::CMD(device_name+":@tmsh")
        AVX::CMD(device_name+":@load sys config file "+file_location+source_path.split('/')[-1]+" merge")
        AVX::CMD(device_name+":@quit")
    except Exception as e:
        AVX::LOG(str(e))

config = {}
config["Implementation"] = AVX::CONFIG

AVX::OUTPUT(config)

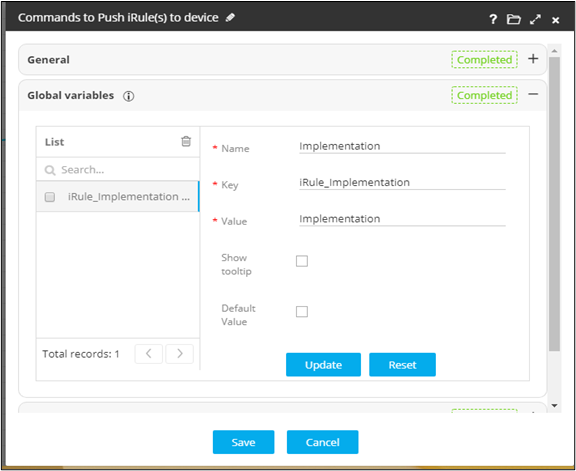

Define the configuration to be generated from the script as a global variable value.
To display the configurations to be pushed to a device, drag and drop a Review task.

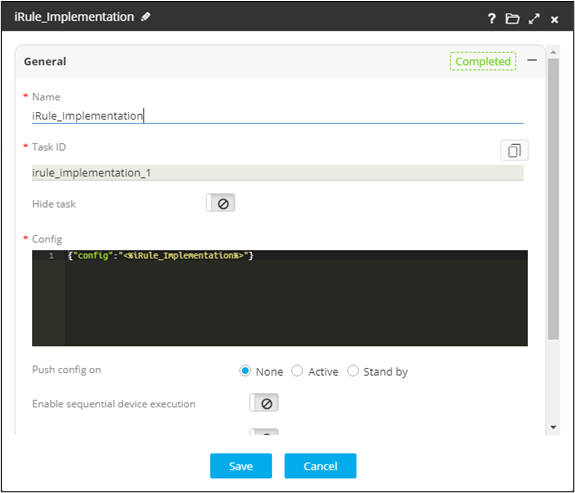

To push the configuration on the end device, drag and drop the Implementation task.

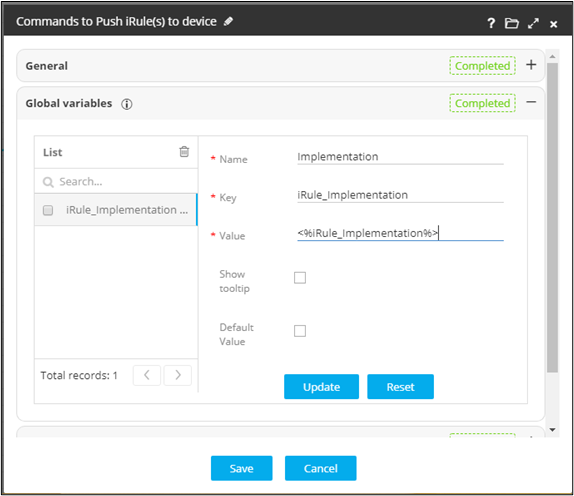

Refer the global variable from the Script task.
Enable and trigger the workflow.
The workflow is executed with the user inputs requested at the first stage.

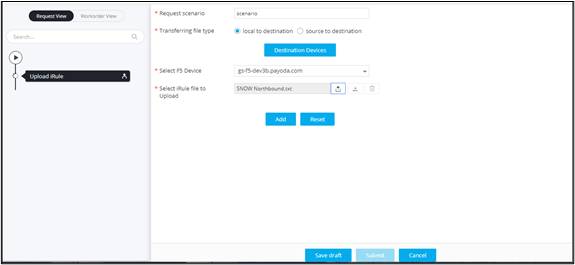

Select the destination device and upload the file.

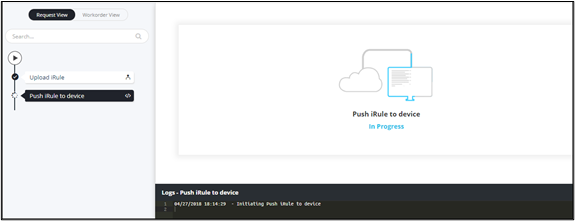

- Push iRule to device task is in progress.

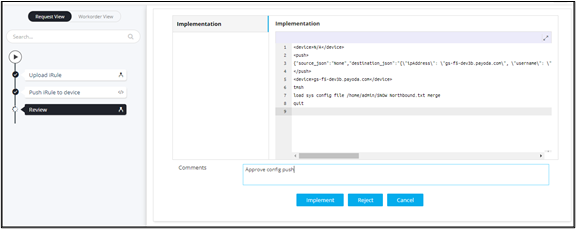

- Implementation stage.

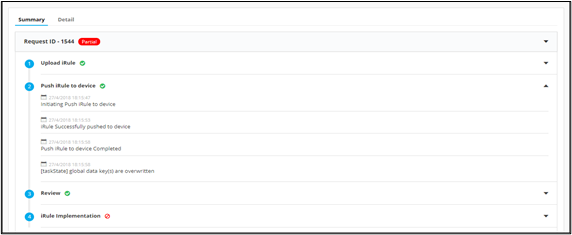

- Summary of workflow execution after file push.
