AVX::CONFIG
This command is used when other commands like AVX::CMD, AVX::REST and AVX::JSON are used
within a workflow task such as Script. AVX::CONFIG is used to assign the commands
generated script under a specific key in a python dictionary or a variable. In a
workflow, the commands to be generated can be assigned using AVX::CONFIG (within a
single script) and can be referred anywhere across the workflow.
Usage:
|
|
Example: Generating F5 VIP prevalidation
commands
AVX::CMD(device + ':@' + 'tmsh')
AVX::CMD(device + ':@' + 'list ltm pool ' + pool_name)
AVX::CMD(device + ':@' + 'list ltm virtual ' + vip_name)
AVX::CMD(device + ':@' + 'quit')
config = {}
config['prevalidation_config'] = AVX::CONFIG
AVX::LOG('Configurations generated successfully.')
-

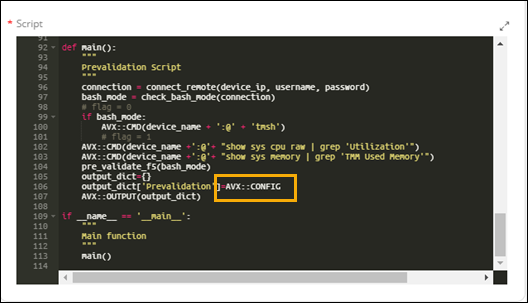

AVX::CONFIG within script
Create F5 Sample Config:
import sys
import json
sys.path.insert(0,AVX::DEPENDENCIES)
sys.path.insert(0,AVX::HELPER)
import os
import f5
import appviewx
import Decrypt_Python3 as Decrypt
from f5 import *
from Decrypt_Python3 import getpassword, getencoded
import paramiko
null=None
connect_db=appviewx.db_connection()
db = connect_db.appviewx
vendor = 'F5'
device_name = '<%Device%>'
fqdn = '<%AppName%>'.lstrip('www.').split('.')[0]
vip_ip = '<%IP%>'
vip_port = '<%Port%>'
persistence = '<%Persistence%>'
create_http_profile = '<%CreateHTTPProfile%>'
create_http_monitor = '<%CreateHTTPMonitor%>'
lb_method = '<%LoadBalancingMethod%>'
defaults_from = '<%DefaultsFrom%>'
ratio = '<%Ratio%>'
interval = '<%Interval%>'
timeout = '<%Timeout%>'
send_string = '<%SendString%>'
receive_string = '<%ReceiveString%>'
existing_monitor = '<%ExistingMonitor%>'
irulecheck = '<%irulecheck%>'
irulefile = '<%uploadedfile%>'
pool_members = <%PoolMembers%>
partition='Common'
output_dict = {}
cmd2 = []
deviceInfo = db.device
devVersion = deviceInfo.find_one({'name':device_name})['version']
device_ip = deviceInfo.find_one({'name':device_name} , {"ip": 1})['ip']
username, password = Decrypt.getpassword(device_name)
try:
tmos_version =deviceInfo.find_one({"name": device_name}, {'detailedVersion': 1})['detailedVersion'].split(" ")[0]
except Exception:
tmos_version = None
def connect_remote(IP,username,password):
try:
remote_conn=paramiko.SSHClient()
remote_conn.set_missing_host_key_policy(paramiko.AutoAddPolicy())
remote_conn.connect(IP,username=username,password=password,look_for_keys=False,allow_agent=False)
return remote_conn
except Exception as e:
print (str(e))
def check_bash_mode(connection) :
stdin, stdout, err=connection.exec_command('echo "testing"')
err = err.read().decode()
if "Error" not in err:
return True
else:
return False
def create_f5():
'''
Create F5 vip
'''
monitors = []
cmd = []
connection = connect_remote(device_ip, username, password)
bash_mode = check_bash_mode(connection)
if bash_mode:
cmd.append('tmsh')
cmd2.append('tmsh')
if tmos_version and tmos_version not in ('11.4.1','11.4.3'):
cmd.append("create cli transaction")
cmd2.append("create cli transaction")
if devVersion in ['v11', 'v12']:
cmd.append('cd /{0}'.format(partition))
cmd2.append('cd /{0}'.format(partition))
else:
cmd.append('modify cli admin-partitions update-partition {0}'.format(partition))
cmd2.append('modify cli admin-partitions update-partition {0}'.format(partition))
if create_http_monitor == 'Yes':
http_mon = F5Monitor(**{'type': 'http',
'app_name': fqdn,
'vip_port': vip_port,
'interval': interval,
'timeout': timeout,
'send': send_string,
'recv': receive_string})
cmd.append(http_mon.create)
cmd2.append(http_mon.delete)
mon_index = len(cmd2) - 1
monitors.append(http_mon)
output_dict['monitor'] = http_mon.name
if existing_monitor != 'None':
ex_mon = F5Monitor(**{'type': existing_monitor,
'associate': True})
monitors.append(ex_mon)
output_dict['monitor'] = ex_mon.name
profile_list = []
if create_http_profile == 'Yes':
prof = F5Profile(**{'type': 'http',
'app_name': fqdn,
'vip_port': vip_port,
'defaults-from': defaults_from})
if defaults_from and defaults_from.lower() != "select" and defaults_from.lower() != "none":
prof_create_cmd = prof.create
else:
prof_create_cmd = prof.create.split("defaults-from")[0]
cmd.append(prof_create_cmd)
cmd2.append(prof.delete)
profile_list.append(prof)
output_dict['profile'] = prof.name
else:
output_dict['profile'] = ''
pool = F5Pool(**{'lb_mode': lb_method,
'app_name': fqdn,
'port': vip_port,
'ratio': ratio,
'monitors': monitors,
'pool_members': {'keys': ['PoolMemberIP', 'PoolMemberPort', 'Ratio'],
'values': pool_members}})
cmd.append(pool.create)
cmd2.append(pool.delete)
output_dict['pool'] = pool.name
per = F5Persistence(**{'persistence': persistence})
output_dict['persistance'] = per.name
vip = F5VirtualServer(**{'app_name': fqdn,
'vip_ip': vip_ip,
'vip_port': vip_port,
'pool': pool,
'profiles': profile_list,
'persistence': per})
cmd.append(vip.create)
cmd2.append(vip.delete)
vip_index = len(cmd2) - 1
try:
cmd2[vip_index], cmd2[mon_index] = cmd2[mon_index], cmd2[vip_index]
except:
pass
output_dict['vip'] = vip.name
if irulecheck == "Yes":
# AVX::LOG(str(type(irulefile))+" "+str(irulefile))
fileName = irulefile['fileName']
#filename = 'irulee1.txt'
try:
# file_location = '/home/'+username+os.sep
file_location = '/config/'
destination_json = AVX::JSONCONVERTER(device_name,'$$username$$', '$$password$$', file_location)
AVX::PUSH('N/A','None', destination_json,'sftp', irulefile)
# AVX::LOG("iRule Successfully pushed to device")
except:
pass
if tmos_version and tmos_version not in ('11.4.1','11.4.3'):
cmd.append('submit cli transaction')
cmd2.append('submit cli transaction')
if irulecheck == 'Yes':
# fileName = irulefile['fileName']
# file_location = '/home/'+username+os.sep
cmd.append("load sys config file "+file_location+fileName+" merge")
cmd.extend(['save sys config', 'quit'])
cmd2.extend(['save sys config', 'quit'])
for c in cmd:
AVX::CMD(device_name+':@'+c)
def main():
'''
Main method
'''
if vendor == 'F5':
create_f5()
output_dict['Implementation']=AVX::CONFIG
for c in cmd2:
AVX::CMD(device_name+':@'+c)
output_dict['Rollback']=AVX::CONFIG
AVX::OUTPUT(output_dict)
if __name__ == '__main__':
'''
Main function
'''
main()
