Amazon ELB

Before You Begin

Prerequisites

Prerequisites for Managing Amazon ELB devices on AppViewX are:

Version Supported: Only Classic and Application ELB is supported
IP Address/FQDN: Not applicable
User Privilege: Access Key, Secret Key, and Region information is required.
Enable Password: Not applicable
License Check: Not applicable
Services and Ports for AppViewX Communication: Port 443, Outbound Internet access is required to manage the ELB in AWS
Internet Access/Proxy if Required: Required
Location from which Certificates are discovered if managed: Not applicable (Certificates that are assigned to the listeners will be discovered by AppViewX)

Web Browser Requirement

ACF Permission

Ensure the following ACF permission is available to add and manage devices:

You can check this under any of the following menus:

To associate ACF permissions with a role, see Platform User Guide.

To add an Amazon ELB:

Go to Menu > ADC+ > ASSET MANAGEMENT.
Perform one of the followings:
- Click Device Inventory, and then select Add (+) icon to navigate to the Device details page.
- Click Onboard Device in the left navigation panel.

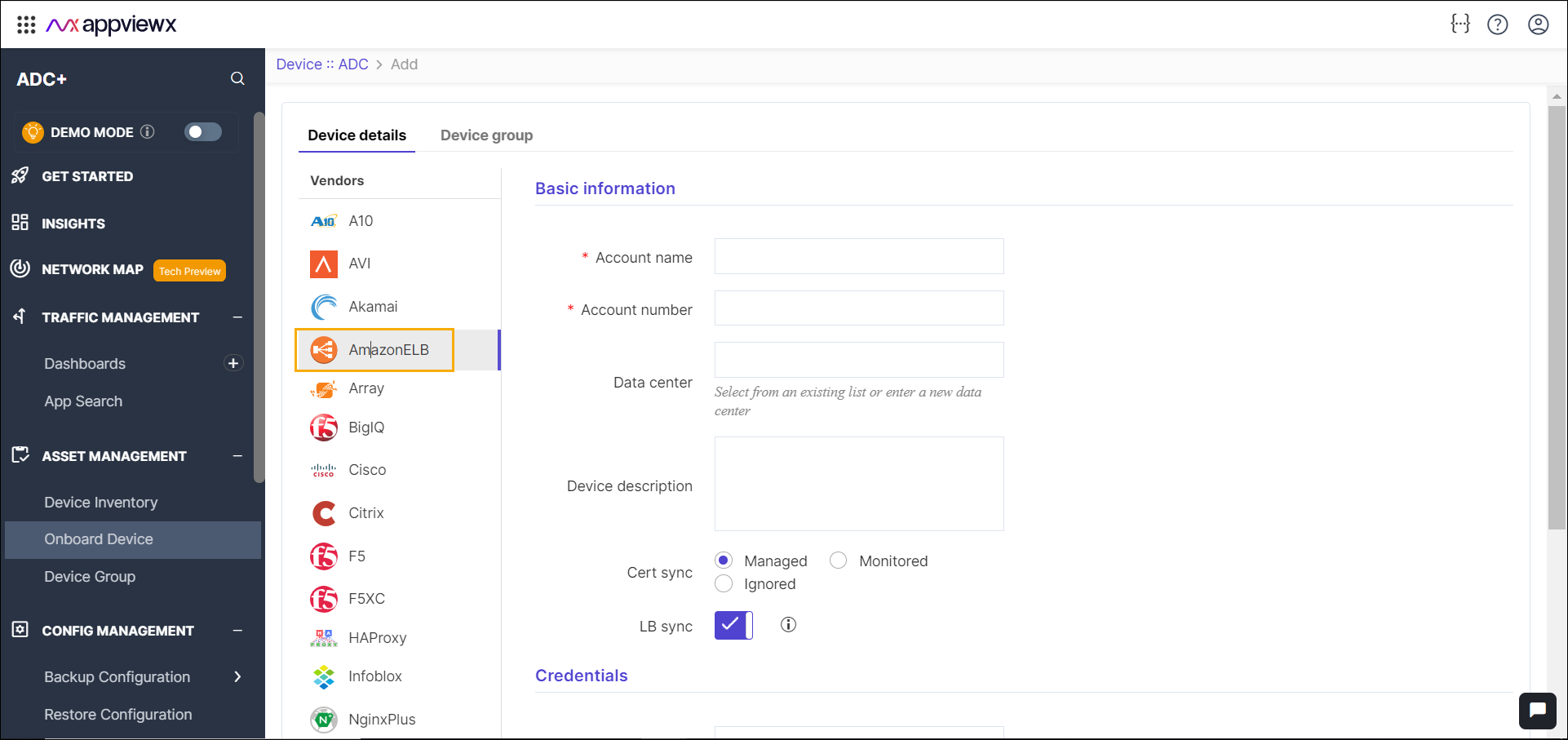

In the Device details page, select Amazon ELB from the left sidebar.

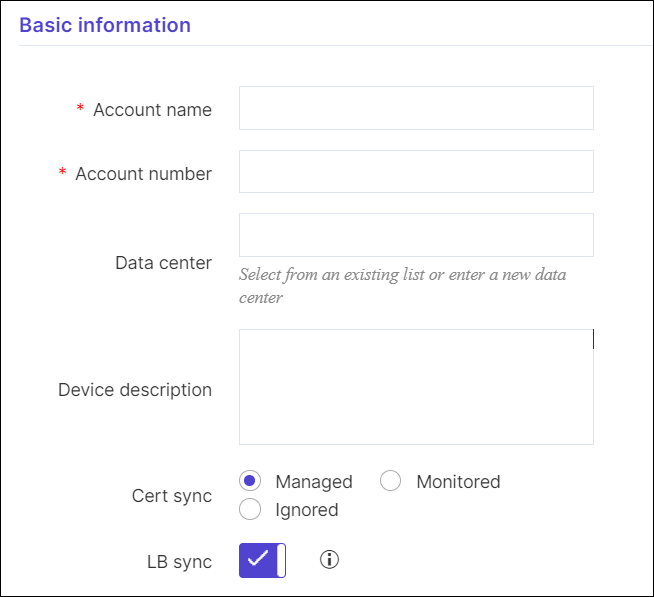

Enter or select the field information in the Basic information section.

Table 1. Basic information Section - Field and Description Table
Name	Description
*Account name	The account name of the AmazonELB device.
*Account number	Account number of the AmazonEB device. Note: Only numbers are allowed.
Device description	Description about the AmazonELB account.
Cert Sync	Managed: The certificates of the device can be managed. Monitored: The certificates of the device can be discovered and can only be monitored. Ignored: The certificate sync can be ignored.
LB Sync	By default, this option is enabled to discover and manage the load balancer configurations. If not required, you can disable this option.
*: Mandatory fields

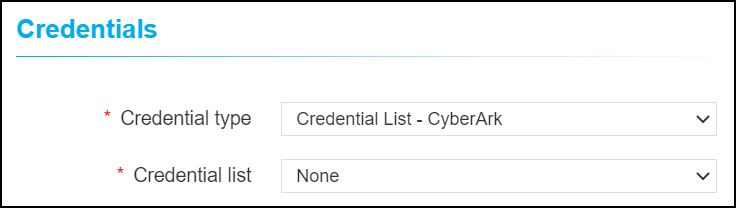

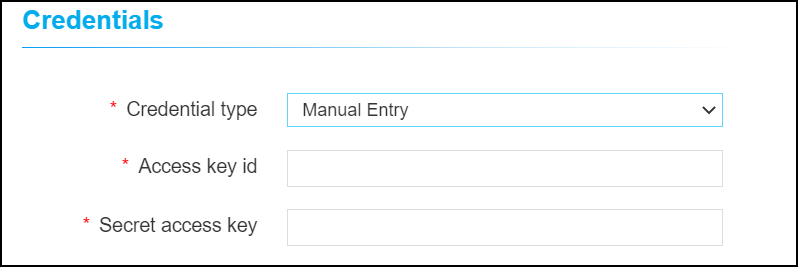

Enter or select the field information in the Credentials section. You can select Manual Entry or Credentials List.

Table 2. Credentials Section - Field and Description Table
Name	Description
*Credential type	Manual entry: The user should enter the Access key ID and Secret access key. Credential List: The user can select the credential details which are already stored in the credential inventory page.
*Access key id	Access key id of the AmazonELB device.
*Secret access key	Secret access key of the AmazonELB device.
*: Mandatory fields

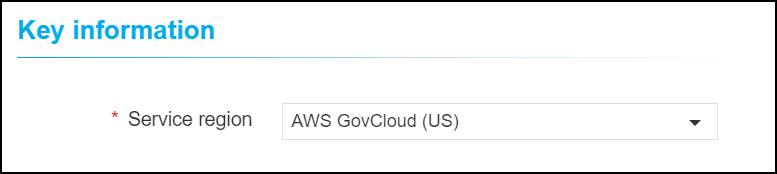

Enter or select the field information in the Key information section.

Table 3. Key information Section - Field and Description Table
Name	Description
*Service region	Service region of the AmazonELB device.
*: Mandatory fields

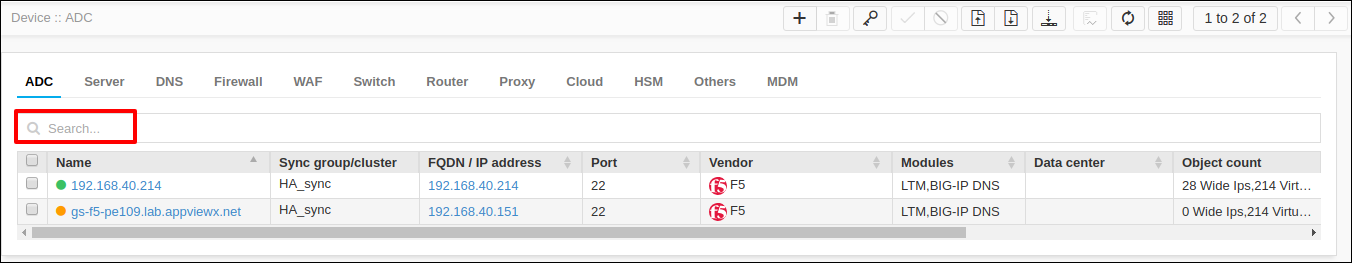

After adding the device, you can validate the device by searching device in the device inventory.
