Device Inventory

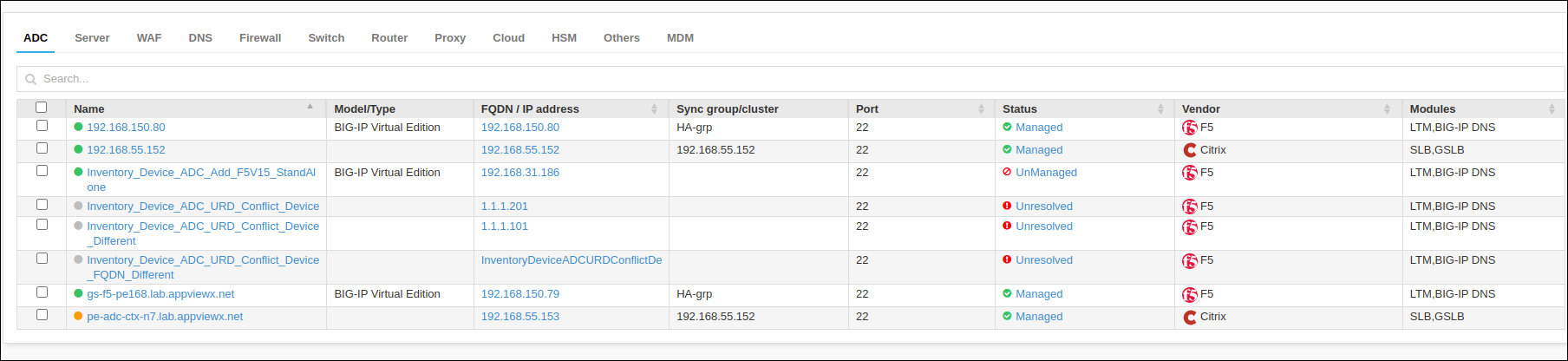

Device inventory provides a birds-eye view of all the ADC devices onboarded into AppViewX. It is the single console where all the information about ADC devices such as number of objects, current status, Group Name, and version number will be displayed.
The ADC devices can be onboarded and managed from the Device Inventory. The complete details of the devices are available in the device Inventory for easy access and monitoring. Device Inventory gives you detailed information as described in the following table:
Table 1. Device Inventory - Column and Description Table
Column Name Description
Checkbox Allows selection of individual devices for actions.
Name The unique name assigned to each device.
Model/Type The specific model or type designation of the device. Supported only for F5 vendor.
FQDN/IP Address The FQDN or IP address of the device.
Sync groupcluster Indicates the synchronization group or cluster to which the device belongs.
Port The port number used for communication with the device.
Vendor The vendor of the device.
Modules Lists any modules installed on the device.
Data center Specifies the data center location where the device is hosted.
Object count Total number of objects managed or monitored by the device. For F5 vendor support (LTM Module): For non-ADC customers, when parsing is skipped based on a database flag, the object counts will display a managed status. Even if there are issues with managing the device, its status will still appear as Managed. You can verify the details of any failures in the audit logs.
Version Current software version running on the device.
Status Current operational status of the device (e.g., Managed, Unmanaged).
Report Access to reports related to device performance or issues.
Services Lists the services provided by the device.

Once the ADC device details are onboarded, devices must successfully go through the following setup process to be Managed into AppViewX,

  • AppViewX tries to establish a connection with the device with the provided username and password. The communication protocol varies based on the ADC device providers.

  • If the connection gets established, the required access is validated. For example, If any F5 ADC device gets added, Terminal access verification happens from AppViewX.

  • The requested module is validated in the ADC Device. For example, if an ADC device is added as GSLB, then the appropriate provision is validated.

  • The version of ADC device is fetched and validated for the supported version.

  • The configuration is fetched from the device through REST or any other supported protocol by the ADC device provider. The configurations are made available in AppViewX.

  • If the certificate discovery is enabled, then appropriate certificates from the ADC device are discovered.

  • If secondary device detection is enabled, then failover/standby device information is fetched.

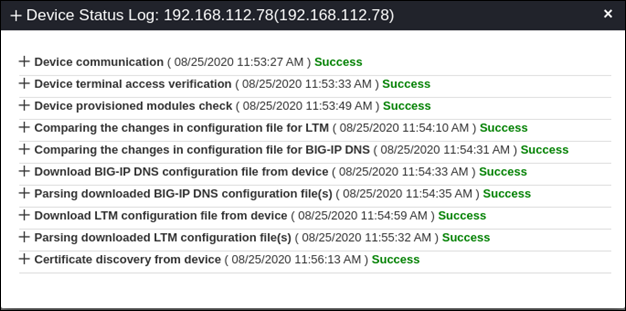

The progress of these steps can be viewed in the inventory by clicking the status column of the device. By clicking the (+) button, detailed information will be available for each step.
