Export Device Details

The device details, which are available in the Device Inventory page can be exported into an Excel file.

To export the details of one or more devices:

  1. Go to Menu > ADC+ > ASSET MANAGEMENT > Device Inventory.
    By default, the ADC tab opens.
  2. If the device you want to export is not listed on the screen, run a search to locate it.
  3. Click the checkbox beside the device name. If you are exporting details of multiple devices of the same kind, select the checkboxes for each one.
  4. Click the (Export) button in the Command bar at the upper right of the screen.

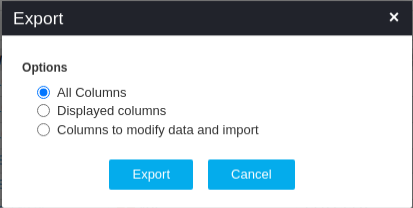

  5. On the Export pop-up screen that appears, select the type of information you want to export:

    • All Columns - Select this option if you want to export all information about the device.

    • Displayed columns - Select this option if you want to export only the information that is visible on the Device screen. This is useful if you need to compare values or settings for different devices and do not have any need to see the less important data.

    • Columns to modify data and import - Select this option if you are exporting device details to make modifications and then re-import the data into the Device Inventory.

  6. On the screen that opens, select the location where you want the device details file to go, then click Save.
  7. The details are then downloaded as an Excel (.xls) file.
