Quantum Trust Hub: Code Scan
A PQC-focused code scan assesses source code to detect the presence of quantum vulnerable cryptography embedded in code.
While certificates are as vulnerable to quantum attacks, they are easier to replace once their quantum-readiness has been assessed due to expiry. Code, however, lasts years, especially for embedded systems, financial applications, IoT, and firmware. Without code scanning, organizations risk leaving quantum vulnerable crypto buried in applications long after TLS certificates have been upgraded.
- Cryptographic methods
- Crypto libraries
- Crypto algorithms used in source code
Prerequisite: Verify that your user role has the required ACF permission to view code scan reports. To enable ACF permission, click here.
The Code Scan dashboard offers a consolidated view of your organization’s software code security posture, highlighting which parts of your codebase are quantum vulnerable.
To view the Code Scan dashboard, go to .
The dashboard widgets are explained in the subsequent sections.

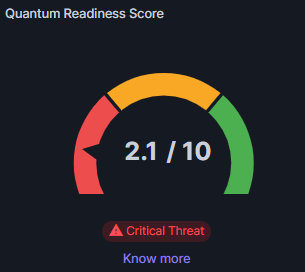

Quantum Readiness Score
The Quantum Readiness Score widget displays the cumulative PQC score for a code scan, aggregated from the PQC scores of all lines of code in your codebase. It indicates how well the scanned code aligns with quantum-safe practices and policies.
- Each line of code scanned is assigned a PQC score based on its quantum readiness.
- Quantum Resistant Crypto Categories Identified = 1 point
- Quantum Vulnerable Crypto Categories Identified = 0 points
The code scan quantum readiness score, displayed using this widget, is then calculated as:
(Total Quantum Resistant Crypto Categories identified / Total Crypto Categories Identified) * 10
The

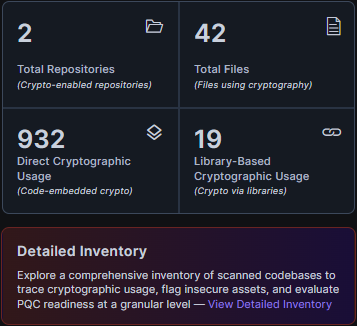

threat level is displayed on the widget below the Gauge chart.Code Scan Count Cards
- Total Repositories Scanned: Total number of source code
repositories scanned for PQC-readiness.
A repository here refers to containers for source code, for example, GitHub, GitLab.
- Total Files Scanned: Total number of scanned files with crypto components
- Total Cryptographic Usage: Total number of instances of
direct usage of cryptographic functions in the source code scanned across
repositories.
This count card is interactive; to view details of these instances, click the count card and you will be redirected to the Direct Cryptographic Usage tab in the Code Scan inventory.
- Total Cryptographic Dependencies: Total number of
cryptographic dependencies detected in the source code scanned across
repositories.
A cryptographic dependency refers to external libraries, modules, or packages that the source code relies on for performing cryptographic operations like encryption, decryption, key generation, and so on.
The code scan checks these external cryptographic dependencies to determine how they impact the quantum-readiness of your application code.
This count card is interactive; to view details of these instances, click the count card and you will be redirected to the Cryptographic Dependencies tab in the Code Scan inventory.

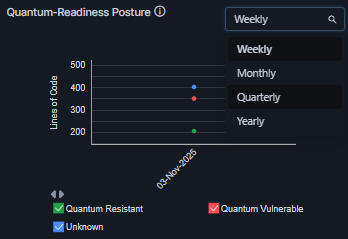

Quantum Readiness Posture
Based on the results of the PQC-focused source code scan, the Quantum Readiness Posture chart indicates the PQC-readiness of your codebase for resisting potential quantum threats.
The chart plots the number of crypto assets scanned for a selected duration, and represents the code that is quantum safe (with a green line) and quantum vulnerable (with a red line), as well as code whose quantum safety status could not be determined (with a blue line).
You can select the duration to be plotted on the Y-axis from the dropdown list in the top-right corner of the widget. The chart legends are interactive. Select/clear the checkbox for a quantum safety status value to show/hide, respectively, the corresponding data on the chart.

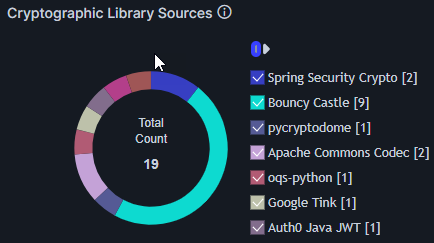

Cryptographic Library Sources
The Cryptographic Library Sources donut chart shows the distribution of external cryptographic libraries usage across repositories. The chart plots the data that is displayed in the Cryptographic Dependencies tab in the Code Scan inventory.
To view the data specific to a cryptographic library, click the corresponding donut slice. You will be redirected to the Cryptographic Dependencies tab in the Code Scan inventory filtered for the selected library.
The legend lists the cryptographic libraries detected and the usage count for each. Use the interactive legend to filter the visualization for specific libraries.

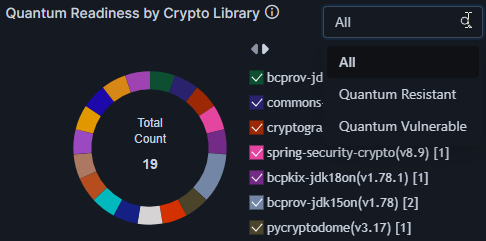

Quantum Readiness by Crypto Library
The Quantum Readiness by Crypto Library chart shows the quantum readiness of each cryptographic library in your environment.
Use the dropdown list in the top-right corner of the chart to filter the chart data, showing only quantum resistant libraries, quantum vulnerable libraries, or both.
The chart elements are interactive. To view the repositories associated with each cryptographic library, click the corresponding donut slice. You will be redirected to the Cryptographic Dependencies tab in the Code Scan inventory filtered for the selected library.
The chart legends are also interactive. Select/clear the checkbox for a cryptographic library to show/hide, respectively, the corresponding data on the chart.

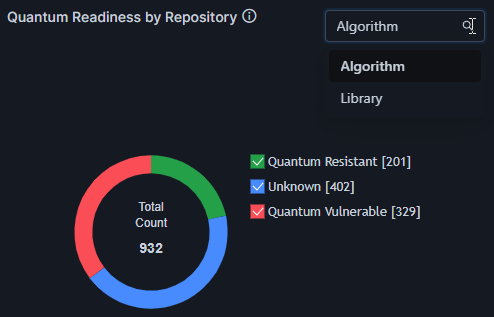

Quantum Readiness by Repository
The Quantum Readiness by Repository donut chart shows the distribution of quantum vulnerable and quantum resistant algorithms and libraries in your environment. Use the dropdown list to filter the chart data for algorithms and libraries, as required.
The chart elements are interactive. To view the data for a quantum safety status, click the corresponding donut slice. For repository type Algorithm, you will be redirected to the Direct Cryptographic Usage tab in the Code Scan inventory, filtered for the selected quantum safety status. For repository type Library, you will be redirected to the Cryptographic Dependencies tab in the Code Scan inventory filtered for the selected quantum safety status.
The chart legends are also interactive. Select/clear the checkbox for a quantum safety status value to show/hide, respectively, the corresponding data on the chart.

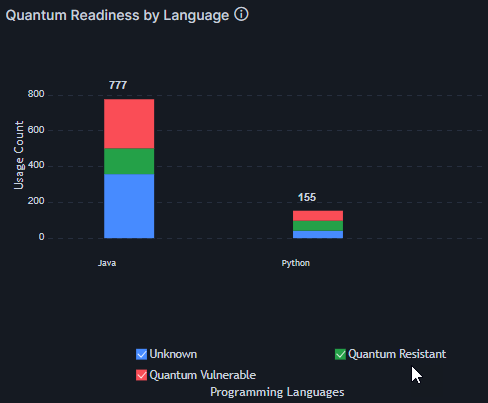

Quantum Readiness by Language
The Quantum Readiness by Language stacked bar chart shows quantum safety status according to the programming languages used in your codebase.
The chart elements are interactive. To view the data for the programming languages that correspond to a quantum safety status, click the associated bar in the chart. You will be redirected to the Direct Cryptographic Usage tab in the Code Scan inventory filtered for the selected quantum safety status.
The chart legends are also interactive. Select/clear the checkbox for a quantum safety status value to show/hide, respectively, the corresponding data on the chart.

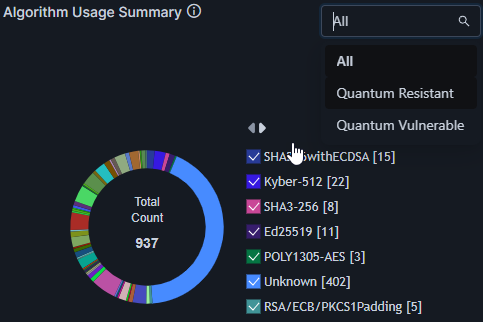

Algorithm Usage Summary
The Algorithm Usage Summary donut chart shows a snapshot of the different algorithms used in your codebase.
Use the dropdown list in the top-right corner of the chart to filter the data, showing only quantum resistant algorithms, quantum vulnerable algorithms, or both.
The chart elements are interactive. To view the data for an algorithm, click the associated slice in the donut chart. You will be redirected to the Direct Cryptographic Usage tab in the Code Scan inventory filtered for your selection.
The chart legends are also interactive. Select/clear the checkbox for an algorithm to show/hide, respectively, the corresponding data on the chart.

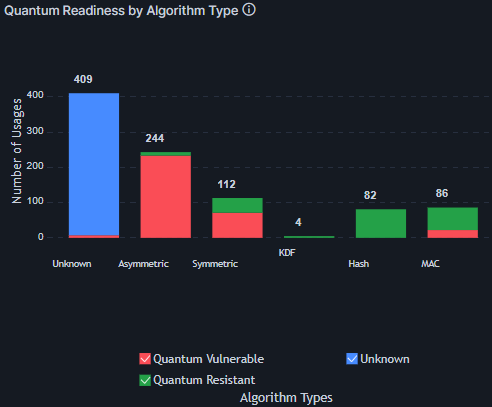

Quantum Readiness by Algorithm Type
The Quantum Readiness by Algorithm Type column chart shows quantum safety status according to the different algorithm types used in your codebase.
The chart elements are interactive. To view the data for algorithms that correspond to a quantum safety status, click the associated bar in the chart. You will be redirected to the Direct Cryptographic Usage tab in the Code Scan inventory filtered for the selected quantum safety status.
The chart legends are also interactive. Select/clear the checkbox for a quantum safety status value to show/hide, respectively, the corresponding data on the chart.
