Upgrade AppViewX in Managed Kubernetes

Before you begin: Before performing the infra upgrade, upgrade the kubernetes to the latest version 1.34. Refer to the available Upgrade options for Azure Kubernetes Service (AKS) clusters.
Attention:
  • If you are using the self managed private docker registry instead of AppViewX's docker registry, then before proceeding with the upgrade, ensure you have copied the latest images to your registry. The list of images can be found in the Prerequisite section - AppViewX Docker Images.

To upgrade AppViewX with a new image version, follow the steps below:

  1. To take the backups, execute the commands below.
    For self-managed mongodb:
    kubectl create job --from=cronjob/mongo-backup -n avx mongo-backup-<unique-identifier>
    kubectl create job --from=cronjob/vault-backup -n avx vault-backup-<unique-identifier>
    Replace <unique-identifier> in above commands with some random string and run. Monitor the pods until completion and verify the backups are placed in the storage bucket.
    Note: Atlas backup must be taken in the atlas dashboard. Refer to the atlas snapshots section in the page Backup and Restore.
  2. Download the upgrade tar file (upgrade.tar.gz) from the release portal and extract it to a suitable location. (The extracted files contain the binary and helm charts tar.)
  3. Navigate to the folder where the upgrade tar is extracted.
  4. Copy the appviewxctl binary from the current folder (extracted folder location) to the installer location.
    cp appviewxctl <absolute path of the installer directory>
  5. Navigate to the installer directory.

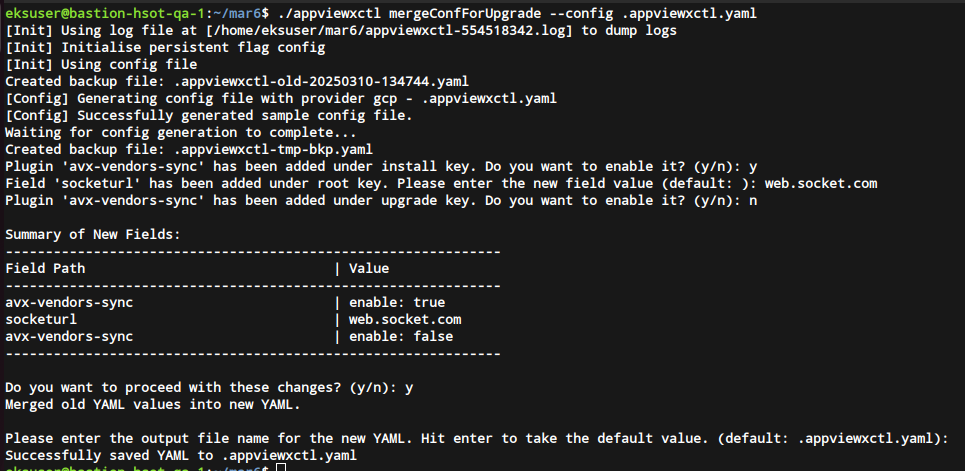

  6. To merge the old data of .appviewxctl.yaml to the new file, execute the command below.
    ./appviewxctl mergeConfForUpgrade --config .appviewxctl.yaml
    During the execution of the above command, the fields of the old conf file are compared with that of the newly generated conf file and you will be prompted to enter values.
    • If it's a plugin, you'll be prompted to enable or disable it during both installation and upgrade.
    • If a new field has been added to the .appviewxctl.yaml file, you'll be prompted to provide a value for it. Pressing Enter without input will apply the default value.

    Once all the values are entered, the process continues as follows:

    • A summary table is displayed to confirm the provided inputs.
    • If the user declines, the prompts will repeat.
    • If the user confirms, the system proceeds to merge the old YAML with the new one.
    • The values provided by the user for the newly added fields will be retained, while existing fields will retain values from the old configuration file.
    • Users can specify a custom output filename for the merged YAML; if not specified, the default will be .appviewxctl.yaml.
    • The merged YAML is successfully saved to the output file.
  7. Refer to the tables below for the essential upgrade parameters and their description.
    Table 1. Upgrade Parameters in the appviewxctl.yaml file
    Parameters Description of Values
    upgrade.imageRegistry The URL of the container registry where the images are to be pulled from by the pods.

    Example: gcr.io/pe-qa-358108
    upgrade.imageTag The tag of the image that will be used for upgrade.

    Example: 2023.1.0_FP_750-alpine
    install.imageTag The tag of the image that will be used for installation.

    Example: 2022.1.0_FP_750-alpine
    upgrade.isSaasEnabled Boolean value for SaaS enablement. This value should be set to true for Managed K8s.
    upgrade.plugins The list of plugins that will be installed. Each plugin will have three fields
    • enable
    • imageTag
    • name
    Set enable to true if the plugin is to be upgraded. If the same image tag is to be used as defined in the global ImageTag keep it latest otherwise override with some other tag of your choice.
    Note: The list of plugins to be enabled should match the ones in the install section.

    Example:

    - enable: true
  imageTag: latest
  name: avx-config-server
    upgrade.upgradeInfra Boolean value to upgrade infra component. Set to True for upgrade.
    upgrade.upgradeThirdParty Boolean value to upgrade the monitoring (ELK, insight, and monitoring) components. Set to True for upgrade.
    socketurl Customers can now configure their own web-socket URL in the MongoDB by updating the socketurl parameter in the .appviewxctl.yaml file. After installation or upgrade, the specified socket URL will be recorded in the saas_agent_meta collection.
    Table 2. Component Parameters in the appviewxctl.yaml file
    Parameters Description of Values
    install.thirdPartyApp.elk Boolean value to add Elk component. Set to True for upgrade.
    install.thirdPartyApp.monitoring Boolean value to add Monitoring component. Set to True for upgrade.
    install.thirdPartyApp.insight Boolean value to add Insight component. Set to True for upgrade.
    Table 3. Install parameters in the appviewxctl.yaml file required to integrate the kubernetes cluster to the external vault.
    Parameters Description of Values
    cloudConnectorEnabled A boolean value (true/false) to denote the cloud connector usage for southbound communications. If a cloud connector is used set the value to true.
    install.externalVault.enable A boolean value (true/false) to denote if the external vault is to be used in the setup. True is to enable the external vault.
    install.externalVault.externalVaultAddr Contains the vault URL and listening port

    Example: https://pm-lxs-node01.lab.appviewx.net:8200
    install.externalVault.externalVaultAuthRole Name of the role created against the access kubernetes auth path
    install.externalVault.externalVaultCACertSecret Name of the secret where vault-ca.crt file is mounted.
    install.externalVault.externalVaultDBRole Static role created to access the database cred.
    install.externalVault.externalVaultEnginePath Enter the value “/database”
    install.externalVault.externalVaultKubeAuthPath The Kuberenetes access path created with cluster information for service account authentication.
    install.externalVault.externalVaultSAName The Service account used to create externalVaultAuthRole.
    install.externalVault.mongoPasswordVaultEngine Enter the value DATABASE
    Note: Path parameters should have a leading forward slash '/'.
  8. Copy the vault_restore_openbao_migration.sh file from the current folder (extracted folder location) to installer location
    Note: If this step was completed during the previous upgrade (2025.0.0.0), you can skip it. However, if you are upgrading from an older version (2023.1.3 or earlier), this step is required.
    cp vault_restore_openbao_migration.sh <absolute path of the installer directory>
  9. Copy the mongo_restore.sh file from the current folder (extracted folder location) to installer location
    cp mongo_restore.sh <absolute path of the installer directory>
  10. To upgrade AppViewX infra, execute the infraUpgrade command.
    Note: If you plan on enabling additional 3pt monitoring components as part of the infra upgrade do the following:
    1. Navigate to <installer>/helm_charts/avx_thrid_party/.
    2. Edit the values.yaml file.
    3. Set "enable" to true for the components you wish to enable as part of the upgrade.

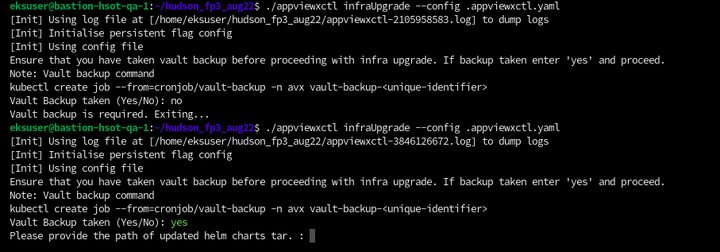

    ./appviewxctl infraUpgrade --config .appviewxctl.yaml
    This will prompt the following message
    Vault Backup taken (Yes/No):
    If you haven't taken the backup, enter No, and execute the vault backup command in step 2. If you have already taken the backup, enter Yes. You will be prompted with the message below.
    Please provide the path of updated helm charts tar. :

    Enter the absolute path of the extracted Helm charts tar artifact to proceed with the infrastructure upgrade. Ensure you provide the full file path, not just the directory location.

    Note: After completing the infrastructure upgrade and before triggering the installMongoRS, ensure the install.imageTag in the .appviewxctl.yml file is updated with the latest imageTag.
  11. Install Mongo Replicaset using the command below
    Note: If this step was completed during the previous upgrade (2025.0.0.0), you can skip it. However, if you are upgrading from an older version (2023.1.3 or earlier), this step is required.
    ./appviewxctl --config .appviewxctl.yaml installMongoRS

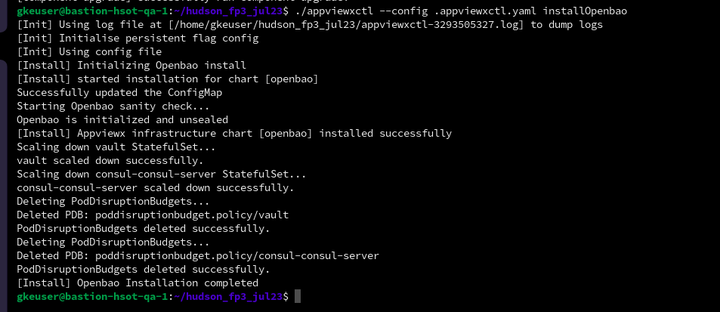

  12. Install OpenBao using the command below.
    Note: If this step was completed during the previous upgrade (2025.0.0.0), you can skip it. However, if you are upgrading from an older version (2023.1.3 or earlier), this step is required.
    ./appviewxctl --config .appviewxctl.yaml installOpenbao
    Note: The plugin pods must not be restarted after installing OpenBao until the plugin upgrade is complete. Restarting the pods prematurely may disrupt functionality, as Vault could lock the user if it detects multiple login attempts.
  13. To restore the vault, fetch the backup files and place them in the bastion in a directory such as /home/user/backup execute the restore scripts below.
    Note: If this step was completed during the previous upgrade (2025.1.0.0), you can skip it. However, if you are upgrading from an older version (2023.1.3 or earlier), this step is required.
    ./vault_restore_openbao_migration.sh -p <absolute path of the vault_bkp_file_location>
  14. To restore the mongo, fetch the backup files and place them in the bastion in a directory such as /home/user/backup and execute the restore scripts below.
    Note:
    1. If this step was completed during the previous upgrade (2025.0.0.0), you can skip it. However, if you are upgrading from an older version (2023.1.3 or earlier), this step is required.
    2. Before you trigger the mongo_restore.sh command, ensure that the mongo restore file has the file extension as .tar.gz.
    ./mongo_restore.sh <absolute path of the mongo_bkp_file_location>
  15. Run the plugin upgrade command below.
    ./appviewxctl upgrade --config .appviewxctl.yaml
    Note: It is mandatory to carry out the Infra upgrade before the plugin upgrade.

    Rollback Steps

    1. Restore the DB using the restore scripts (step 11 in the Installation Steps section) for self-managed DB or in atlas using snapshot restore in the dashboard.
    2. Update the appviewxctl.yaml upgrade section’s values to the previous image tag and re-run the upgrade command.
  16. To install CC-related components, run the following command:
    ./appviewxctl ccDBDump --config .appviewxctl.yaml

Post-Upgrade Actions

The following steps have to be performed after you completed the upgrade.
  1. Retrieve the updated web login IP by executing:
    kubectl get svc -n istio-system

    From the output, locate the ExternalIP associated with the istio-ingressgateway and use that IP to access the web login page.

  2. Update the RSocket URL in the properties file and restart the avx-mid-server-starter and avx-mid-server-platform pods.
    1. In the UI, go to Platform > Cloud Connector.
    2. Copy the Cloud Connector URL.
    3. On the Cloud Connector (CC) node CLI, go to the properties directory:
      cd <Installer_Folder>/deps/properties
    4. Open the appviewx.properties file using a text editor:
      vi appviewx.properties
    5. Update the value of RSOCKET_URL with the copied Cloud Connector URL (e.g., https://98.70.232.0:443) and save the file.
    6. Restart the following pods to apply the changes:
      • avx-mid-server-starter
      • avx-mid-server-platform
      kubectl delete pods -n cc avx-mid-server-starter,avx-mid-server-platform --force
  3. If GUI login fails:
    1. Restart all pods:
      kubectl delete pods -A --all --force
    2. Allow the pods to restart and verify that they are running.
    3. When all pods are running, log in again.
