Install AppViewX in Managed Kubernetes

Migration Strategy

Attention: If you are performing a fresh install, then refer the next sub-topic Installation Steps.
To migrate from AppViewX on-prem versions (2022.1.0, 2021.1.0, and 2020.3.0) to Managed Kubernetes, it is important to take a backup of the mongodb and vault in the respective on-prem versions. Before you take the backup, execute the script below.
db.profile.update({'_id' : 'installationType'}, {$set : {"value" : "Managed_K8s"}})
Note: Refer to the specific version of the release documents from the release portal and perform the backups or contact the AppViewX support team.
After performing the backup, follow the installation steps detailed in the section below. At step 11 of the installation process, ensure to restore the data at this stage.

Installation Steps

This section describes the steps to for installing the AppViewX Stack on AKS.
  1. Download the installer from the release portal.
  2. Create a directory Managedk8s-installer in the bastion host and extract the installer file tar -xf installer.tar.gz in the same directory.
  3. Verify that the extracted installer must have the following files
    • appviewxctl (binary)
    • helm_charts (directory of helm charts)
  4. Generate the configuration files based on the cloud provider. If the cloud provider is Azure, execute the command below.
    ./appviewxctl config generate --provider azure
  5. Verify that the execution of the above command creates the configuration files named .appviewxctl.yaml in the same location.
  6. The file .appviewxctl will be populated with the fields necessary for installation, in particular cloud provider that was provided in previous command (-- provider).
  7. Edit the appviewxctl.yaml file and populate the values as described below:
    Table 1. appviewxctl.yaml file - Parameters and Description
    Parameters Description of Values
    chartPath The path to the helm_charts which is to be installed. It points to the helm_charts directory extracted in step 3.
    configFile The path to the kube config file to be used by helm and kubectl.

    If the bastion host is already configured and kube config is under $HOME/.kube directory, then keep this field empty.
    install.enableAppBackupCron Boolean value to enable/disable the backup cronjobs. (True/False).

    This value is needed for self-managed mongodb only. For atlas backup this has to be scheduled in the atlas dashboard.
    install.enablePrivateImagePullSecret Boolean value to enable image pull secret.

    Set values as false if the cluster already has access to the container registry.

    Otherwise set it to true and fill all the details of the access keys described in below sections.
    install.enableThirdPartyInstall Boolean value (True/False) to determine whether third party monitoring components such as ELK, Monitoring, and Insight needs to be installed.
    install.thirdPartyApp.elk Boolean value to add Elk component. Set to True if it needs to be installed.
    install.thirdPartyApp.monitoring Boolean value to add Monitoring component. Set to True if it needs to be installed.
    install.thirdPartyApp.insight Boolean value to add Insight component. Set to True if it needs to be installed.
    install.imageRegistry The URL of the container registry where the images are to be pulled from by the pods.

    Example: appviewx.azureacr.io
    install.imageTag The tag of the image that will be used for installation.

    Example: 2022.1.0_FP_750-alpine
    install.isSaasEnabled Boolean value for SaaS enablement. This value should be set to true for Managed K8s.
    install.kafkaCloudConnector It is a combination of three values.
    • enable
    • password
    • user
    Set enable to true and keep the user, password fields empty for Managed K8s.

    Example

    kafkaCloudConnector:
    enable: true
    password: ""
    user: ""
    install.mongo It is a combination of fields specific to the type of mongodb used.
    dbIsolation Boolean value to indicate whether the database isolation is to be enabled.
    In order for database isolation to work, the following prerequisite must be taken care of while creating the cluster node group.
    • Add label mongo=true and taint designatedMongo=true:NoSchedule to the nodepool to be used for mongodb.
    mongoAtlas The fields specific to mongo atlas are as folows:
    • enable: Boolean value to decide if mongo atlas to be used. If set to false, a self managed mongo cluster will be created. If set to true mongo atlas will be used and details of which are to be provided in below mentioned fields.
    • host: URL of the mongodb atlas cluster.
    • password: password of the mongodb atlas cluster.
    • user: username in the mongodb atlas cluster.

    Example:

    mongo:
    dbIsolation: false
    mongoAtlas:
      enable: true
      host: "managed-k8s.test.mongodb.net"
      password: "samplepassword"
      user: "user1"
    install.useDockerPrivateRegistry Set this to true if the dockerhub private repository is to be used for pulling the necessary images needed. Otherwise set the value false and the container registry ACR, ECR, and GCR will be used based on the cloud provider.
    If this value is set to true, populate the below values, otherwise keep it empty.
    • dockerhub.pass: password to be used for authenticating in the dockerhub private repository.
    • dockerhub.username: username configured in the dockerhub private repository.

    Example:

    useDockerPrivateRegistry: true
dockerhub:
    pass: "testpassword"
    username: "appviewx"
    install.size The size of the installation. Based on the use cases and number of certs to be managed there different sizes (contact AppViewX for sizing recommendations). The supported size values are (case sensitive values)
    • xsmall
    • small
    • medium
    • large
    • xlarge
    • custom

    Example:

    size: small
    Note: The size provided must be taken into cluster creation and nodegroup sizes must be defined accordingly. Follow the same document link above for nodegroup sizes.
    install.plugins The list of plugins that will be installed. Each plugin will have three fields
    • enable
    • imageTag
    • name

    Set enable to true if the plugin is to be installed. If the same image tag is to be used as defined in the global ImageTag keep it latest otherwise override with some other tag of your choice.

    Example:

    - enable: true
  imageTag: latest
  name: avx-config-server
    To enable Cloud DC support in Managed Kubernetes, set plugins as follows:
    - enable: true
  imageTag: latest
  name: avx-mid-server-platform
    Note: Ensure that install.isSaasEnabled and install.kafkaCloudConnector are set to true.
    internalLoadBalancer If set to true, all the Loadbalancers will be private and can only be accessed within the VPC else it will be public.
    install.enableSftpStorage Change to true to use SFTP server for mongodb, vault, and icontrol.jar storage. Boolean (Default: false)
    install.sftpServerDetails. dbBackupPath Provide the location of mongodb backup storage directory. String (Default: “”)
    install.sftpServerDetails. vaultBackupPath Provide the location of vault backup storage directory. String (Default: “”)
    install.sftpServerDetails. sftpServerUserName Provide the username of SFTP server. String (Default: “”)
    install.sftpServerDetails. sftpServerIp Provide the sftp server IP. String (Default: “”)
    cloudConnectorEnabled A boolean value (true/false) to denote the cloud connector usage for southbound communications. If a cloud connector is used set the value to true.
    socketurl Customers can now configure their own web-socket URL in the MongoDB by updating the socketurl parameter in the .appviewxctl.yaml file. After installation or upgrade, the specified socket URL will be recorded in the saas_agent_meta collection.
    The next fields are to be filled with values that must be collected during the cluster creation and setup process and filled as mentioned below.
    Table 2. appviewxctl.yaml file - Parameters and Description (for cluster creation)
    Parameters Description of Values
    install.privateImagePullSecret In this section populate the details of the access keys needed to authenticate and pull the image from the registry. They are not needed if the Dockerhub is used as described above.
    • registry: The ACR registry URL
    • servicePrincipalPassword: The service Principal Password for accessing the registry.
    • servicePrincipalUsername: The service Principal Username for accessing the registry.

    Example:

    registry: "appviewxsample.azurecr.io"
servicePrincipalPassword: "qLPUSA4R1ALkA~GH6m4v70iAC_jajEo9T"
servicePrincipalUsername: "20892076-ct8a-4700-a7c0-178u066q9a9c"
    install.storageAccess The storage bucket details to be used for setting up backup capability.
    • bucketObject: The storage bucket access string.
    • serviceAccountAnnotation: "none"

    Example:

    bucketObject: "DefaultEndpointsProtocol=https;AccountName=sampleappviewx;AccountKey=Qy0SKtry2MR4Ik0OIG+po3p0Kgla7u4KEjlYo10jHYdVlZXP2/v4lMomkZK6s58YLsLbzkutkyjHJINuCo2Y7w==;EndpointSuffix=core.windows.net"
serviceAccountAnnotation: "none"
    The following fields must be added to integrate the kubernetes cluster to the external vault.
    Table 3. appviewxctl.yaml file - Parameters and Description (for external vault)
    Parameters Description
    install.externalVault.enable A boolean value (true/false) to denote if the external vault is to be used in the setup. True is to enable the external vault.
    install.externalVault.externalVaultAddr Contains the vault URL and listening port

    Example: https://pm-lxs-node01.lab.appviewx.net:8200
    install.externalVault.externalVaultAuthRole Name of the role created against the access kubernetes auth path
    install.externalVault.externalVaultCACertSecret Name of the secret where vault-ca.crt file is mounted.
    install.externalVault.externalVaultDBRole Static role created to access the database cred.
    install.externalVault.externalVaultEnginePath Enter the value “/database”
    install.externalVault.externalVaultKubeAuthPath The Kuberenetes access path created with cluster information for service account authentication.
    install.externalVault.externalVaultSAName The Service account used to create externalVaultAuthRole.
    install.externalVault.mongoPasswordVaultEngine Enter the value DATABASE
  8. Once the values are filled in .appviewxctl as described in the step above, proceed with the installation. Before doing so, check if the the preconditions are met by executing the command
    ./appviewxctl preflight --config .appviewxctl.yaml

    This will prompt if the necessary prerequisites are met.

  9. The metrics server in the Azure clusters comes pre-installed with the cluster, hence they must be disabled from the avx_pre_req chart.
    1. Navigate to helm_charts/avx_pre_req.
    2. Edit the values.yaml file by setting the following parameters.
      avx-metrics-server:
enable: false

      The metrics server installation is disabled.

  10. To proceed with installation, execute the command
    ./appviewxctl install --config .appviewxctl.yaml
    Note: The installation will take several minutes to complete. Upon completion you see the following message:

    [Install] Successfully installed Appviewx infra stack

    This would imply the completion of infra component setup.

  11. This step involves restoring the existing data from the previous AppViewX version’s cluster in case there is a need to migrate from the older versions to the Managed K8s version. Ignore this step if it's a fresh setup with no migration necessary.

    To restore mongodb and vault fetch the backup files and place them in the bastion in a directory such as /home/user/backup execute the mongo_restore and vault_restore scripts as follows:

    Note: Before you trigger the mongo_restore.sh command, ensure that the mongo restore file has the file extension as .tar.gz.
    ./mongo_restore.sh <mongo backup tar filepath>
    ./vault_restore.sh -p <vault backup filepath> --removedek
    Attention: If the data is being restored from an older version (2020.3.0 - 2022.1) then use the command
    ./vault_restore.sh -p <vault backup filepath> --removedek
    Note:
    • The backup files must have extension as .tar.gz
    • The above commands work for a self-managed mongodb setup. Setting up the mongodb atlas requires the installation of mongodb tools in the bastion host as described below.
    For an rpm based OS:
    echo -e "[mongodb-org-4.2] \nname=MongoDB Repository\nbaseurl=https://repo.mongodb.org/yum/redhat/\$releasever/mongodb-org/4.2/x86_64/\ngpgcheck=1\nenabled=1\ngpgkey=https://www.mongodb.org/static/pgp/server-4.2.asc" > /etc/yum.repos.d/mongodb-org-4.2.repo
yum install mongodb-org-shell-4.2.0
yum install mongodb-org-tools-4.2.0
    For a debian based OS:
    wget -qO - https://www.mongodb.org/static/pgp/server-6.0.asc | sudo apt-key add -
sudo apt-get install gnupg
wget -qO - https://www.mongodb.org/static/pgp/server-6.0.asc | sudo apt-key add -
echo "deb [ arch=amd64,arm64 ] https://repo.mongodb.org/apt/ubuntu focal/mongodb-org/6.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-6.0.list
sudo apt-get update
sudo apt-get install -y mongodb-mongosh
sudo apt-get install -y mongodb-org-tools
    Verify if the mongo restore commands have executed successfully using the command
    mongorestore -- version
  12. To proceed with the AppViewX application installation, execute the command:
    ./appviewxctl installapp --config .appviewxctl.yaml

    Once installation is complete the following messages are displayed:

    [Install] Appviewx infrastructure chart [avx-app] installed successfully
[Install] Successfully installed Appviewx application stack
[Install] Fetching login URL for app
[Install] Waiting for Public IP allotment for istio service
[Install] AppViewX Web URL: https://34.100.197.159/appviewx/
[Install] AppViewX Gateway URL: https://34.100.197.159/avxmgr/
[Install] Grafana URL: https://34.100.197.159/grafana/
[Install] Kibana URL: https://34.100.197.159/kibana/login
[Install] Run below commands to get mongo user credentials
	export MONGO_USER=$(kubectl get secret -n avx mongo-key -o=jsonpath='{.data.mongo-init-user}' | base64 -d)
	export MONGO_PASS=$(kubectl get secret -n avx mongo-key -o=jsonpath='{.data.mongo-init-pass}' | base64 -d)
[Install] Run below commands to get Elasticsearch and Kibana credentials
	export ES_PASS=$(kubectl get secret -n avx elasticsearch-pw-elasticsearch -o=jsonpath='{.data.password}' | base64 -d)
	export KIBANA_PASS=$(kubectl get secret -n avx elasticsearch-pw-kibana -o=jsonpath='{.data.password}' | base64 -d
[Install] Application Installation completed successfully
    Note: Follow the URLs and commands given in the output message to get the credentials and access the application.
  13. To proceed with the CC installation, ensure that the CC binaries are uploaded first by running the following command:
    ./appviewxctl ccDBDump --config .appviewxctl.yaml
  14. If installation of the third party monitoring components was not enabled during the entire process, they can be installed later by the following steps:
    1. While installing the third party components (helm_charts/avx_third_party/values.yaml), the only that values are set to 'true' by default are - prometheus, nodeexporter, kube-state metrics. The other components are set as 'false' by default and must be to set to true if they are to be enabled, they are - elk-elasticsearch, elk-filebeat, elk-kibana, elk-logstash, grafana, elasticsearch-insight, logstash-syslog.
    2. Edit the .appviewxctl.yaml file and set install.enableThirdPartyInstall to ‘true’
    3. Configure the following thirdPartyApp parameters as true as per the requirements:
      • install.thirdPartyApp.elk
      • install.thirdPartyApp.monitoring
      • install.thirdPartyApp.insight
    4. Now, edit the file values.yaml present at location helm_charts/appviewx_monitoring/prometheus/chart/values.yaml and append the below values at the end of the file (only if that are not present).

limits:
  cpu_limit: 80
  memory_limit: 80
  disk_limit: 80
  timelimit_cpu_memory: 5
  timelimit_disk: 1
  timelimit_pod: 1
  timelimit_node: 1
    5. Run the command below
      ./appviewxctl installtpt --config .appviewxctl.yaml
What to do next:
  1. If you have to install the Helm based CC, then parch the internal tenant secret, using the command below:
    kubectl patch secret internal-tenant -n avx --type='json' -p='[{"op": "add", "path": "/data/REPO_AUTH_TOKEN", "value": "<repoauthtokenvalue>"}]'
    Once the command is executed, restart the saas-proxy.
  2. Customers migrating from AppViewX version 2020.3.0 to Managed Kubernetes, it is mandatory to upgrade the license.
    1. Login to the AppViewX with valid credentials.

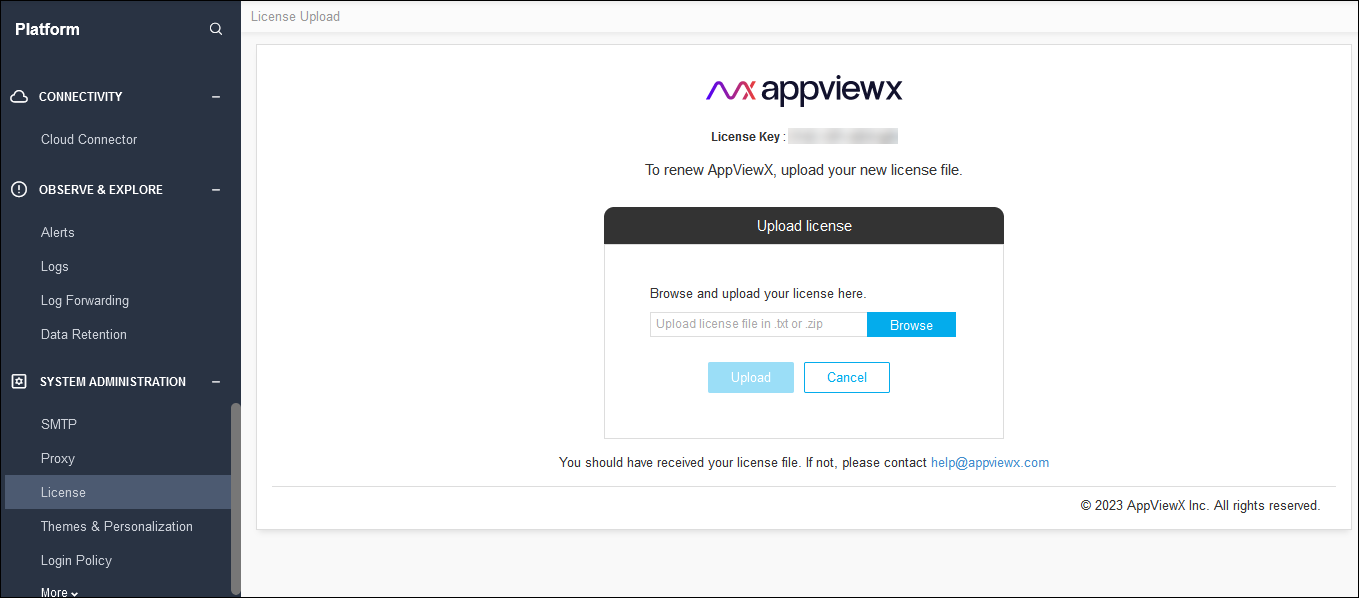

    2. Navigate to Platform >> System Administration >> License page.
    3. Click Upgrade License.
    4. Click Browse to find the latest license key file.
    5. Click Upload.
      Note: For the licenses contact AppViewX Support at [email protected] or [email protected].
