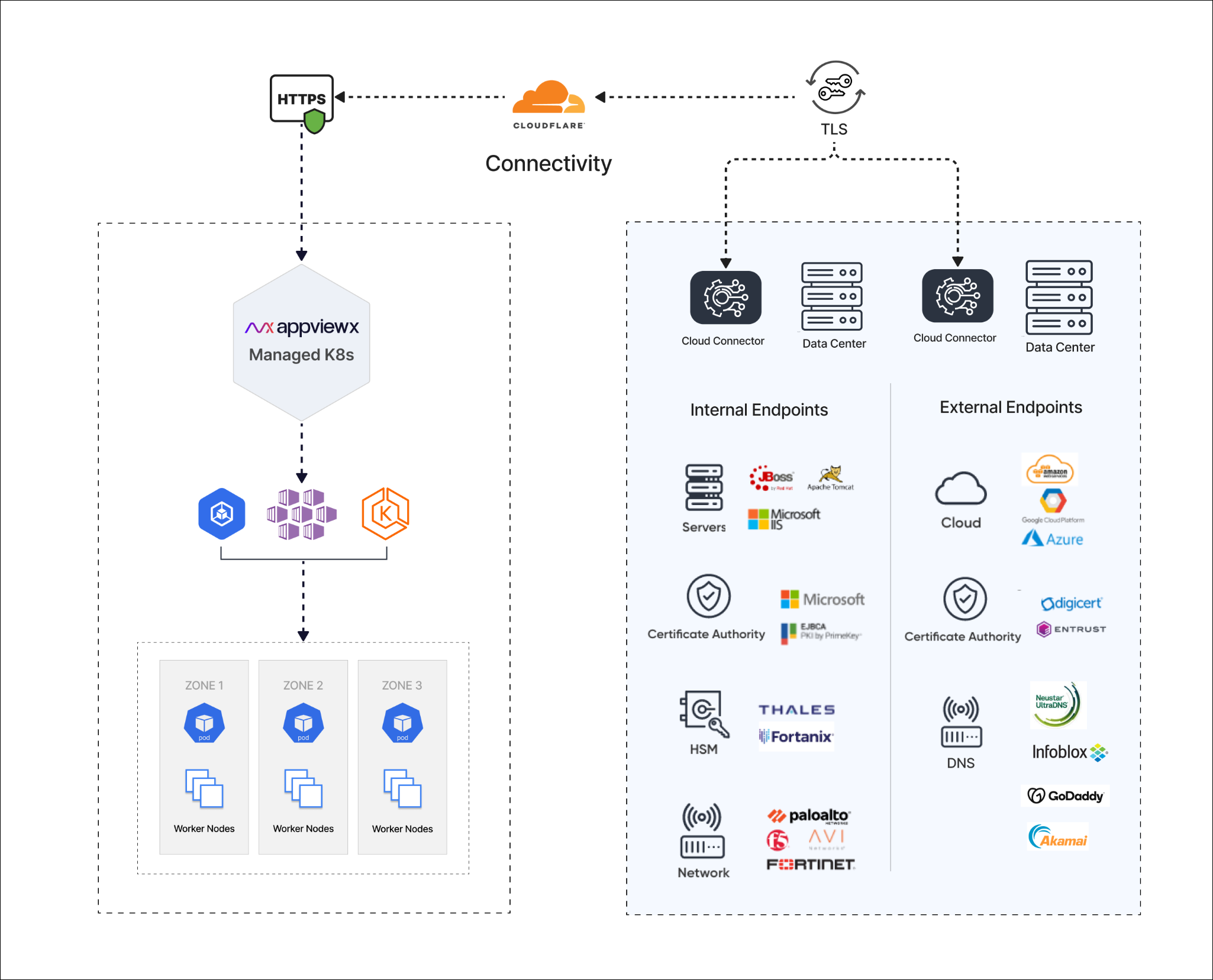

AppViewX Deployment Architecture

The figure below shows a standard AppViewX deployment architecture model via managed Kubernetes service for AKS.

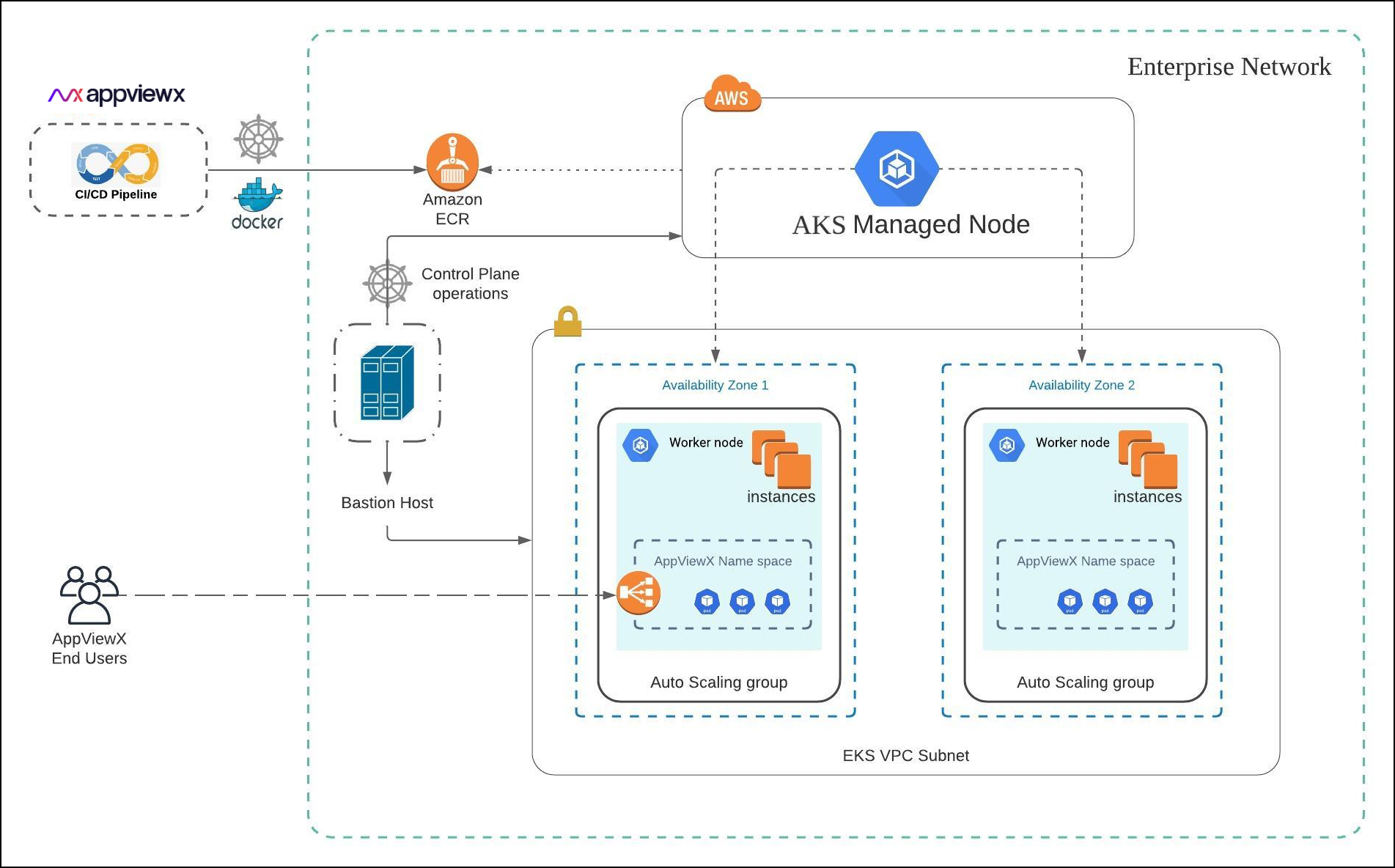

AKS Deployment Model

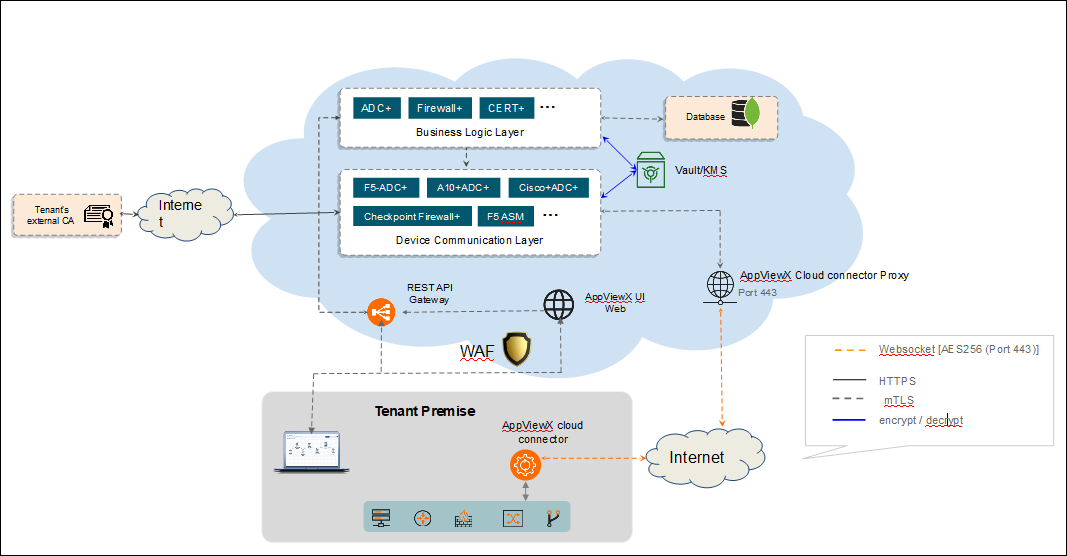

Cloud Connector

AppViewX Cloud Connector is a lightweight plug-in that establishes connectivity between AppViewX Cloud and the Enterprise Network. The cloud connector serves as a secure channel for communication between AppViewX and your enterprise network without requiring any complex network or infrastructure configuration

Key features of the AppViewX Cloud Connector:

  • A self-serviceable, Linux-based lightweight setup

  • Secure communication between the AppViewX and the AppViewX Cloud Connector using TLS and AES encryption

  • Connectivity from the AppViewX to the enterprises’ network endpoints

  • No complex network setup (Inbound Firewall Whitelisting, VPN setup, and so on)

For more details on cloud connectors refer to AppViewX Cloud Connector User Guide.
Note: The below steps have to be performed in all the cloud connector host machines after the 2022.1.0FP2 to FP3 patch upgrade and before the FP3 cloud connector upgrade.
  1. Navigate to the installation path in the cloud connector host machine.
  2. Execute the following command:
    ./deps/tools/k3s kubectl get deploy avx-mid-server-starter -n cc -o yaml > starter.yaml && sed -i "s/-Xmx2560m/-Xmx4g/g" starter.yaml && ./deps/tools/k3s kubectl replace -f starter.yaml
