Modify F5 GTM WideIP Advanced

This workflow modifies an existing WideIP and/or its Pool details, which is associated with the WideIP, and manages Pool members.

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the F5 BIG-IP GTM category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Modify F5 GTM WideIP Advanced workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Modify F5 GTM WideIP Advanced :: FormBuilder page is displayed.
  5. Enter/select the Device Details, Wide IP Details, Pool, and Pool Member Details of the device that are to be modified.
  6. On the Validation Details section, click Form Validation.
    The validation starts and the results are displayed in the Validation Status box.
  7. On the RBAC Details section, search and select the resource from the dropdown list.
  8. If required, update the necessary details of Device, WIP, pool, and pool member, and then click Submit.
    The validation starts automatically and reaches the Review stage.
    Note:
    • If you want to save this form to edit it later, click the Save Draft button, and then click Ok in the Confirmation popup window. The form will be saved as Open request under Request > My Request.
    • If you want to cancel this form, click the Cancel button.

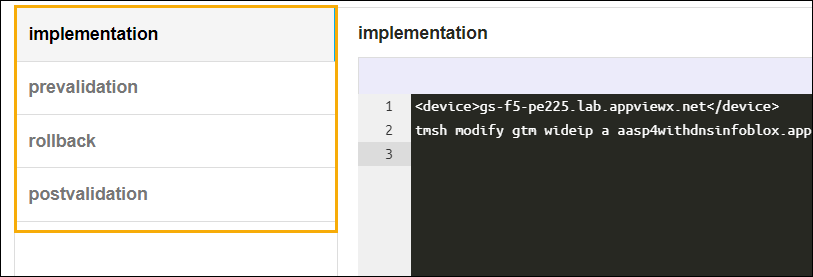

  9. Review the input data under the implementation, rollback, and postvalidation tabs.

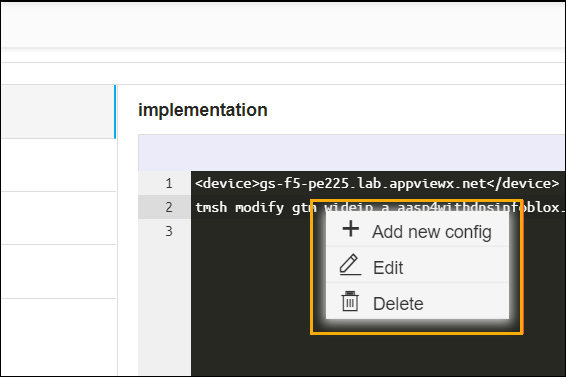

  10. (Optional) If you need to change any data at this stage, right click and select the required option.
  11. After the review, click Submit.
    The Confirmation dialog box is displayed.
    Note: To stop running the workflow creation, click Cancel.
  12. Click Ok to continue the workflow creation.
    It takes a while to complete the request.

    The workflow is created and the email is triggered to the configured email IDs.

    Note: The stages of the request are shown in the left side of the screen. To view a particular stage of the request, click the respective stage.
