Create F5 GTM WideIP Basic

This workflow generates a GTM WideIP with a single pool for a device.

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the F5 BIG-IP GTM category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Create F5 GTM WideIP Basic workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Create F5 GTM WideIP Basic :: FormBuilder page is displayed.
  5. Enter/select the Device Details.
    Table 1. Device Details Section - Field and Description Table
    Field Description
    *Datacenter Displays the list of datacenters of the devices, which are created in the Device Inventory. Select the datacenter of a device from the drop-down option for which this request is to be created. For the devices which are created without a datacenter in the Device Inventory, select the datacenter as None.
    *Device Name Displays the list of devices associated with the selected datacenter. If the datacenter is selected as None, the devices that are created without datacenter details are listed. Select the desired device from the drop-down option.
    *Partition Partition in which objects will be created. If you want to create a new partition, then click Create New Partition from the dropdown list and then provide a partition name.
  6. Enter/select the DNS Details.
    Table 2. DNS Details Section - Field and Description Table
    Field Description
    *Do you want to integrate with DNS

    By default, the No option is selected. If you want to integrate with DNS for CNAME record creation, select Yes.

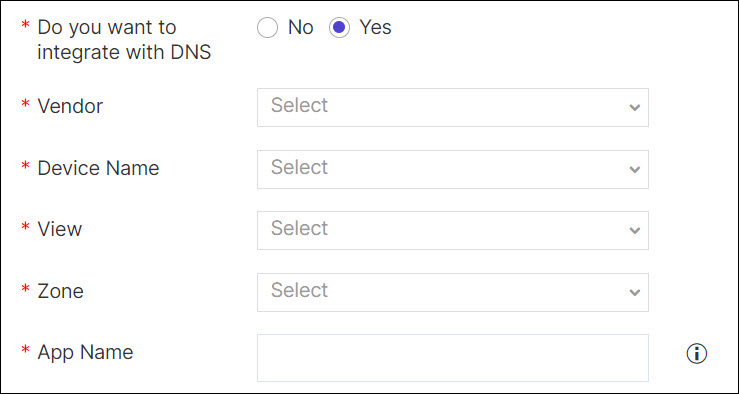

    When you select Yes, the following fields are displayed:

    • Vendor - Select the DNS provider or the technology/service from the drop-down list to manage DNS records. The default vendors are: Infoblox and bluecat.

    • Device Name - Select the Device Name from the drop-down list associated with the DNS record.

    • View - Select a view to which a DNS record belongs from the dropdown list.

    • Zone - Select a zone associated with a specific domain or subdomain from the dropdown list.

    • App Name- Enter the an application name associated with the DNS record. Ex: For the WideIP, name in the format www.<name>.com.
      Note: Avoid appending the zone at the end of the app name; it will be automatically included based on the previously specified zone.

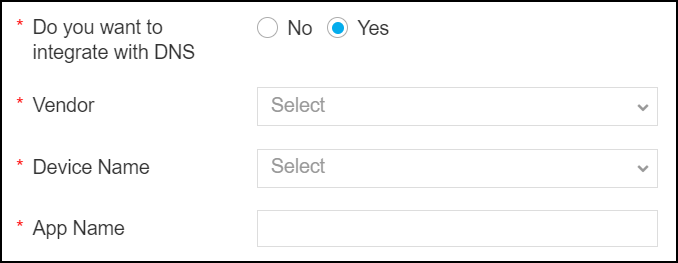

    When you select DNS vendor as bluecat, you need to provide the following details:If you select bulecat as the vendor, choose the configuration from the dropdown list, in addition to the previously specified details.
  7. Enter/select the General Properties.
    Table 3. General Properties Section - Field and Description Table
    Field Description
    *Wide IP Name Enter the WideIP Name in the FQDN format. For example, <yyy>.www.<name>.com.
    *Type Select the pool/WideIP type. The types are:
    • A - the pool/Wide IP responds to A queries. The A pool/Wide IP is a mapping of an FQDN to a set of IPv4 virtual servers that host the domain's content, such as a Web site or an e-commerce site. You can also specify pool members' virtual server and ratio settings.
    • CNAME - the pool/Wide IP responds to CNAME queries. A CNAME pool/Wide IP is a mapping of an FQDN to its canonical name. This is the configuration of a static name or a Wide IP name. Static names support older configurations. Wide IP names allow service checking, enhanced load balancing, and CNAME chasing in the reply. You can also specify pool members' ratio.
    Description Enter the descriptive text to identify the WideIP.
    State

    It allows the system to use this wide IP and its resources for load balancing. The options are:

    • enabled (default)
    • disabled
    *Do you want to add Alias ?

    Add Alias for the WideIP name. The options are:

    • No (default)
    • Yes – When you select Yes, the following fields are displayed to add alias details:

      Enter the alias name for WideIP in the Alias field. You can add any number of aliases for WideIP. After entering the alias in the Alias field, click to add an alias. The added aliases are displayed under the Alias List. You can manage the added alias(es) to the list.
  8. Enter/select the Pool details.
    Note: The pool will be created with the name pool_<wideip_name>.
    Table 4. Pool Section - Field and Description Table
    Field Description
    *Load Balancing Method The load balancing method is used to select a pool in this WideIP. The methods are:
    • round-robin - the system selects the pools sequentially.
    • global-availability -. the system selects a pool by following the order of the Pool List. The system repeatedly selects the first pool in the list for as long as its status is available. If the pool becomes unavailable for any reason, the system then repeatedly selects the next pool in the list, and so on.
    • ratio - the system selects a pool based on the ratio that you assign to the pool.
    *Persistence By default, this option is disabled. When, a local DNS makes repetitive requests on behalf of a client, the system reconnects the client to the same resource as previous requests.
    Preferred

    Select the preferred load balancing method. The system tries this method first.

    Note: When you choose the fallback-ip option, the Fallback IP field will be displayed and you need to input the Fallback IP.
    Alternate

    Select the alternate load balancing method. The system tries this method if the Preferred method is unsuccessful in picking the WideIP.

    Note: When you choose the fallback-ip option, the Fallback IP field will be displayed and you need to input the Fallback IP.
    Fallback Select the alternate load balancing method. The system tries this method if the Preferred and Alternate methods are unsuccessful in picking the WideIP.
    Fallback IP When the fallback-ip option is selected as Preferred or Alternate load balancing method, this field will be displayed to add the Fallback IP. The Fallback IP is not applicable for the pool type CNAME.
    Health Monitor The health monitors that the system uses to determine whether it can use this pool for load balancing. To get the fields to be monitored, click the Retrieve button, and then select the
  9. Enter/select the Pool Member Details.
    Table 5. Pool Member Details Section - Field and Description Table
    Field Description
    *Pool Member Type

    Select the pool member types. The pool member types are:

    • Generic Host – When you select this pool member type, you get the option to select the Generic Host Type.
    • Big IP System – When you select this pool member type, you get the option to select the configured virtual servers under the BIG IP System.

    Note: It takes a while to load the servers.

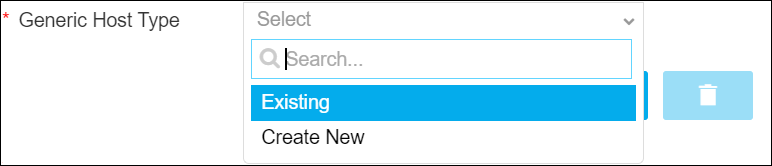

    *Generic Host Type

    When the pool member type is selected as Generic Host, you need to select the type of generic host. The generic host types are:

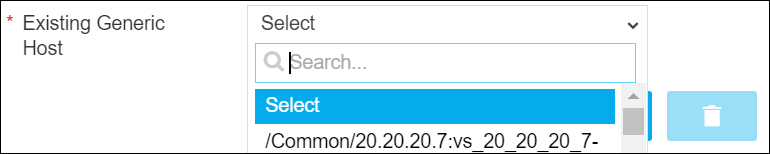

    • Existing – This option allows to select the existing host. When you select this option, the existing generic hosts are displayed. Select the generic host from the drop-down option.
    • Create New – This option allows you to create a generic host. When you select this, the following fields are displayed. Enter/select the required details:
      • *Data Center – select the datacenter of the pool member.
      • *Pool Member IP – enter the IP of the pool.
      • *Port – enter the port of the pool member.

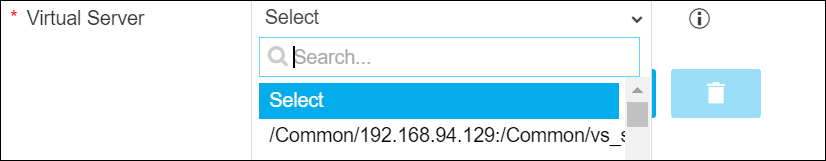

    *Virtual Server When the pool member type is selected as Big IP System. Select a virtual server from the dropdown list.
    *Pool Member List Enter the pool member details, and then click the Add button. The pool member details are added to the pool member list. Any number of pool numbers can be added to the pool. After adding the pool, you can manage them.
    Note: For Pool with type CNAME, pool members can be either existing wide IP or a static wide IP.
  10. Click Submit.
    The Confirmation dialog box is displayed.
  11. To save this form so you can edit it later, click Save Draft and then click OK.
    The form will be saved as Open request under Request > My Request.

    OR

    To submit the form, click OK.

    The validation starts automatically and reaches the Review stage.
    Note:
    • If there is any failure at this stage, start a new request by providing the correct data.
    • Alternatively, select the failed request and clone it. Update the correct input data in the form input, and submit the workflow again.

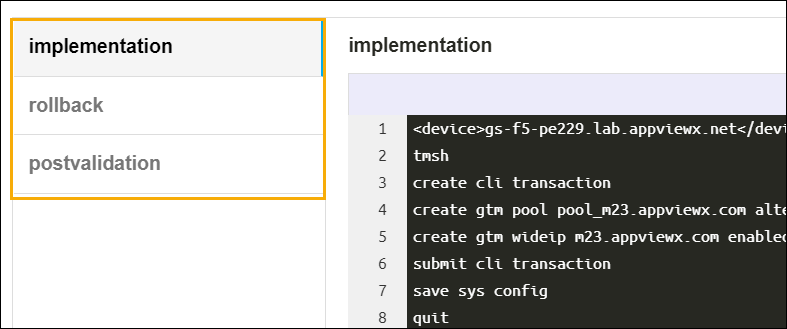

  12. Review the input data under the implementation, rollback, and postvalidation tabs.

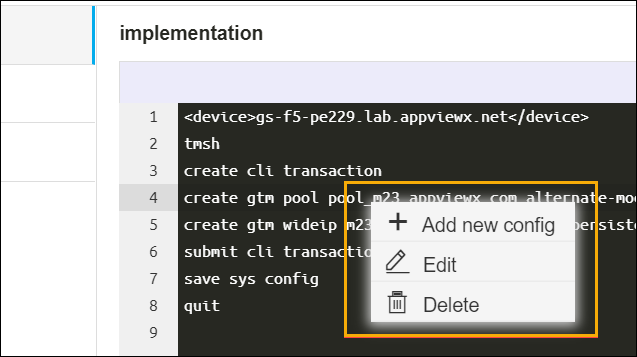

  13. (Optional) If you need to change any data at this stage, right click and select the required option.
  14. After the review, click Submit.
    The Confirmation dialog box is displayed.
    Note: To stop running the workflow creation, click Cancel.
  15. Click Ok to continue the workflow creation.
    It takes a while to complete the request.

    The workflow is created and the email is triggered to the configured email IDs.

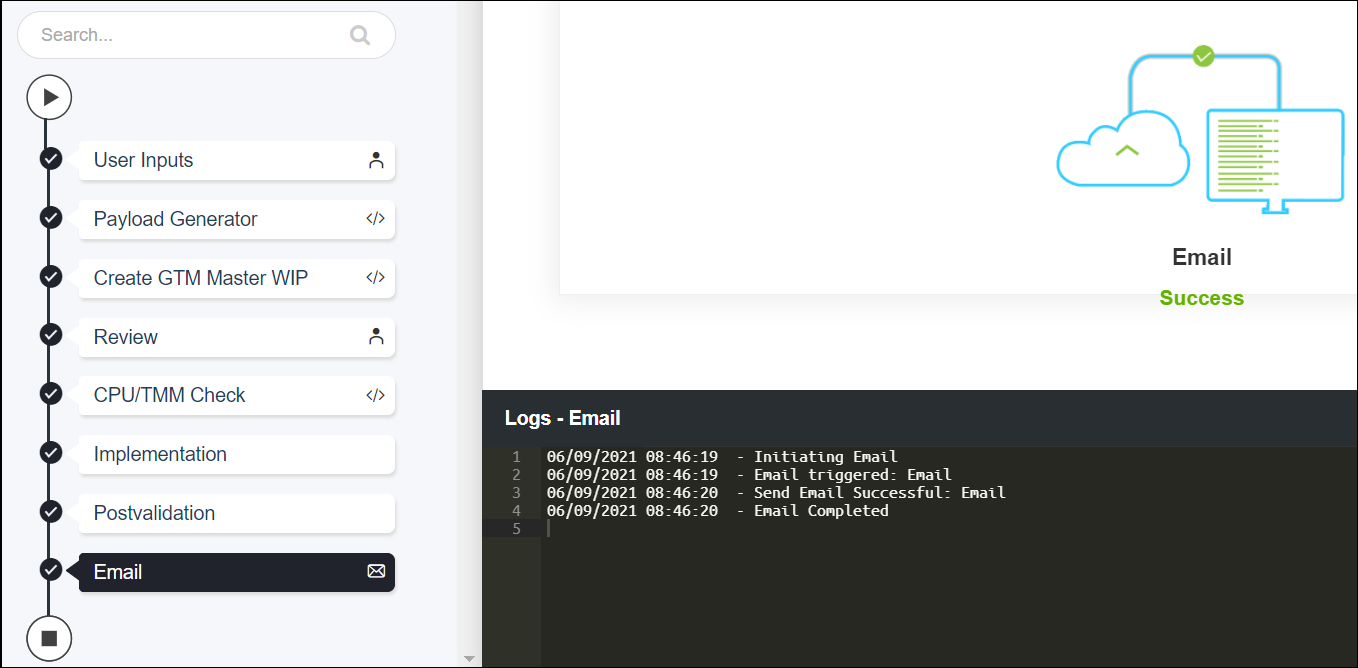

    Note: The stages of the request are shown in the left side of the screen. To view a particular stage of the request, click the respective stage.
