Delete F5 GTM WideIP Advanced

This workflow deletes an existing WideIP. On deleting a WideIP, associated Pool, Pool members, Topology, Monitor, and Servers with the WideIP are deleted if they are not associated with any other WideIP.

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the F5 BIG-IP GTM category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Delete F5 GTM WideIP Advanced workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Delete F5 GTM WideIP Advanced :: FormBuilder page is displayed.
  5. For the device to be deleted, select the Device Details and Wide IP Details.
  6. Click Submit.
    The validation starts automatically and reaches the Review stage.
  7. To save this form so you can edit it later, click Save Draft and then click OK.
    The form will be saved as Open request under Request > My Request.

    OR

    To submit the form, click OK.

    The validation starts automatically and reaches the Review stage.
    Note:
    • If there is any failure at this stage, start a new request by providing the correct data.
    • Alternatively, select the failed request and clone it. Update the correct input data in the form input, and submit the workflow again.

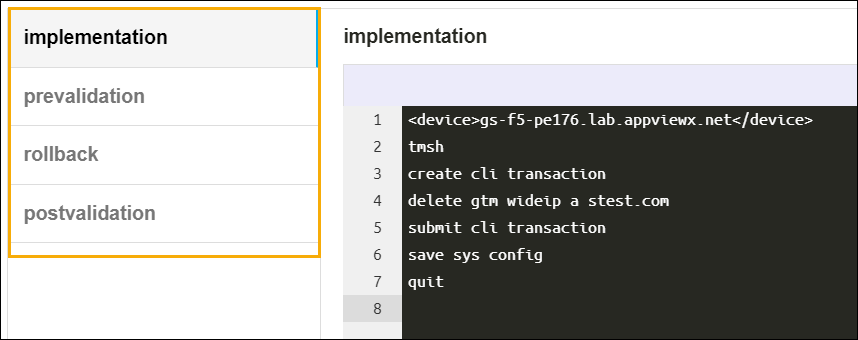

  8. Review the input data under the implementation, rollback, and postvalidation tabs.

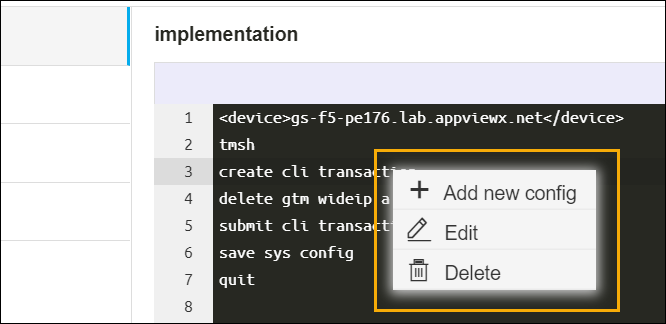

  9. (Optional) If you need to change any data at this stage, right click and select the required option.
  10. After the review, click Submit.
    The Confirmation dialog box is displayed.
    Note: To stop running the workflow creation, click Cancel.
  11. Click Ok to continue the workflow creation.
    It takes a while to complete the request.

    The workflow is created and the email is triggered to the configured email IDs.

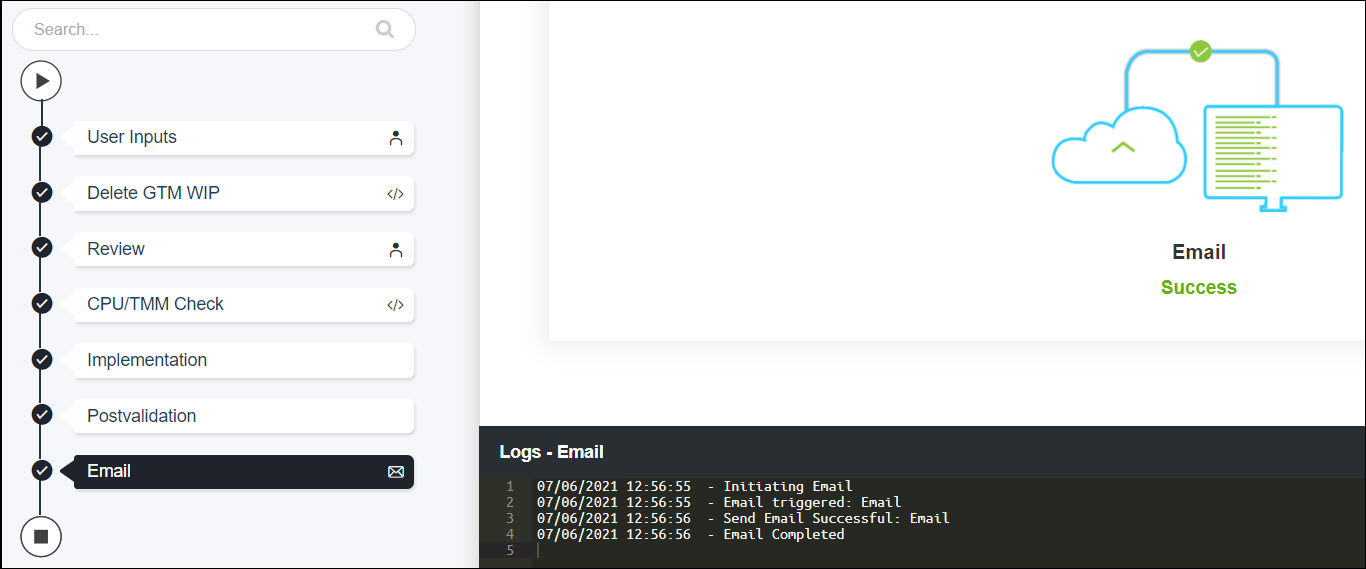

    Note: The stages of the request are shown in the left side of the screen. To view a particular stage of the request, click the respective stage.
