IP Address Inventory

The IP address inventory offers a thorough overview of all IP addresses within the network infrastructure. Users can access detailed information on IP configurations, associated attributes, and relevant network details across the IPAM, CMDB and Load Balancers. The IP Address Inventory provides a centralized view, enabling effective management and understanding of the entire IP address landscape across the network infrastructure.

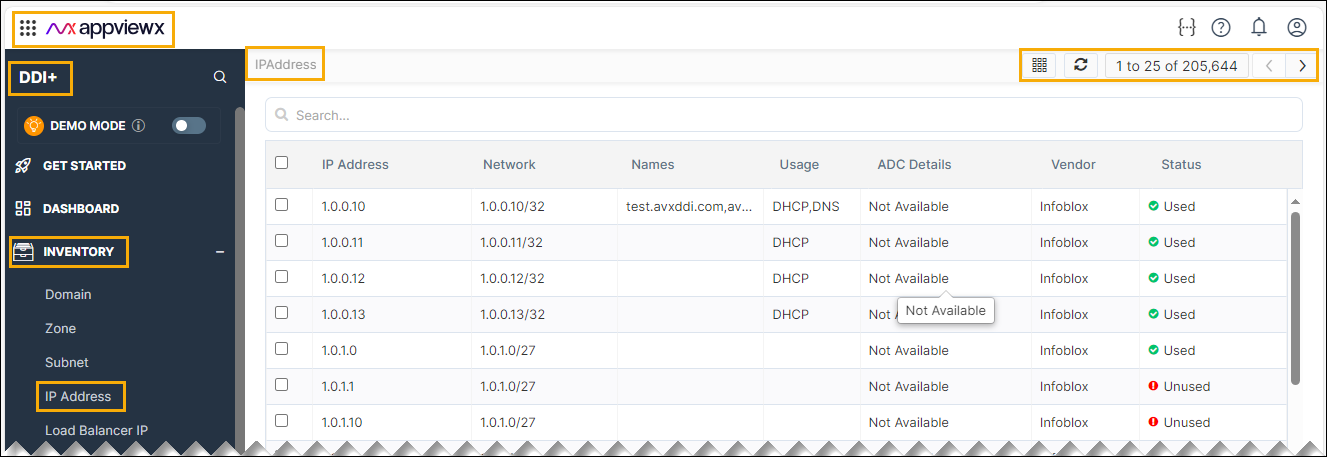

  1. Go to DDI+ > Inventory, and then click IP Address.

    The IP Address inventory page appears.

    Note: This inventory includes a column labeled ADC Details, indicating that the ADC details are available for each IP. This column comprises two values:
    • Available
    • Not Available
    If the Available is indicated, you can click on the hyperlink associated with the Available text to access and view the corresponding ADC details linked to the respective IP address.

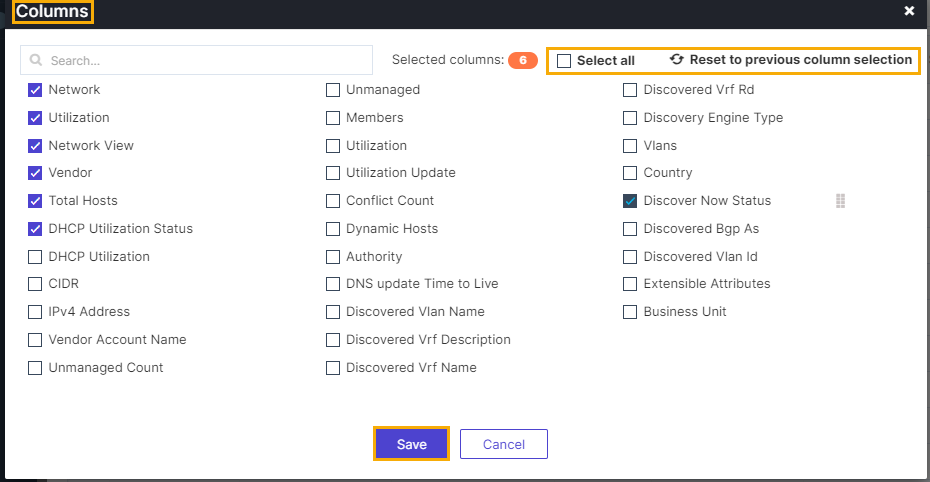

  2. Click the (Columns) icon to display to required columns on the subnet dashboard.
    The columns inventory page appears.
    Note:
    • You can use the search bar, and filter the search results by selecting the options from the dropdown.
    • Column to be selected may contain the fileds from the CMDB configured in DDI+ platform.
    1. Click the checkbox that to be displayed on the subnet inventory page.
    2. Click Save.
