Automating CLM for F5 Devices

Prerequisites

  1. Download:
  2. Copy both the JAR files to an AppViewX node as the installed user.
    • On-prem: Place the JAR files in the appviewx_dependencies/external_libs/ folder within the AppViewX installation directory.
    • SaaS: Place the JAR files in deps/external_libs where the cloud connector is installed.
  3. Ensure the following prerequisites are met:
    • Version Supported: v11.x , v12.x , v13.x, v14.x, v15.x, v16.x, v17
    • IP Address/FQDN: IP address or FQDN
    • User Privilege: { Role : Admin , bash access is required } Username /Password, Credential List AppViewx/CyberArk
    • Enable Password: Not applicable
    • License Check: Yes
    • Services and Ports for AppViewX Communication: 22 and 443
    • Internet Access/Proxy if Required: Not applicable
    • Location from which Certificates are discovered if managed:
      • /config/filestore/files_d/<partition>_d/certificate_d/
      • V10
      • /config/ssl/ssl.crt/
      • /config/httpd/conf/ssl.crt/
  4. For SaaS, restart only the appviewx-platform-gateway pod in CC whereas for on-prem, restart avx-vendors pod.

Onboarding F5 Device

Onboarding F5 Device

  1. Go to Menu > ADC+ > ASSET MANAGEMENT.
  2. Perform one of the followings:
    • Click Device Inventory, and then select Add (+) icon to navigate to the Device details page.
    • Click Onboard Device in the left navigation panel.
  3. In the Device details page, click the F5 icon.
  4. Enter or select the field information in the General information section.
    1. For the device type Device/Tenant:
      Table 1. General information Section for "Device/Tenant" Device Type - Field and Description Table
      Name Type Description Validation
      Device Type Drop-down When you select Device Type as Device/Tenant, you will need to provide the relevant device information in the following fields. NA
      *Module Check box LTM / BIG-IP DNS Module. NA
      VCMP Guest Check box To add a device as a vcmp guest, this checkbox should be checked. NA
      *Device name Text Unique name of the device to be added. Device names can only contain alphanumeric characters, '-' , '_' , '.' , '*' , '|' , '!' and spaces.
      Data center Text Data center name where the device is configured. The default value is Absecon. Data center name can only contain alphanumeric characters, '-' , '_' , '.' , '*' , ':' , '|' and spaces.
      *Communication Radio button Devices can be accessed using an IP address or FQDN. NA
      *IP Address Text The ipv4 address of the device. The IP address should be a valid IPv4 format.
      *FQDN Text The FQDN of the device. the FQDN should be in a valid format.
      *SSH Port Text Communication port of the device. Numbers only.
      *Cert Sync Radio button

      Managed: The certificates of the device can be managed.

      Monitored: The certificates of the device can be monitored.

      Ignored: The certificate sync can be ignored.

      		 NA
      DNSSEC sync Radio button By default, the Ignored option is selected. If your ADC acts as an authoritative DNS server, then select the Managed option to manage the DNSSEC Zones and Keys (KSK and ZSK).
      AppViewX Group Sync Check box This should be enabled if the user wants to sync the devices within the device group. NA
      LB Sync Checkbox By default, this option is enabled to discover and manage the load balancer configurations. If not required, you can disable this option.
      *: Mandatory fields
    2. For the device type Host:
      Table 2. General information Section for "Host" Device Type - Field and Description Table
      Name Type Description Validation
      Device Type Drop-down When you select Device Type as Host, you will need to provide the relevant device information in the following fields. NA
      Host Type Radio button Select any of the following host types:

      • vCMP Host - Enables the running of multiple virtual instances of BIG-IP software on a single physical device

      • rSeried Host - A host type representing the F5 rSeries hardware platform, designed for high-performance application delivery and security.

      • Velos Partition - A logical partition on the F5 VELOS platform, allowing for the segmentation of resources and management of multiple tenants within a single VELOS chassis.
      		 NA
      *Device name Text Unique name of the device to be added. Device names can only contain alphanumeric characters, '-' , '_' , '.' , '*' , '|' , '!' and spaces.
      Data center Text Data center name where the device is configured. The default value is Absecon. Data center name can only contain alphanumeric characters, '-' , '_' , '.' , '*' , ':' , '|' and spaces.
      *Communication Radio button Devices can be accessed using an IP address or FQDN. NA
      *IP Address Text The ipv4 address of the device. The IP address should be a valid IPv4 format.
      *FQDN Text The FQDN of the device. the FQDN should be in a valid format.
      *SSH Port Text Communication port of the device. Numbers only.
      *: Mandatory fields
    3. For the device type Controller:
      Table 3. General information Section for "Controller" Device Type - Field and Description Table
      Name Type Description Validation
      Device Type Drop-down When you select Device Type as Controller, you will need to provide the relevant device information in the following fields. NA
      *Device name Text Unique name of the device to be added. Device names can only contain alphanumeric characters, '-' , '_' , '.' , '*' , '|' , '!' and spaces.
      Data center Text Data center name where the device is configured. The default value is Absecon. Data center name can only contain alphanumeric characters, '-' , '_' , '.' , '*' , ':' , '|' and spaces.
      *Communication Radio button Devices can be accessed using an IP address or FQDN. NA
      *IP Address Text The ipv4 address of the device. The IP address should be a valid IPv4 format.
      *FQDN Text The FQDN of the device. the FQDN should be in a valid format.
      *SSH Port Text Communication port of the device. Numbers only.
      *: Mandatory fields

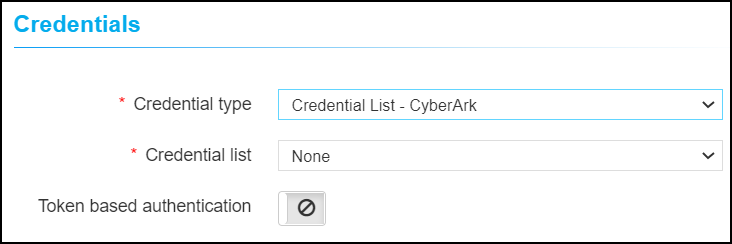

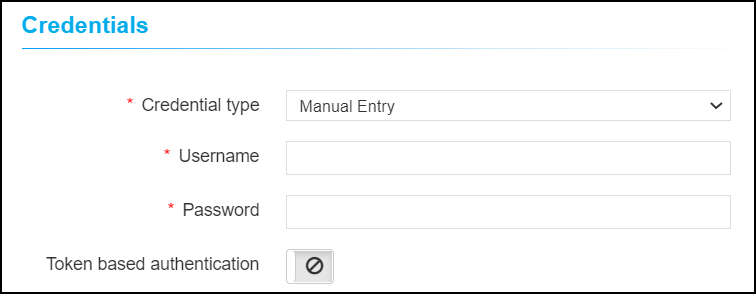

  5. Enter or select the field information in the Credentials section. You can select Manual Entry or Credentials List.
    Table 4. Credentials Section - Field and Description Table
    Name Type Description Validation
    *Credential type Dropdown
    Manual entry: The user should enter the username and password.
    Credential List: The user can select the credential details which are already stored in the credential inventory page. For more details on secure authentication, refer to Platform User Guide.
    		 NA
    *Username Text The user name of the device. NA
    *Password Text The password of the device. NA
    Token based authentication Toggle button To access the device REST API using token. NA
    *: Mandatory fields
  6. Enter or select the field information in the Secondary device information section.
    Table 5. Secondary device information Section - Field and Description Table
    Name Type Description Validation
    Secondary device information Radio button

    Auto detect: The user should select this option to auto-detect and add the peer devices in the inventory page.

    Manual entry: The user can use this option to add the peer devices manually.

    Ignore: The user can use this option to ignore the auto-detection of the peer devices.

    		 NA
  7. Click Save.

Validating the F5 Device Onboarding

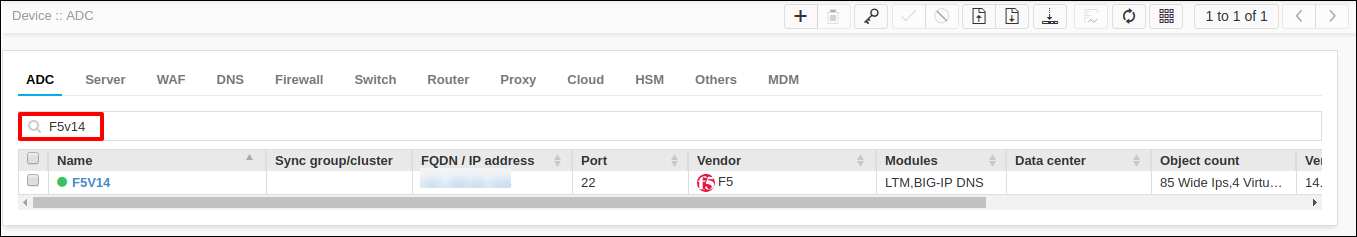

  1. Go to Menu > ADC+ > ASSET MANAGEMENT > Device Inventory.
  2. From the device inventory page, search for the added F5 device name.

Onboarding Certificates for F5 Devices

There are two ways you can onboard certificates in AppViewX:
  • Via certificate discovery, for existing certificates
  • Via certificate enrollment, for new certifcates

Discovering Certificates for F5 Devices

Prerequisites

  • User Permission Required: Administrator/ Certificate Manager role
  • Terminal Access: Advanced Shell or TMSH

    Certificate discovery involves downloading certificate and key files from the device via SFTP. This method is accessible only to F5 users with Advanced Shell access. Refer to the relevant F5 article (https://my.f5.com/manage/s/article/K16621651) for detailed instructions.

    For users without Advanced Shell access, SFTP attempts will fail as explained in the aforementioned F5 article. In such instances where SFTP fails, certificates and key files are retrieved using SCP.

    F5 imposes restrictions on SCP access to specific paths listed in the scp.blacklist file. During discovery, encountering route limits in F5 may result in SCP download errors ("Unable to download") in the log. In such cases, two alternatives are available (and either can be chosen):
    • Use REST API(s) to download the files from the device by running:
      db.cert_metadata.update({"_id": "CERT_VENDOR_BASED_CONDITIONS"},{"$set": {map.adc_f5_discover_certs_with_rest" : "true"}});
    • Remove the following paths accessed via AppViewX from the scp.blacklist file path accessed from AppViewX:
      • /config/filestore/files_d/
      • /config/ssl/ssl.crt/
      • /config/ssl/ssl.key/
      • /config/httpd/conf/ssl.crt/
      • /config/httpd/conf/ssl.key/
    • Remove these paths and restart sshd based on the steps mentioned in the F5 article: https://my.f5.com/manage/s/article/K73463547

Discovering Certificates for F5 Devices

  1. Go to (Menu) > CERT+ > CERTIFICATE DISCOVERY > Discovery > Managed Devices Scan.
    The Discovery : Managed Devices Scan : Add Discovery page is displayed.
  2. To initiate a managed devices scan, enter the Discover Details.
    1. To specify the frequency at which the certificate discovery scan will be triggered, select the Discovery Run Type.
      Table 6. Discovery run type options
      Field Description
      On-demand The certificate discovery scan will be triggered manually by the user as and when required.
      Scheduled The certificate discovery scan will be triggered automatically at the specified time and date.
    2. Enter the details for initiating an on-demand managed devices certificate discovery scan.
      Table 7. Field descriptions for on-demand discovery
      Field Description
      Discovery Instance Name Enter a name for the discovery instance.
      Description Enter additional details related to the discovery option.
      Note: Character limit: 2000 characters

      OR

      Enter the details for initiating a scheduled managed devices certificate discovery scan.

      Table 8. Field descriptions for scheduled discovery
      Field Description
      Discovery Instance Name Enter a name for the discovery instance.
      Description Enter additional details related to the discovery option.
      Note: Character limit: 2000 characters
      Occurrence Type
      From the dropdown list, from the following options, select an occurrence frequency:
      • Daily
      • Weekly
      • Monthly
      • Yearly
      *Repeat On
      Note: This field is displayed only when Occurrence Type = Weekly.
      Select the checkbox corresponding to the day of the week on which you want the discovery occurrence to repeat.
      *Starts On Click (Calendar widget) to select a date to start the scheduled discovery.
      *Ends From the following options, select when the scheduled discovery is to end:
      • Never: Discovery never stops.
      • After: Discovery stops after the number of occurrences specified in the text field.
      • On: Discovery stops on the date selected using (Calendar widget).
      Summary Displays a summary of the selections made for scheduled discovery
      *: Mandatory fields
  3. In the Discover By section, enter the discovery details.
    Table 9. Instruction for discovering certificates
    Field Description
    *Discovery From From the dropdown list, select Managed ADCs.
    Devices window A list of all the managed ADC devices is displayed in the devices window.

    To select devices for certificate discovery, select the checkbox(es) for the required devices.

    The devices window has the following option:

    • Add as Favorites: You can mark your frequently used devices as favorites.
    • All: Select this to see the complete list of devices (unfiltered).
    • Selected: Select this to list only the selected devices.
    • Unselected: Select this to list only the unselected devices.
    • Delete: Delete the required devices from the favorites list.
    Execute Batches Sequentially To execute the discovery operation on the specified batches sequentially, select this checkbox.
    *Interval Between Batches If Execute Batches Sequentially is selected, enter an interval duration (in minutes) in this field. The sequential execution of the batches is spaced according to the interval value entered here.
    *Discovery Type From the following options, select one:
    • All Certificates: Select this to discover all certificates.
    • Certificates in Use: Select this to discover only those certificates that are associated with a service.
    *: Mandatory fields
  4. In the Discovery Rules section, from the Associate Rule dropdown list, select a rule that will be used to filter the discovered certificates.
    A set of filters is combined to create a rule, from the Rules menu. The selection of rules will apply respective filters on discovered certificates.
  5. In the After Discover section, enter the following details:
    Table 10. Field descriptions for the After Discover section
    Field Description
    *Move Certificate to Inventory with Status Select from one of the following options:
    • Do not move: The newly discovered certificates and their objects will not be moved to the inventory.
    • Managed: The newly discovered certificates and their objects will be moved to the inventory with the status set to Managed.
    • Monitored: The newly discovered certificates and their objects will be moved to the inventory with the status set to Monitored.
    Use Access Control Rule To apply the rule configured using Access Control, select this checkbox.
    Note: If this checkbox is enabled, the certificate group will be associated automatically by the rule in access control.
    *Certificate Group From the dropdown list, select a certificate group to which the discovered certificates will be associated.

    Based on the group association, a policy will also be applied to these certificates, which will help ascertain compliance or non-compliance.

    *: Mandatory fields
  6. Click Discover/Schedule to trigger the on-demand/scheduled discovery, respectively.
    The discovered certificates are displayed in the certificate inventory.

Enrolling Certificates

Enrolling a Server Certificate

Prerequisites
[For Linux-based vendor] OpenSSL is used to generate a private key and a Certificate Signing Request (CSR) as part of the endpoint enrollment process. Ensure that OpenSSL is installed and properly configured on the system before proceeding.
Enrolling a Server Certificate
Server certificate enrollment refers to the process ofcreating a digital ID for an application/web server hosted in the network. It starts with the generation of a key pair (private and public key) and CSR, and then submitting the CSR to the required CA to procure a certificate. CERT+ supports the generation of keypair on the device, HSM, AppViewX. Users can also upload the CSR for enrolling for a digital certificate.

To enroll a server certificate:

  1. Go to (Menu) > CERT+ > CERTIFICATE ACTION > Enroll Certificate > Server
    The Enroll Server Certificate page is displayed.
  2. In the General Information section, from the dropdown list, select the required Assign Group.
  3. Enter the CA Details.
    Table 11. Field descriptions for the CA Details section
    Field Description
    *Certificate Authority From the dropdown list, select the certificate authority to request the certificate enrollment.
    Note: The IDnomic CA can be used for issuing certificates only in an on-prem deployment. Certificates issued through IDnomic CA can be renewed only if they are enrolled using a Registration Authority workflow.
    *Renew Automatically
    Note:
    To automatically renew this certificate:
    1. Turn on the Renew Automatically toggle.

      The *Start Renewing field is displayed.

    2. In the Days Before Expiry field, specify how many days prior to a certificate's expiry the renewal process should start.

      Valid range for number of days: 1 to 120

    Note: The auto renew settings from the parent certificate will be transferred to the child certificate only if the toggle was enabled; they will not transfer if the certificate was renewed manually. After migration, these settings will be disabled for the parent certificate, so enable them manually if needed.
    *Regenerate Automatically To automatically regenerate this certificate:
    1. Turn on the Regenerate Automatically toggle.

      The *Start Regenerating field is displayed.

    2. In the Days Before Expiry field, specify how many days prior to a certificate's expiry the regeneration process should start.

      Valid range for number of days: 1 to 120

      Note: This value can exceed the certificate's validity in case of short-lived certificates.
    Note:
    • This feature can be enabled only for valid certificates (not for revoked/suspended and expired certificates).
    • The auto regenerate settings from the parent certificate will be transferred to the child certificate only if the toggle was enabled; they will not transfer if the certificate was regenerated manually. After migration, these settings will be disabled for the parent certificate, so enable them manually if needed.
    *Re-enroll Automatically To automatically regenerate this certificate:
    1. Turn on the Re-enroll Automatically toggle.

      The *Start Re-enrollng field is displayed.

    2. In the Days Before Expiry field, specify how many days prior to a certificate's expiry the regeneration process should start.

      Valid range for number of days: 1 to 120

      Note: This value can exceed the certificate's validity in case of short-lived certificates.
    Note: User overrides are allowed unless Group Override is active, in which case the group's configuration takes precendence.
    *CA Account From the dropdown list, select the CA account to which the certificate enrollment request will be submitted.
    Certificate Type From the dropdown list, select the required certificate type.
    *Division
    Note: This field is applicable only for Digicert CA.
    From the dropdown list, select the division with which the certificate will be enrolled.
    Certificate Profile
    Note: This field is displayed for only selected CAs. For the IDnomic CA, this field is displayed when only-CA setting is selected from the CA Account dropdown list.

    From the dropdown list, select the certificate profile with which the certificate must enroll.
    *RA Workflow
    Note: This field is displayed when Certificate Authority = IDnomic and a RA setting is selected from the CA Accounts dropdown list.
    From the dropdown list, select the RA workflow that will be used for certificate enrollment.

    For the details of a workflow, you can check them on your CA portal on IDnomic.

    *Issuer Location
    Note: This field is applicable only for Google CA.

    From the dropdown list, select the issuer location associated with the CA account.
    *Issuer Name
    Note: This field is applicable only for Google CA and AppViewX PKIaaS Native.

    From the dropdown list, select the issuer name for issuing the certificate.
    Template Name
    Note: This field will be displayed only when Certificate Authority = AppViewX Native CA.

    Select a template name from the dropdown list.

    Template Name is editable. The selected template will be displayed in the Template/Profile column of the Server Certificate Inventory irrespective of the Managed/Monitor status. You can also search and filter certificates based on the template name within the CERT+ Inventory.
    *Issuance Policy
    Note: This field is applicable only for Futurex.
    From the dropdown list, select the issuing policy for this certificate.

    An issuance policy defines the rules Futurex must follow to process the certificate enrollment request. The selected issuance policy will determine the approval requirements for the certificate, the cryptographic settings, notification triggeres and other configuration parameters.
    *Root CA
    Note: This field is applicable only for Futurex.
    From the dropdown list, select the root CA for the certificate being enrolled.

    This is the trusted root certificate authority that anchors the certificate chain. All issued certificates will ultimately chain up to this root.
    *Signing CA
    Note: This field is applicable only for Futurex.
    From the dropdown list, select the Certificate Authority that will sign the requested certificate.
    *Extension Profiles
    Note: This field is applicable only for Futurex.
    Extension profiles enable you to further modify your certificates with additional field, attributes, and requirements.

    From the dropdown list, select the extension profile that will be used for the certificate being enrolled.

    To read more on and for instructions to create extension profiles, refer the Futurex documentation. For links, see the References section.

    *Approval Group Name
    Note: This field is applicable only for Futurex.
    An approval group is a predefined set of users or roles authorized to approve the certificate enrollment request.

    From the dropdown list, select the approval group to authorize this enrollment request.

    To read more on and for instructions to create and manage approval groups, refer the Futurex documentation. For links, see the References section.
    *Connector Name Enter a friendly name for the CA connector.

    On saving this form, the name entered here will be displayed in the holistic view.
    Description
    Note: Character limit: 2000 characters

    Enter the description in this field.
    *CSR Generation
    Note: This field is applicable for all CAs except Amazon.

    From the following options, select the required method for generating the CSR:

    • AppViewX: Private key and CSR will be created in AppViewX based on CSR parameters given.
      Note: If auto regeneration has been enabled for this cerificate, AppViewX can be enforced as the default CSR generation source (irrespective of any selections made here) every time the certificate is regenerated. To do this, execute the following db script:
      db.cert_metadata.insertOne({"_id":"CERT_AUTO_REGENERATE_DEFAULT_APPVIEWX_CSR", "flag":true})
    • Upload CSR: You can upload a file that contains the CSR details. This source file will be used to populate the CSR parameters, which will then be submitted to the CA.
      1. Under CSR Generation, select Upload CSR.

        The Please paste your CSR field is displayed.

      2. From the Please paste your CSR field, select Browse.
      3. Navigate to the location of your CSR file, and click Open.
      4. Click Upload.

        On successful upload of this file, the CSR fields are populated with the corresponding details.

    • HSM:
      Note: This option is disabled/not displayed when Certificate Authority = Google, CSC Global, and DigiCert One.
      To generate the private key and the CSR, based on the CSR parameters given in an HSM device:
      1. Under CSR Generation, select HSM.
      2. To enter the configuration details for CSR generation, refer the field descriptions given here.
    • End Point:
      Note: This option is disabled when Certificate Authority = Google and CSC Global.
      To generate the private key and the CSR, based on the CSR parameters given in an endpoint device:
      1. Under CSR Generation, select End Point.
      2. To enter the configuration details for CSR generation, refer the field descriptions given here.
    *: Mandatory fields
    Table 12. Field descriptions for using HSM as the CSR generation source
    Field Description
    *Device Type From the dropdown list, from the following options, select the type of device on which the private key and the CSR will be generated:
    • HSM Devices (AppViewX will directly communicate with the HSM device for the CSR generation.)
    • ADC Devices (The selected ADC device will interact with the HSM to generate the CSR and subsequently transmit the relevant details to AppViewX.)
    *Vendors This field is displayed only when Device Type = ADC Devices.

    From the dropdown list, select the required ADC device vendor.
    Module Number This field is displayed when Device Type = ADC Devices and Vendors = Thales.

    In the event that multiple HSMs are configured on a system, module number is a unique identifier assigned to each HSM.

    In this field, enter the module number assigned to the selected Thales device.
    *Devices From the dropdown list, select the required HSM/ADC device.

    This field is populated based on the Device Type and Vendors selected.

    • For Device Type = HSM Devices

      The dropdown list is populated with HSM devices that were enabled for CSR generation at the time of onboarding and have been successfully onboarded. To read more on onboarding HSM devices in AppViewX, click here.

    • For Device Type = ADC Devices

      The dropdown list is populated with F5 devices that are in the Managed state.

      Currently, AppViewX enables HSM key generation only through F5 devices for the following HSM vendors and their respective supported versions:
      • Fortanix (v14 and onwards)
      • Thales (v12 and onwards)
      • Safenet (v12 and onwards)
    *Key Handler Name This field is displayed when Device Type = HSM Devices.

    Key handler name refers to an identifier used to reference a cryptographic key managed by an HSM device.

    Enter the desired handler name in the field.
    *Key Reference Name This field is displayed when Device Type = ADC Devices.

    Key reference name refers to an identifier used to reference a private key that is stored locally on an ADC device or is securely accessible to the device via an external HSM.

    In this field, enter the reference name assigned to the private key stored in/accessible to the selected ADC device.
    Table 13. Field descriptions for using an endpoint device as the CSR generation source
    Field Description
    Category From the following options, select the ADC device category:
    • ADC
    • Cloud
    • Server
    • WAF
    • Firewall
    Note:
    • Run the following script to enable endpoint CSR generation support for GlobalSignAtlas:
      db.getCollection('cert_metadata').insertOne({
    "_id": "CSR_GENERATION_ENDPOINT_SUPPORTED_VENDOR_GLOBALSIGNATLAS",
    "objectMap": {
        "Server": [
            "ABAP",
            "Web Dispatcher"
        ]
    }
});
    • On selecting GlobalSignAtlas CA, Category is automatically populated as Server.
    Vendor The dropdown list for this field is populated based on the Category selected. From the dropdown list, select the vendor for the end point device.
    Note:
    • On selecting GlobalSignAtlas CA, Vendor is populated with ABAP and Web Dispatcher.
    *Devices This field lists the end point devices present in your environment that belong to the above selected Category and Vendor.
    From the dropdown list, select the end point device on which you want to generate the private key and the CSR.
    Note: On selecting Vendor = Fortinet, both Fortigate and FortiManager devices are populated. Auto-regeneration of certificates with FortiManager as endpoint is not supported.
    *Profile This field is applicable only when Category = Server/WAF. Select a profile from the dropdown list.
    Note: On selection of Vendor = Imperva, CSR generation at the endpoint is supported only for SaaS platforms. Profiles will not be displayed for AWS/on-prem deployments.
    *Tenant This field is applicable only when Category = AD. Enter the tenant ID.
    *Service name From the dropdown list, select the cloud service running on the selected cloud Devices.
    CSR Location This field is applicable only when Category = Server.
    *Template Name This field is applicable only when Category = Firewall.

    Select the required template from the dropdown list.

    Note:
    • This field will be enabled when the Platform = Panorama while onboading PaloAlto device at Menu > CERT+ > Device Management > Inventory> Firewall > Add.
    • Templates and partitions are used to enroll certificates at the template level. To enroll a certificate at the Panorama level, set the template to None.
    Partition This field is applicable only when Category = Firewall.
    *CSR File Name Enter the name of the file that contains the CSR parameters.
    Note:
    • As the extension is already included in the field, ensure that you enter the file name without the file extension.
    • Starting v2023.1.0 FP2, for enrolling Apache server certificates, this field is labeled as CSR File Location.
    *Key File Name Enter the name of the file that contains the private key details.
    Note:
    • As the extension is already included in the field, ensure that you enter the file name without the file extension.
    • Starting v2023.1.0 FP2, for enrolling Apache server certificates, this field is labeled as Key File Location.
    *Certificate File Name This field is displayed only when Category = Cloud. Enter the certificate file name.
    *Key vault This field is displayed only when Category = Cloud, Vendor = Azure, and Service name = Key Vault (Azure).
    *Service
    Note: This field is displayed when Category = Server and Vendor = Microsoft Server.
    This dropdown list is populated based on the Device selected.

    From the options in the dropdown list, select the service.
    *Exchange Server
    Note: This field is displayed when Category = Server and Vendor = Microsoft Server.
    From the dropdown list, select the name of the MS Exchange server for which the certificate is being enrolled.
  4. For the EJBCA certificate authority, enter the vendor details.
    Table 14. Field descriptions for the EJBCA Vendor Specific Details section
    Field Description
    * End Entity Profile Name From the dropdown list, select the end entity profile name.
    End entity user name Enter the name of the end user entity.
    * Issuer Common Name From the dropdown list, select the issuer common name.
    *Certificate Profile Name From the dropdown list, select the certificate profile name.
    *: Mandatory fields
    Note: When generating a new private key on an endpoint, existing keys (including .txt encrypted key files) are not overwritten immediately.
    • For non–password-protected certificate types (PEM-.crt, PEM-.cer, PEM-.pem, DER-.der, DER-.cer, PKCS7-.p7b, PKCS7-.p7c), the .txt file is decrypted into the original key filename (keyfile.key) during the push. If a key with the same name already exists, it will be replaced.
    • For password-protected certificate types (Default JKS-.jks, JKS-.keystore, PKCS12-.p12, PKCS12-.pfx):
      • During the push , the encrypted .txt file is decrypted into a temporary, timestamped key file (keyfile_.key).
      • This decrypted key is then combined with the certificate to create the final bundled output (e.g., .pfx, .jks).
      • After bundling, the temporary timestamped key file is deleted; Because the decrypted key file is temporary and timestamped, no key replacement occurs, and no existing key files are overwritten.
    This is currently applicable for:
    • Linux vendors - Generic Linux, Apache Linux, Tomcat Linux, and Nginx Linux.
    • Windows vendors - Windows Apache, Windows Tomcat, and Microsoft SQL.
  5. For the certificate being enrolled, enter the CSR Parameters.
    Note: For DigiCert One, all CSR parameters that are assigned static values in the certificate profile will be auto-populated and disabled for editing.
    Table 15. Field descriptions for the CSR Parameters
    Field Description
    Replace PSE File The Replace PSE File checkbox enables users to generate the CSR or private key in the Server. This checkbox is displayed only in the case described below:
    1. Select the CSR Generation radio button as Endpoint.
    2. Select Category as Server, Vendor as ABAP or Web Dispatcher The Profiles dropdown is the only other field displayed below it and is populated with a list of .pse file names.
    3. Select the required Profile from the dropdown. Based on the values selected, the fields in the CSR Parameters section are auto-populated.

    The Replace PSE File checkbox is disabled by default and the SAN details fields in CSR Parameters section are also disabled. Selecting the checkbox will make the SAN details enabled and allow for values to be updated.
    *Common Name Enter the certificate's common name.

    The common name is one of the key values of Certificate Signing Request (CSR) to be present in the certificate. For example, <appviewx>.

    Note: Constraints:
    • Character limit: 64 characters
    • No special characters allowed except en dash (_) and hyphen (-).
    • For VMware vCenter, enter the device's FQDN to avoid certificates being rejected. If left blank, the FQDN will be auto-detected and populated.
    Subject Alternative Name From the dropdown list, select the Subject Alternative Name category for the certificate being enrolled.

    In the corresponding field(s) displayed for the selection made, enter the required values.

    Note:
    • Multiple values must be separated by a comma.
    • After enrollment, the cumulative count of SANs is displayed in the certificate property pop-up window from the holistic view.
    • For VMWare vCenter, enter the device's FQDN to avoid certificates being rejected. If left blank, the FQDN will be auto-detected and populated.
    DNS Mutiple SAN values must be separated by a comma (,).
    Organization The organization name is one of the CSR parameters to be present in the certificate. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    Note: For VMWare vCenter, this is a mandatory field.
    Organization Unit Organization Unit name is one of the CSR parameters to be present in the certificate. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    Note: For VMWare vCenter, this is a mandatory field.
    Locality The locality name is one of the CSR parameters to be present in the certificate. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    Note: For VMWare vCenter, this is a mandatory field.
    State The state name is one of the CSR parameters to be present in the certificate. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    Note: For VMWare vCenter, this is a mandatory field.
    Country Country name is one of the CSR parameters to be present in the certificate. This field will be auto-filled and editable based on configuration. It must be a 2-letter country code (for example, US, and so on).
    Note:
    • For renewal of the certificate being enrolled, country name is required.
    • For VMWare vCenter, this is a mandatory field.
    Email Address Enter a valid email address of the person responsible for maintaining the certificate.
    Note: For VMWare vCenter, this is a mandatory field.
    *Validity To specify the validity of the certificate being enrolled:
    1. From the first dropdown list, select the number of days/months/years.
    2. From the second dropdown list, select the unit of the duration from the following values: Days/Months/Year.
      For example, if the validity of the certificate is 2 months:
      1. From the first dropdown list, select 2.
      2. From the second dropdown list, select Months.
    Note: The uploaded certificate validity for Globalsign MSSL is set to 365 days.
    Challenge Password Challenge password is one of the CSR parameters to be present in the certificate. Password must contain at least one alphabet (uppercase and lowercase), one number, and one special character.
    Confirm Password Re-enter the password entered in the Challenge Password field.
    *Hash Function The Hash function with which the CSR has to be signed. Any information specific to any CA or vendor has to be covered in the Note section. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    Note: For Certificate Authority = HydrantID, irrespective of the hash function selected, by default, the CA returns a certificate with SHA256. Therefore, admins must restrict users from creating a certificate with a hash function other than SHA256. To accomplish this, create policy with a single hash value (SHA256).
    *Key Type The key type is used while creating a private and public key pair. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    Note:
    • FortiManager supports only RSA key type of 512, 1024, 1536, 2048, 3072, 4096 bits.
    • VMWare supports only RSA of 2048, 3072, 4096, 7680, 8192 bits and EC key type.
    *Bit Length The bit length is used while creating a private and public key pair. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    *: Mandatory fields
  6. In the Attachments section, upload any additional documents that are relevant to the enrollment of the certificate (for example, approval emails).
    Table 16. Field descriptions for the Attachments section
    Field Description
    Name Enter a name for the document. This need not be the actual name of the document; it can be an alternate name that will be used for reference only.
    Comments Enter any details relevant to the document being attached.
    Note: Character limit: 2000 characters
    Upload File To upload an attachment:
    1. Click Upload.
    2. Navigate to the location of the document to be uploaded.
    3. Select the document to be document and click Open.

      The selected document is uploaded and listed in the table displayed below these fields in the Attachments section.

      Tip: If you have uploaded multiple attachments, use the Search field to find the required one.
    *: Mandatory fields
  7. In the Certificate Attributes section, enter organization-specific values, for the certificate attributes and custom attributes for the issuing CA, that need to be mentioned along with the CSR.
    These values will not be a part of the certificate but will be available in the AppViewX inventory. For example, cost center.
    Note: This additional information can be used to filter certificate details in the inventory.
  8. Enter the relevant details in the Generic Fields. These are default fields for maintaining the IP address and device information, if required.
    Table 17. Field descriptions for the Generic Fields
    Field Description
    Device Name Enter the name of the device.
    Application IP Address Enter the IP address of the application.
    Tracking ID A free-form business alpha-numerical identifier, included in the audit logs, that may be used to correlate audit log entries (typically enrollment and revocation events)
    Certificate holder Email
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    An email address that may be used to send notifications to certificate holder depending on the notification policies configured for the requested workflow
    First name
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    First name (as a metadata) associated with the certificate to be enrolled
    Last name
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    Last name (as a metadata) associated with the certificate to be enrolled
    Organization
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    Organization name (as a metadata) associated with the certificate to be enrolled
    Comment
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    Additional information (as a metadata) associated with the certificate to be enrolled
    UUID
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    Universal Unique Identifier, or UUID, (as a metadata) associated with the certificate to be enrolled
  9. In the Vendor-Specific Details section, enter the CA-specific details. Some of the CAs will expect additional details other than CSR parameters as meta data for their operational purposes. Details common to all CAs will be taken from the AppViewX user information of the logged in user.
    Table 18. Field descriptions for the common vendor specific details
    Field Description
    Certificate ID The Certificate ID is auto-populated based on the value entered in the Common Name field (in the CSR Parameters section).
    • The Certificate ID can be modified by the user.
    • If the user edits the Certificate ID, any change to the Common Name will not reflect in the Certificate ID.
    • If the user deletes the Certificate ID, the value of the Certificate ID field is set to the Common Name suffixed with the timestamp.
    Table 19. Field descriptions for the CSC Global CA vendor specific details
    Field Description
    *Server Type From the dropdown list, select the server on which the application that requires the requested certificate is hosted.
    *Business Unit Enter the name of the business unit that is requesting the certificate.
    *Organization Contact Enter the email address of the contact in the organization requesting the certificate.
    *Phone Number Enter the phone number of the Organization Contact in the followung format: +<country code>-<phone number>.
    Note: For CSC Global, the phone number is not fetched from the AppViewX user information because of the difference in format.
    *Domain Control Validation Type From the following options in the dropdown list, select the method CSC Global will use for authentication before issuing a certificate:
    • EMAIL: CSC Global will send an approval/confirmation request to the registered email ID. Certificate issuance happens only after approval is received.
    • CNAME: On requesting certificate issuance, CSC Global will provide you with a dynamic string. Add a CNAME record with this string to your DNS settings. CSC will issue the certificate requested only after validating this CNAME record.
    Note: CSC Global will perform domain validation for all CLM actions.
    *: Mandatory fields
    Table 20. Field descriptions for the Custom CA vendor specific details
    Field Description
    *CRL and OCSP required To control the inclusion of CRL and OCSP settings, turn this toggle button on/off as required.
    *: Mandatory fields
    Table 21. Field descriptions for the DigiCert CA vendor specific details
    Field Description
    *Server Type From the dropdown list, select the server on which the application that requires the requested certificate is hosted.
    *Payment Method From the dropdown list, select one from the following payment methods:
    • Bill To Account Balance: This option allows you to pay for the DigiCert certificate using the available balance in your DigiCert account.
      Note: Ensure that the option to bill to account balance is enabled for the account and the account has sufficient balance.
    • Bill To Default Credit Card: This option will charge the cost of the DigiCert certificate to the credit card set as the default payment method in your DigiCert account.
      Note: Ensure that a credit card is configured as the default payment method for your account.
    Additional Email Enter email addresses that will receive notifications for renewals, reissues, and duplicates for the specified order.
    Renewal Message Enter a custom message that will be sent with the renewal notifications.
    Notes Enter a custom note that will be sent with the order.
    *: Mandatory fields
    Table 22. Field descriptions for the DigiCert One CA vendor specific details
    Field Description
    Seat ID Enter the seat ID that will be assigned to the certificate being enrolled.
    Seat ID is a unique user-defined value assigned to identify an entity in the DigiCert One account. The seat ID for a certificate is used for certificate enrollment, renewal, and regeneration.
    Note: The Seat ID field is displayed only if the Allow Seat ID during enrollment option is selected for the CA account. In this case, the value entered in the Seat ID field is now a unique identifier for the certificate being enrolled. Otherwise, a common seat ID is assigned to all certificates enrolled for the selected CA account
    Table 23. Field descriptions for the GlobalSign MSSL CA vendor specific details
    Field Description
    *Profile name A profile name is defined at the time of creating an account on the GlobalSign MSSL portal. AppViewX retrieves all your profile names from the GlobalSign MSSL portal and populates them in this dropdown list.

    From the dropdown list, select the profile name the enrolled certificate should be mapped to.
    *: Mandatory fields
    Table 24. Field descriptions for the Hydrant ID CA vendor specific details
    Field Description
    Expiry Emails Enter a comma-separated list of email addresses that will receive the certificate expiry notification from HydrantID.
    Note: HydrantID CA does not accept updates to these email addresses during the renewal process.
    Table 25. Field descriptions for the Nexus CA vendor specific details
    Field Description
    Procedures The Procedures dropdown list will display only the procedures mapped to the server and the default procedure. From the dropdown list, select the required procedure.
    Table 26. Field descriptions for the LetsEncrypt CA vendor specific details
    Field Description
    *Challenge Type Specifies the method for verifying domain ownership. Select the required domain for the validation. The available challenge types are:
    • HTTP
    • DNS.
    Challenge Verify Determines how the DNS challenge will be verified. Select the required verification process. The available challenge verifies are:
    • Manual
    • Automatic.
    The value Automatic suggests that the system will automatically handle the verification process without manual intervention.
    Note: This field appears when the challenge type is selected as DNS.
    Vendor Indicates the DNS provider responsible for managing DNS records. The available DNS service providers are:
    • Cloudflare
    • Azure.
    Note: This field appears when the challenge verify is selected as Automatic.
    *Settings Allows for additional configuration settings related to the DNS challenge. The selected value None implies that no extra settings are applied.
    Note: This field appears when the challenge verify is selected as Automatic.
    Note:
    • Make sure that you have enabled LetsEncrypt DNS Automation from the workflow.
    • To add new vendors for the integration and configuration, refer to Integration topic in the Automation Guide.
    *: Mandatory fields
  10. Click Add.
    Once the details are added, you will be redirected to a page where the CSR and CA details are added as a connector. This page is called the holistic view and from here, any action on the certificate can be performed including provisioning the certificate to a server.
  11. On the holistic view, click the Submit button to trigger the request.
    The submit action is triggered and the Submit dialog box is displayed.
  12. Enter your comments in the text field and click Yes.
    If the approval required option is enabled in the CA policy, the request is moved to the Approve and Implementation stages.
  13. Click Approve to proceed.
    The Approve dialog box is displayed.
  14. Enter your comments in the text field.
    Note: If the workflow request has to be approved automatically in the future, click the Schedule later button .
  15. Click Yes.
    Once the approval process is complete, the Implement option is displayed in the holistic view.
  16. Click Implement.
    The Implement dialog box is displayed.
  17. Enter your comments in the text field.
    If the workflow request has to be implemented automatically in the future, click Schedule later .
  18. Click Yes.
    CSR Submission to CA is in progress.Once the CSR submission is successful, the request state will be changed to Submit certificate - retrieval in progress state.

    If the enrollment request is compliant with conditions defined and auto-approval enabled in the targeted CA, the certificate will be fetched in a few seconds.

    If auto-approval disabled in the targeted CA, you will have to be logged into the CA and approve the request.

    Once the certificate is issued successfully, the certificate will be retrieved into AppViewX. You can now push the enrolled certificate(s) to the required endpoint.

Enrolling Client Certificates

  1. Go to (Menu) > CERT+ > CERTIFICATE ACTION > Enroll Certificate > Client
    The Enroll Client Certificate page is displayed.
  2. In the General Information section, from the dropdown list, select the required Assign Group.
  3. Enter/Select the CA Details.
    Table 27. Field descriptions for the CA Details section
    Field Description
    *Certificate Authority
    Note: Depending on the CA selected, the rest of the fields will be displayed.
    From the dropdown list, select the required certificate authority (CA).
    Note: For enrolling certificates with policies using Google CA, consider the following points:
    Certificate Enrollment - Strict Policy
    • The Common Name will not be pre-filled from the policy.
    • The following validation will be seen based on strict policy guidelines.
      • If the Common Name’s domain name is not present in the Allowed Domain Name list, an error validation will be shown upon saving the policy details.
    Certificate Enrollment - Suggestive Policy
    • The Common Name will not be pre-filled from the policy
    • The following validation will be seen based on strict policy guidelines.
      • If the Common Name’s domain name is not present in the Allowed Domain Name list, the non-compliant policy will be created.
      • If the Common Name’s domain name is present in the Blocked Domain Name list, an error validation will be shown upon saving the policy details.
    Note: For Certificate Authority = EJBCA, an additional set of fields, Vendor specific details is displayed after the CA Details section. Instructions on specifying the vendor specific details are covered in step 4.
    *Renew Automatically
    Note:
    To automatically renew this certificate:
    1. Turn on the Renew Automatically toggle.

      The *Start Renewing field is displayed.

    2. In the Days Before Expiry field, specify how many days prior to a certificate's expiry the renewal process should start.

      Valid range for number of days: 1 to 120

    Note: The auto renew settings from the parent certificate will be transferred to the child certificate only if the toggle was enabled; they will not transfer if the certificate was renewed manually. After migration, these settings will be disabled for the parent certificate, so enable them manually if needed.
    Note: The IDnomic CA can be used for issuing certificates only in an on-prem deployment. Certificates issued through IDnomic CA can be renewed only if they are enrolled using a Registration Authority workflow.
    Subscribe Email Alerts for Auto-Renewal This field is displayed when Renew Automatically is enabled.

    To receive email notifications every time this certificate is auto-renewed, select this checkbox.

    The email notification includes certificate details, the type of auto action (renewal, in this case), and the outcome (success/failure). These notifications help administrators stay informed of automated lifecycle actions, reducing the overhead to manually track them.

    If enabled here, this setting overrides the group setting for email alerts subscription, unless group-level overrides have been enforced.

    *Regenerate Automatically To automatically regenerate this certificate:
    1. Turn on the Regenerate Automatically toggle.

      The *Start Regenerating field is displayed.

    2. In the Days Before Expiry field, specify how many days prior to a certificate's expiry the regeneration process should start.

      Valid range for number of days: 1 to 120

      Note: This value can exceed the certificate's validity in case of short-lived certificates.
    Note:
    • This feature can be enabled only for valid certificates (not for revoked/suspended and expired certificates).
    • The auto regenerate settings from the parent certificate will be transferred to the child certificate only if the toggle was enabled; they will not transfer if the certificate was regenerated manually. After migration, these settings will be disabled for the parent certificate, so enable them manually if needed.
    Subscribe Email Alerts for Auto-Regenerate This field is displayed when Regenerate Automatically is enabled.

    To receive email notifications every time this certificate is auto-regenerated, select this checkbox.

    The email notification includes certificate details, the type of auto action (regeneration, in this case), and the outcome (success/failure). These notifications help administrators stay informed of automated lifecycle actions, reducing the overhead to manually track them.

    If enabled here, this setting overrides the group setting for email alerts subscription, unless group-level overrides have been enforced.

    *Re-enroll Automatically To automatically regenerate this certificate:
    1. Turn on the Re-enroll Automatically toggle.

      The *Start Re-enrollng field is displayed.

    2. In the Days Before Expiry field, specify how many days prior to a certificate's expiry the regeneration process should start.

      Valid range for number of days: 1 to 120

      Note: This value can exceed the certificate's validity in case of short-lived certificates.
    Note: User overrides are allowed unless Group Override is active, in which case the group's configuration takes precendence.
    *CA Account To which account the enrollment request to be submitted.
    Certificate Type Select the desired certificate type from the dropdown list.
    *Division Select the division to which the certificate must be enrolled.
    Note: This field will be shown only for Digicert CA.
    Certificate Profile
    Note: This field is applicable only for AppViewX CA and Google CA. For the IDnomic CA, this field is displayed when only-CA setting is selected from the CA Account dropdown list.

    From the dropdown list, select the profile with which the certificate must enroll.
    *RA Workflow
    Note: This field is displayed when Certificate Authority = IDnomic and a RA setting is selected from the CA Accounts dropdown list.
    From the dropdown list, select the RA workflow that will be used for certificate enrollment.

    For the details of a workflow, you can check them on your CA portal on IDnomic.

    *Issuer Location Select the location of the issuer CA from the dropdown.
    Note: This is applicable only for Google CA.
    *Issuer Name Select the name of the issuer CA from the dropdown.
    Note: This is applicable only for Google CA.
    *Issuance Policy
    Note: This field is applicable only for Futurex.
    From the dropdown list, select the issuing policy for this certificate.

    An issuance policy defines the rules Futurex must follow to process the certificate enrollment request. The selected issuance policy will determine the approval requirements for the certificate, the cryptographic settings, notification triggeres and other configuration parameters.
    *Root CA
    Note: This field is applicable only for Futurex.
    From the dropdown list, select the root CA for the certificate being enrolled.

    This is the trusted root certificate authority that anchors the certificate chain. All issued certificates will ultimately chain up to this root.
    *Signing CA
    Note: This field is applicable only for Futurex.
    From the dropdown list, select the Certificate Authority that will sign the requested certificate.
    *Extension Profiles
    Note: This field is applicable only for Futurex.
    Extension profiles enable you to further modify your certificates with additional field, attributes, and requirements.

    From the dropdown list, select the extension profile that will be used for the certificate being enrolled.

    To read more on and for instructions to create extension profiles, refer the Futurex documentation. For links, see the References section.

    *Approval Group Name
    Note: This field is applicable only for Futurex.
    An approval group is a predefined set of users or roles authorized to approve the certificate enrollment request.

    From the dropdown list, select the approval group to authorize this enrollment request.

    To read more on and for instructions to create and manage approval groups, refer the Futurex documentation. For links, see the References section.
    *Connector Name Enter the friendly name for Certificate Authority connector in this field which will be displayed in the holistic view on saving this form.
    Description Enter the description in this field.
    Note: Character limit: 2000 characters
    *CSR Generation Select the CSR generation option as required.

    Options are:

    • Upload CSR: Uploaded CSR will be used as the source to populate CSR parameters and submit to CA.
      To upload a CSR:
      1. Under CSR Generation, select Upload CSR.

        The Please paste your CSR field is displayed.

      2. From the Please paste your CSR field, select Browse.
      3. Navigate to the location of your CSR file, and click Open.
      4. Click Upload.

        On successful upload of this file, the CSR fields are populated with the corresponding details.

    • HSM: The private key and CSR will be created in the selected HSM device based on CSR parameters given.
      To generate the private key and the CSR, based on the CSR parameters given in an HSM device:
      1. Under CSR Generation, select HSM.
      2. To enter/select the configuration details for CSR generation, refer the field descriptions given here.
    • End Point: The private key and CSR will be created in the selected end point device based on the CSR parameters given.
      To generate the private and the CSR, based on the CSR parameters given in an endpoint device:
      1. Under CSR Generation, select End Point.
      2. To enter/select the configuration details for CSR generation, refer the field descriptions given here.
    • AppViewX - Private key and CSR will be created in AppViewX based on CSR parameters given.
      Note: If auto regeneration has been enabled for this cerificate, AppViewX can be enforced as the default CSR generation source (irrespective of any selections made here) every time the certificate is regenerated. To do this, execute the following db script:
      db.cert_metadata.insertOne({"_id":"CERT_AUTO_REGENERATE_DEFAULT_APPVIEWX_CSR", "flag":true})
    Note: For all CA types except Amazon, you have the option to generate the CSR.
    *: Mandatory fields
    Table 28. Field descriptions for using HSM as the CSR generation source
    Field Description
    *Device Type From the dropdown list, from the following options, select the type of device on which the private key and the CSR will be generated:
    • HSM Devices (AppViewX will directly communicate with the HSM device for the CSR generation.)
    • ADC Devices (The selected ADC device will interact with the HSM to generate the CSR and subsequently transmit the relevant details to AppViewX.)
    *Vendors This field is displayed only when Device Type = ADC Devices.

    From the dropdown list, select the required ADC device vendor.
    Module Number This field is displayed when Device Type = ADC Devices and Vendors = Thales.

    In the event that multiple HSMs are configured on a system, module number is a unique identifier assigned to each HSM.

    In this field, enter the module number assigned to the selected Thales device.
    *Devices From the dropdown list, select the required HSM/ADC device.

    This field is populated based on the Device Type and Vendors selected.

    • For Device Type = HSM Devices

      The dropdown list is populated with HSM devices that were enabled for CSR generation at the time of onboarding and have been successfully onboarded. To read more on onboarding HSM devices in AppViewX, click here.

    • For Device Type = ADC Devices

      The dropdown list is populated with F5 devices that are in the Managed state.

      Currently, AppViewX enables HSM key generation only through F5 devices for the following HSM vendors and their respective supported versions:
      • Fortanix (v14 and onwards)
      • Thales (v12 and onwards)
      • Safenet (v12 and onwards)
    *Key Handler Name This field is displayed when Device Type = HSM Devices.

    Key handler name refers to an identifier used to reference a cryptographic key managed by an HSM device.

    In this field, enter the reference name assigned to the Master Encryption Key stored in the selected HSM device.
    *Key Reference Name This field is displayed when Device Type = ADC Devices.

    Key reference name refers to an identifier used to reference a private key that is stored locally on an ADC device or is securely accessible to the device via an external HSM.

    Enter the desired handler name in the field.
    Table 29. Field descriptions for using an endpoint device as the CSR generation source
    Field Description
    Category From the following options, select the ADC device category:
    • ADC
    • Cloud
    • Server
    • Firewall.
    Vendor From the dropdown list, select the vendor for the end point device.
    Note: The dropdown list for this field is populated based on the Category selected.
    *Devices This field lists the end point devices present in your environment that belong to the above selected Category and Vendor.

    From the dropdown list, select the end point device on which you want to generate the private key and the CSR.
    Tenant
    Note: This field is applicable only when Category = ADC.
    Enter the tenant ID.
    *Service name From the dropdown list, select the cloud service running on the selected cloud Devices.
    CSR Location
    Note: This field is applicable only when Category = Server.
    *Template Name
    Note: This field is applicable only when Category = Firewall.

    Select the required template from the dropdown list.

    Note:
    • This field will be enabled when the Platform = Panorama while onboading PaloAlto device at Menu > CERT+ > Device Management > Inventory> Firewall > Add.
    • Templates and partitions are used to enroll certificates at the template level. To enroll a certificate at the Panorama level, set the template to None.
    Partition
    Note: This field is applicable only when Category = Firewall.
    *CSR File Name Enter the name of the file that contains the CSR parameters.
    Note: Since the extension is already included in the field, ensure that you enter the file name without the file extension.
    Note: Starting v2023.1.0 FP2, for enrolling Apache server certificates, this field is labeled as CSR File Location.
    *Key File Name Enter the name of the file that contains the private key details.
    Note: Since the extension is already included in the field, ensure that you enter the file name without the file extension.
    Note: Starting v2023.1.0 FP2, for enrolling Apache server certificates, this field is labeled as Key File Location.
    *Certificate File Name
    Note: This field is displayed only when Category = Cloud.
    Enter the certificate file name.
    *Key vault
    Note: This field is displayed only when Category = Cloud, Vendor = Azure, and Service name = Key Vault (Azure).
    *Service
    Note: This field is displayed when Category = Server and Vendor = Microsoft Server.
    This dropdown list is populated based on the Device selected.

    From the options in the dropdown list, select the service.
    *Exchange Server
    Note: This field is displayed when Category = Server and Vendor = Microsoft Server.
    From the dropdown list, select the name of the MS Exchange server for which the certificate is being enrolled.
  4. For the EJBCA certificate authority, enter/select the vendor details.
    Table 30. Field descriptions for the EJBCA Vendor Specific Details section
    Field Description
    * End Entity Profile Name From the dropdown list, select the end entity profile name.
    End entity user name Enter the name of the end user entity.
    * Issuer Common Name From the dropdown list, select the issuer common name.
    *Certificate Profile Name From the dropdown list, select the certificate profile name.
    *: Mandatory fields
  5. Enter/Select the CSR Parameters.
    Table 31. Field descriptions for the CSR Parameters section
    Field Description
    *Common Name The common name is one of the key values of Certificate Signing Request (CSR) to be present in the certificate. For example, <appviewx>.

    No special characters allowed except en dash (_) and hyphen (-).
    *Common Name Indicator
    Important: See note.
    This field is displayed when the selected CA Account is DigiCert and Certificate Type is one of the following:
    • Secure Email for Business
    • Digital Signature
    • Premium
    As part of DigiCert's revised security regulations, the common name for the above listed DigiCert certificate types is derived from the one of the input attributes, as selected from the dropdown list.

    For the common name indicator, from the dropdown list, select one of the following:

    • First Name and Last Name
    • Pseudonym
    • Email (applicable only for the Secure Email for Business certificate type)
    *First Name This field is displayed when:
    • Common Name Indicator = First Name and Last Name
    • Common Name Indicator = Email and Indicator Type = First Name and Last Name

    Enter the verified first name of the individual subject.

    For Common Name Indicator = First Name and Last Name

    A combination of the first name and last name will be used to derive the certificate's common name, which will be displayed in the certificate's Common Name field or the Subject DN (in the certificate details that can be accessed from the holistic view).

    For Common Name Indicator = Email and Indicator Type = First Name and Last Name

    The first and last name will be appended as mandatory additional information to the Subject Alternative Name.
    *Last Name This field is displayed when:
    • Common Name Indicator = First Name and Last Name
    • Common Name Indicator = Email and Indicator Type = First Name and Last Name

    Enter the verified last name of the individual subject.

    For Common Name Indicator = First Name and Last Name

    A combination of the first name and last name will be used to derive the certificate's common name, which will be displayed in the certificate's Common Name field or the Subject DN (in the certificate details that can be accessed from the holistic view).

    For Common Name Indicator = Email and Indicator Type = First Name and Last Name

    The first and last name will be appended as mandatory additional information to the Subject Alternative Name.
    *Pseudonym This field is displayed when:
    • Common Name Indicator = Pseudonym
    • Common Name Indicator = Email and Indicator Type = Pseudonym

    Enter the pseudonym of the individual subject. A pseudonym is a fictitious name assumed for a particular person.

    For Common Name Indicator = Pseudonym

    The entered pseudonym will be displayed in the certificate's Common Name field or the Subject DN (in the certificate details that can be accessed from trhe holistic view).

    For Common Name Indicator = Email and Indicator Type = Pseudonym

    The pseudonym will be appended as mandatory additional information to the Subject Alternative Name.
    *Indicator Type This field is displayed when Certificate Type = Secure Email for Business and Common Name Indicator = Email.

    In this case, the issuer's email address, as specified in the CSR parameters, is used to derive the common name.

    For Common Name Indicator = Email, it is mandatory to include additional information in the form of the first name and last name or the pseudonym, which will be appended to the Subject Alternative Name.

    From the following options, select the required indicator type to be used as mandatory information along with the email:
    Subject Alternative Name You can see the count of subject alternative names (SAN) available for a certificate in the CSR parameter section, inventory grid, and CA connector page.

    Select the subject alternative subject name from the dropdown list.

    The possible options are,

    • Select all
    • DNS
    • IP Address.
    Note:
    • Multiple values must be separated by a comma.
    • The cumulative count SANs appears in the certificate property pop-up window from the holistic view.
    *Organization The organization name is one of the CSR parameters to be present in the certificate. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    Organization Unit Organization Unit name is one of the CSR parameters to be present in the certificate. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    Locality The locality name is one of the CSR parameters to be present in the certificate. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    State The state name is one of the CSR parameters to be present in the certificate. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    *Country Country name is one of the CSR parameters to be present in the certificate. This field will be auto-filled and editable based on configuration. It must be a 2-letter country code (for example, US, and so on).
    Email Address The email contact details of the person responsible for maintaining the certificate. Enter the valid e-mail address.

    Except for SwissSign, this field is mandatory or optional based on the value selected for the Email Address mandatory for Client Certificate field in the corresponding CA policy.
    *Order Validity Enter the number in this field and select the entered validity list to be in Days, Months, and Years from the dropdown list.
    The Order Validity for the following DigiCert S/MIME certificate types cannot exceed 2 years:
    • Secure Email for Business
    • Digital Signature
    • Premium
    Note: As per revised security regulations for DigiCert S/MIME certificates, the maximum lifespan of the the above listed certificate types is two years.
    Challenge Password Challenge password is one of the CSR parameters to be present in the certificate. Password must contain at least one alphabet (uppercase and lowercase), one number, and one special character.
    Confirm Password Reenter the same password to confirm that is entered in the Challenge Password field.
    *Hash Function The Hash function with which the CSR has to be signed. Any information specific to any CA or vendor has to be covered in the Note section. This field will be auto-filled and editable based on the configuration in the selected group’s policy.
    Note: For Certificate Authority = HydrantID, irrespective of the hash function selected, by default, the CA returns a certificate with SHA256. Therefore, admins must restrict users from creating a certificate with a hash function other than SHA256. To accomplish this, create policy with a single hash value (SHA256).
    *Key Type From the dropdown list, select the cryptogrpahic algorithm that will be used for generating the certificate's key pair.

    The dropdown list is populated based on the CA policy configured for the selected CA.
    *Bit Length From the dropdown list, select the required key size (in bits).

    The dropdown list is populated based on the CA policy configured for the selected CA.
    *ECDSA curve For Key Type = EC, from the dropdown list, select the elliptic curve that will be used to create the public and private key pairs.
    *: Mandatory fields
  6. In the Attachments section, upload any additional documents that are relevant to the enrollment of the certificate (for example, approval emails).
    Table 32. Field descriptions for the Attachments section
    Field Description
    Name Enter the alternate name for the document to be uploaded.
    Comments Enter the comments in this field.
    Note: Character limit: 2000 characters
    Upload File Click the Upload button to select the file.
  7. Other than the CSR fields, you can add organization-specific values along with CSR. These values will not be part of the certificate but will be available in the AppViewX inventory. For example, cost center. Inventory can be filtered based on these attributes as well. In the Certificate Attributes can be added under Administration > certificate attributes, it will be reflected on the enrollment page:
  8. Enter the relevant details in the Generic Fields. These are default fields for maintaining the IP address and device information, if required.
    Table 33. Field descriptions for the Generic Fields
    Field Description
    Device Name Enter the name of the device.
    Application IP Address Enter the IP address of the application.
    Tracking ID A free-form business alpha-numerical identifier, included in the audit logs, that may be used to correlate audit logentries (typically enrollment and revocation events)
    Certificate holder Email
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    An email address that may be used to send notifications to certificate holder depending on the notification policies configured for the requested workflow
    First name
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    First name (as a metadata) associated with the certificate to be enrolled
    Last name
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    Last name (as a metadata) associated with the certificate to be enrolled
    Organization
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    Organization name (as a metadata) associated with the certificate to be enrolled
    Comment
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    Additional information (as a metadata) associated with the certificate to be enrolled
    UUID
    Note: For the IDnomic CA, this field is displayed only when the selected CA account has been configured using a Registration Authority (RA).
    Universal Unique Identifier, or UUID, (as a metadata) associated with the certificate to be enrolled
  9. In the Vendor-Specific Details section, enter the CA-specific details. Some of the CAs will expect additional details other than CSR parameters as meta data for their operational purposes. Details common to all CAs will be taken from the AppViewX user information of the logged in user.
    Table 34. Field descriptions for the common vendor specific details
    Field Description
    Certificate ID The Certificate ID is auto-populated based on the value entered in the Common Name field (in the CSR Parameters section).
    • The Certificate ID can be modified by the user.
    • If the user edits the Certificate ID, any change to the Common Name will not reflect in the Certificate ID.
    • If the user deletes the Certificate ID, the value of the Certificate ID field is set to the Common Name suffixed with the timestamp.
    Table 35. Field descriptions for the DigiCert CA vendor specific details
    Field Description
    *Server Type From the dropdown list, select the server on which the application that requires the requested certificate is hosted.
    *Payment Method From the dropdown list, select one from the following payment methods:
    • Bill To Account Balance: This option allows you to pay for the DigiCert certificate using the available balance in your DigiCert account.
      Note: Ensure that the option to bill to account balance is enabled for the account and the account has sufficient balance.
    • Bill To Default Credit Card: This option will charge the cost of the DigiCert certificate to the credit card set as the default payment method in your DigiCert account.
      Note: Ensure that a credit card is configured as the default payment method for your account.
    Additional Email Enter email addresses that will receive notifications for renewals, reissues, and duplicates for the specified order.
    Renewal Message Enter a custom message that will be sent with the renewal notifications.
    Notes Enter a custom note that will be sent with the order.
    *: Mandatory fields
    Table 36. Field descriptions for the Hydrant ID CA vendor specific details
    Field Description
    Expiry Emails Enter a comma-separated list of email addresses that will receive the certificate expiry notification from HydrantID.
    Note: HydrantID CA does not accept updates to these email addresses during the renewal process.
    Table 37. Field descriptions for the Nexus CA vendor specific details
    Field Description
    Procedures The Procedures dropdown list will display only the procedures mapped to the server and the default procedure. From the dropdown list, select the required procedure.
  10. Click Add.
    Once the details are added, you will be redirected to a page where the CSR and CA details are added as a connector. This page is called the holistic view and from here, any action on the certificate can be performed including provisioning the certificate to a server.
  11. On the holistic view, click the Submit button to trigger the request.
    The submit action is triggered and the Submit dialog box is displayed.
  12. Enter your comments in the text field and click Yes.
    If the approval required option is enabled in the CA policy, the request is moved to the Approve and Implementation stages.
  13. Click Approve to proceed.
    The Approve dialog box is displayed.
  14. Enter your comments in the text field.
    Note: If the workflow request has to be approved automatically in the future, click the Schedule later button .
  15. Click Yes.
    Once the approval process is completed, the Implement option is displayed in the holistic view.
  16. Click Implement.
    The Implement dialog box is displayed.
  17. Enter your comments in the text field.
    If the workflow request has to be implemented automatically in the future, click Schedule later .
  18. Click Yes.
    CSR Submission to CA is in progress.Once the CSR submission is successful, the request state will be changed to Submit certificate - retrieval in progress state.

    If the enrollment request is compliant with conditions defined and auto-approval enabled in the targeted CA, the certificate will be fetched in a few seconds.

    If auto-approval disabled in the targeted CA, you will have to be logged into the CA and approve the request.

    Once the certificate is issued successfully, the certificate will be retrieved into AppViewX. You can now push the enrolled certificate(s) to the required endpoint.

Pushing Certificates to a F5 Device

Important: Refer to the pre- and post-push script usage instructions here.

Adding an Application Connector for a F5 Device

  1. Enter the General Information for the ADC devices.
    Table 38. Field descriptions for the Certificate Details
    Field Description
    *Category From the dropdown list, select ADC.
    *Vendor From the dropdown list, select F5.
    *Connector Name Enter a name for this connector, to be able to identify it later.

    AppViewX recommends naming connectors according to use cases so they are easily distinguishable.

    Description Enter any additional details you want to record for this connector.
    Based on the information populated here, the SSL profiles section is populated with the list of available devices for the specified vendor that are already onboarded in AppViewX.
    Note: The name of this section is populated based on the Vendor selected.
  2. To select the device(s) to which the certificate will be pushed, under SSL profiles, from the list of Available Devices, click .
    The Selected devices list is updated automatically.
  3. Enter/Select the Certificate Details.
    Table 39. Field descriptions for the Certificate Details
    Field Description
    *Certificate Type From the dropdown list, select the file type of the certificate to be pushed.
    *Certificate File Name Enter the file name of the certificate to be pushed. The file extension is auto-populated based on the Certificate Type selected.
    *Key File Name

    The private key associated with a certificate is stored in a key file.

    Enter the name of the file that contains the private key associated with the certificate to be pushed.

    The file extension .key is automatically populated.
    Push Root and Intermediate Certificates

    To push the root and intermediate certificates, along with the end certificate, select this checkbox.

    For the Web Dispatcher server, this field is enabled by default and is non-editable.
    *Chain File or Bundle Name
    Note: This field is displayed only when Push Root and Intermediate Certificates is enabled.
    When pushing certificates to F5 devices, particularly for SSL/TLS configurations, a chain file or bundle refers to a single file that includes the entire certificate chain.

    Enter the chain file name in this field.
  4. Enter/Select the Push Details.
    Table 40. Field descriptions for the Push Details
    Field Description
    *Script Location Script files are commonly used to perform certain tasks required to be completed before and/or after a certificate is pushed to the target system.

    The script to be run before the certificate is pushed is called a pre-push script and the script to be run after the push is called a post-push script.

    From the following options, select the location of the script file(s):

    • In AppViewX
    • In Device
    Pre - Push Script File Name Enter the file name of the pre-push script.
    Important: Read the pre and push script usage instructions here.
    Pre - Push Script File Path This field is displayed when Script Location = In Device.
    Enter the location on your local system where the pre-push script file is stored.
    Important: Read the pre and push script usage instructions here.
    Post - Push Script File Name Enter the file name of the post push script.
    Important: Read the pre and push script usage instructions here.
    Post - Push Script File Path This field is displayed when Script Location = In Device.
    Enter the location on your local system where the post-push script file is stored.
    Important: Read the pre and push script usage instructions here.
    Overwrite The Overwrite option is used to specify if existing certificates on the target system will be overwritten with the certificate being pushed.

    If this option is enabled, the certificate being pushed will overwrite any existing certificates with the same identifier on the target system. This will also ensure that only the latest version of the certificate is available on the target system.

    If it is disabled, the push operation will fail in the event of conflicts with the certificates on the target system.

    Note: Overwrite option is disabled by default for Microsoft IIS.
    Push Automatically To automatically push the certificate after it is renewed/reissued to the target system, enable this checkbox.
    Note: The auto push feature for a certificate works only if enabled for the certificate application connector as well the associated certificate group. To enable this feature at the certificate group level, refer the instructions here.
    Secure Push The Secure Push option ensures that the certificate is pushed to the target system securely, protected from any unauthorized access.
  5. Click Save.
    The connector is displayed on the certificate holistic view.

Pushing a Server Certificate

  1. Go to (Menu) > CERT+ > CERTIFICATE ACTION > Push to Device > Server.
    The Server Certificate page is displayed.
  2. To push a certificate, under Common Name, click the required certificate.
    The certificate topology view is displayed.
  3. Click Push to Device. The Push to Device option will be shown if the app connector is already added to the certificate otherwise add the app connector and then proceed.
    Note:
    • Only server certificates that include their private keys will be eligible for push operations to cloud connectors.

      After push, during subsequent discovery, when the CC machine is healthy and discovery returns the pushed certificate, the pushed AppConnector should be in Sync status, else the associated AppConnector must be transitioned to an Out of Sync status.

      If a new certificate is pushed to the gateway while the old certificate for the AppConnector still exists in the inventory, then after the next discovery, the AppConnector must move to Out of Sync status for the old certificate.

    • Endpoint CSR generation is not supported for cloud connectors.
    • The Push to Device option is displayed only after an app connector is added to certificate.
    The Confirmation dialog box is displayed.
  4. Enter your comments, if required, in the text field.
  5. Click OK.
    • The approval process is triggered. The current flow is based on the default policy of two-level approvals.
    • A request ID and work order ID are generated automatically and the work order status is displayed alongside the connector in the certificate topology view.
  6. To approve the push request, from the certificate topology view, click Approve.
  7. In the Confirmation dialog box:
    1. In the Manual Implementation field, to choose the mode of implementation, use the On/Off toggle.
    2. If you select Off, set the date and time to schedule the certificate push.
    3. Enter your comments in the text field and click Yes.
    The work order status displayed beside the connector updates to Push-Review In Progress.
  8. To implement the push request, from the certificate topology view, click Implement.
  9. In the Confirmation dialog box:
    1. In the Manual Implementation field, to choose the mode of implementation, use the On/Off toggle.
    2. If you select Off, set the date and time to schedule the certificate push.
    3. Enter your comments in the text field and click Yes.
    The push action is triggered. After the push action is completed, the status updates to Completed.
    To refresh the certificate topology view, from the top-right corner of the screen, click Refresh.
    An automatic HTTPS-based verification job is run at regular intervals to validate that certificates are correctly installed after the push operations triggered between the intervals; the system compares served certificates with the expected ones across all associated IP:ports. The data gathered by this job is used to create the Push Validation Report that highlights the proportion of successful versus failed push operations, providing a quick view of overall push reliability.

Enabling Auto Regeneration of Certificates

Enabling Auto Regeneration for a Certificate Group

You can enable and configure the auto regeneration feature at the certificate group level, which will apply to all certificates assigned to that group.

For details and instructions to enable auto regeneration at the certificate group level, click here.

Enabling Auto Regeneration at the Certificate Level

Enabling Auto Regenerate for Certificate Enrollment

While you can enable auto regenerate for all types of certificates, for clarity, in this section, we'll look at the instructions for enabling auto regenerate for a server certificate.

For details and instructions to enable auto regeneration at the time of server certificate enrollment, click here.

Enabling Auto Regenerate for Discovered Certificates

While you can enable auto regenerate for all types of certificates, for clarity, in this section, we'll look at the instructions for enabling auto regenerate for a server certificate.
  1. Go to Menu > CERT+ > Certificate Inventory > Server.
    The Server Certificate inventory is displayed.
  2. From the inventory, for the certificate you want to enable auto push for, click the common name.
    The holistic view of the selected certificate is displayed.
  3. For an existing CA connector for the certificate, hover over .
  4. From the menu displayed, click Edit.
    The certificate details are displayed.
  5. Under CA Details, turn on the Regenerate Automatically toggle.
  6. In the Start Regenerating field, enter the number of days before expiration when the certificate should be regenerated.
  7. Click Update.
    The holistic view of the selected certificate is displayed.
    Note: For the auto regenerate process to take effect, set the auto push in the application connector. Refer to the Enabling Auto Push section.

Enabling Auto Push of Certificates to Endpoints

After setting the auto renew/regenerate in the CA connector, you must now enable the auto push in the application connector to ensure the renewed/regenerated certificates are pushed to the end device.

To enable auto push of certificates, you need to enable the corresponding option for the group to which the certificate in question belongs, as well as the connector created for that certificate.

  1. To enable auto push for the certificate group:
    1. Go to Menu > CERT+ > Groups & Policies > Groups.
      The Group page is displayed.
    2. From the Name field, select the required certificate group.
      The Group : Modify : <group name> page is displayed.
    3. From the Other Details section of this certificate group, turn on the Push Certificate Automatically toggle button.
    4. Click Update.
  2. To enable auto push for the certificate connector:
    1. From the holistic view, for an existing application connector for the certificate, hover over (More) icon.
      To add an application connector, follow the instructions given here.
    2. From the menu displayed, click Edit.
      The Edit Application Connector pop-up is displayed.
    3. Select the Push automatically checkbox.
      Important: The auto-push feature works only when it is enabled at the connector level and disabled at the group level. If enabled at the group level but disabled at the connector level, the feature will not function.
    4. Click Save.
      The holistic view of the selected certificate is displayed.
      Note: An Auto Renew Certificates job is scheduled to run every 6 hours. It auto renews the configured certificates based on the number of days before expiry. AppViewX will disable the push automatically option in the Parent certificate application connector and enable it in the renewed certificate application connector.
      Note: An Auto Regenerate Certificates job is scheduled every day. It auto regenerates the configured certificates based on the number of days before expiry.

Enabling Auto Renewal of Certificates

To enable auto renewal of certificates, you need to enable the corresponding option for the group to which the certificate in question belongs, as well as the connector created for pushing that certificate.
Note: While you can enable auto push for all types of certificates, for clarity, in this section, we'll look at the instructions for enabling auto push for a server certificate.
  1. To enable auto renewal for the certificate group:
    1. Go to Menu > CERT+ > Groups & Policies > Groups.
      The Group page is displayed.
    2. From the Name field, select the required certificate group.
      The Group : Modify : <group name> page is displayed.
    3. From the Other Details section of this certificate group, turn on the Renew Automatically toggle button.
    4. Click Update.
  2. To enable auto renewal for the certificate connector:
    1. Go to Menu > CERT+ > Certificate Inventory > Server.
      The Server Certificate inventory is displayed.
    2. From the inventory, for the certificate you want to enable auto renew for, click the common name.
      The holistic view of the selected certificate is displayed.
    3. For an existing CA connector for the certificate, hover over .
    4. From the menu displayed, click Edit.
      The certificate details are displayed.
    5. Under CA Details, turn on the Renew Automatically toggle.
    6. In the Start Renewing field, enter the number of days before expiration when the certificate should be renewed.
    7. Click Update.
      The holistic view of the selected certificate is displayed.
      Note: For the auto renewal process to take effect, set the auto push in the application connector. For instructions, refer to the Enabling Auto Push section.

Troubleshooting F5 WAF

This section helps you troubleshoot the common problems that you might encounter when using the F5 WAF functionalities. This guide will give more troubleshooting processes on F5 WAF certificate config fetch, discovery, CSR creation, backup, push, bind, rollback, and other actions associated with F5 WAF.

Issues in Fetch Config

Error Message Possible Cause Possible Solution
Authentication failed for the device Invalid credentials specified for the device. Provide valid credentials for the device.
Failed to fetch partitions from the device Partition fetch failed.

  1. Check the device partitions.

  2. Please check the associated error message.
SSH connection failed Unable to establish the SSH connection. Please ensure that the device can be connected via SSH from AppViewX.

Issues in Discovery

Error Message Possible Cause Possible Solution
Please provide information as required Discovery name is not given or length is less than 2 characters. Enter a valid name with a minimum of 2 characters.
Interval between batches info. is missing when execution type is sequential. Provide a time interval between batches in minutes.
Please select a device No device is selected in the Discover By section. Select at least one device to discover certificates from.
Authentication failed for the device Invalid credentials specified for the device. Provide valid credentials for the device.
Failed to fetch partitions from the device Partition fetch failed.

  1. Check the device partitions.

  2. Please check the error message associated.
SSH connection failed Unable to establish the SSH connection. Please ensure that the device can be connected via SSH from AppViewX.

Issues in CSR Generation

Error Message Possible Cause Possible Solution
Authentication failed for the device Invalid credentials specified for the device Provide valid credentials for the device.
SSH connection failed Unable to establish the SSH connection. Please ensure that the device can be connected via SSH from AppViewX.
CSR Generation using HSM on this device version is not supported. Version not supported. Please use the supported version device to create CSR using HSM. Supported versions are v13 and v12.

1) CSR content unavailable in device

2) Requested CSR is not available in device

3) Csr could not be fetched

 CSR content unavailable on device. For some reasons CSR creation has failed, please check the logs to reproduce.
CSR already exists in this scope with the same Key reference name The name is already used on the device. Please use a different name.
Csr generation is device failed CSR generation has failed. CSR generation has failed. Please refer to the associated error message.
Thales HSM is not installed in the device. Please install and try again. Thales is not installed in the device. Please install Thales HSM and try again.
Invalid module. Please specify the valid module and try again. Invalid module specified. Specify a valid module and try again.
The CSR <name> was not found in the device. CSR content is not available in the name specified. Please check the name in the CA connector.
NetHSM private key is not available/installed in device NetHSM private key is not available/installed in the device. Please install NetHSM private key on the device.

Issues in F5 WAF Backup, Push, Bind, and Rollback

Error Message Possible Cause Possible Solution
Unable to initiate request. Pushing to device when certificate is unavailable, i.e, in a new state. Push to device after certificate has been retrieved from CA.
Previous work order is in progress and not completed. Initiate push after previous work order is finished.
AppConnector might not be in sync. Synchronize the appConnector and retry.
Unable to initiate request, template is in disabled state Given workflow is not in enabled state. Enable the push/rollback workflow from the Workflow section.
User is not authorized User does not have required permissions to push to the device. Retry after getting the access for required action.
Application connector(s) not found Application connector info was not found. Provide the correct connectorId if not pushing using AppViewX UI.
Request associated with the application connector is in progress Previous work order is in progress and not completed. Initiate this request after the previous work order is finished.
Push not triggered or succeeded or No existing data available for backup process. Rollback couldn’t proceed because push was not successful. Only successfully pushed certificates can be rolled back.
Certificate not found. Pushing to device when certificate is unavailable, i.e, in a new state. Push to device after certificate has been retrieved from CA.
Authentication failed for the device Invalid credentials specified for the device. Provide valid credentials for the device.
SSH connection failed Unable to establish the SSH connection. Please ensure that the device can be connected via SSH from AppViewX.
Invalid profile type Specified profile type is not supported. Please use client-SSL or server-SSL.
Certificate fetch failed Certificate fetch failed. Check the error message associated to know more about the problem.
Certificate already exists Certificate is already available with the same. Either change the name or enable overwrite in the application connector.
Key already exists Key is already available with the same. Either change the name of the key or enable overwrite in the application connector.
Certificate is expired Certificate is expired. Push the certificate which is currently valid.
Unknown certificate algorithm Unknown certificate algorithm. Push the certificates only with RSA or EC.
certificate is not yet valid Certificate valid from value is greater than the current time. Only valid certificates only can be pushed.

Troubleshooting

User Permission Required:
  • Role: Administrator
  • Terminal Access: Advanced Shell or TMSH

Certificate Discovery

For discovering certificates from device, use SFTP to download certificate and key files from the device. SFTP will work only for F5 users provided with Advanced Shell access. Refer to the F5 article:  https://my.f5.com/manage/s/article/K16621651

For Users without Advanced Shell access, SFTP will fail as stated in the above F5 article & in case of SFTP failure, try to download certificate and key files from the device using SCP.

F5 devices enforce security restrictions that limit access to specific directories via SCP. These restricted paths are defined in the scp.blacklist file on the device.

During certificate discovery, if these path restrictions are encountered, AppViewX may log an error such as Unable to download when attempting to retrieve files through SCP.

In such cases, you can proceed with either of the following alternatives to resolve the issue:
  • REST API(s) can be used to download the files from device. To enable REST API(s) for downloading files, run:
    db.cert_metadata.update({"_id": "CERT_VENDOR_BASED_CONDITIONS"},{"$set": { "map.adc_f5_discover_certs_with_rest" : "true"}});
  • Remove particular paths accessed via AppViewX from the scp.blacklist file.
    Paths accessed from AppViewX
    • “/config/filestore/files_d/”
    • “/config/ssl/ssl.crt/”
    • “/config/ssl/ssl.key/”
    • “/config/httpd/conf/ssl.crt/”
    • “/config/httpd/conf/ssl.key/
    Remove these paths and restart sshd based on the steps mentioned in the F5 article:  https:// my.f5.com/manage/s/article/K73463547
    Note: If user has been provided with Advanced Shell access, both SFTP and SCP will work without any modification in device configuration or DB query execution.

CLI command to check whether SFTP is working from AppViewX to device

Run the SFTP command from AppViewX CLI -> sftp < username >@ (Ex: sftp [email protected])

CLI command to check whether SCP works between device and AppViewX
  1. Open an SSH connection to the device -> ssh username@
  2. Run bash command.
  3. Change the directory to any one of the certificate location:

    cd/config/filestore/files_d/Common_d/certificate_d/

  4. Run ls command and copy any one of the certificate file name.
  5. Try SCP for the file copied to AppViewX location > scp

    <file_name_with_location><appviewx_user_name>@<appviewx_ip>:<appviewx_location>

    Example: "/config/filestore/files_d/Common_d/certificate_d/:Common:Xecure.crt_67510_4" [email protected]:/home/appviewx/)

Certificate Push

During certificate push, the file will be copied from AppViewX to the F5 device certificate location; If push fails with the error, Unable to upload file using SCP, it is because of the F5 device's SCP constraints. You can use any of the solution approaches:
  • The certificate file must be copied to an SCP-allowed directory on the F5 device. From there, it will be relocated internally to the appropriate certificate location.
    To enable this behavior, run the following database query, specifying any SCP-permitted path on the F5 device.
    db.cert_metadata.update({_id:"CERT_VENDOR_BASED_CONDITIONS"},{"$set":{"map.a
 dc_f5_file_upload_path":"/config/"}});
  • Remove the certificate path from the scp.blacklist file mentioned above in the solution approach of discovery.
F5 Device Communication
  • Certificate discovery, push and bind functionalities in AppViewX communicates with F5 using iControl SOAP methods.
  • When the F5 device uses an HTTPS port other than 443, or if iControl method failures occur, AppViewX should communicate with the device through REST API-based integration.
  • To enable the REST based communication to F5 device, run the below DB query in AppViewX DB:
    db.cert_metadata.update({"_id": "CERT_VENDOR_BASED_CONDITIONS"},{"$set": {
 "map.adc_f5_rest_enabled":"true"}})
