Modify Infoblox DNS Records - Basic

This workflow modifies existing records in Infoblox by fetching the existing records based on App Name. By using this workflow, you can modify multiple ( A, HOST, PTR,CNAME,TXT,MX) records using the table.

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the Infoblox IPAM category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Modify Infoblox DNS Records - Basic workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Modify Infoblox DNS Records - Basic :: FormBuilder page is displayed.

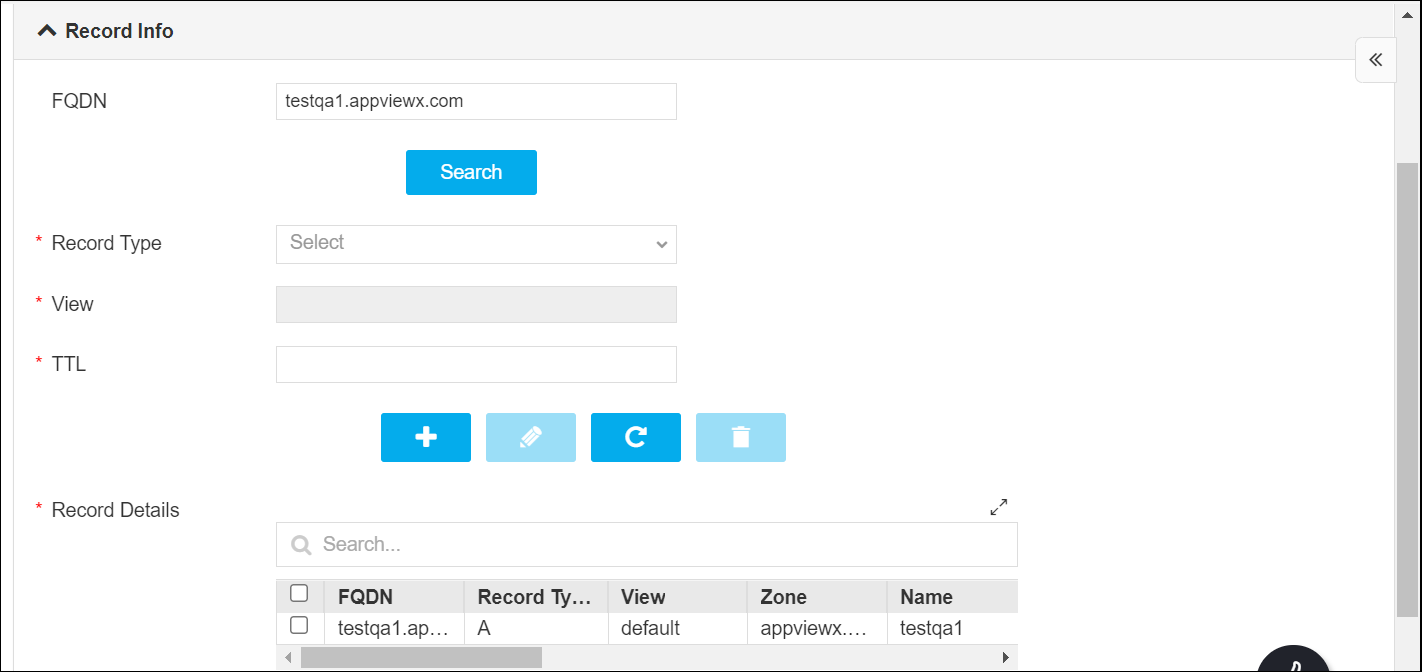

  5. Provide the necessary details of DNS record for a device.
  6. Click Submit.
    The Confirmation dialog box is displayed.
  7. To save this form so you can edit it later, click Save Draft and then click OK.
    The form will be saved as Open request under Request > My Request.

    OR

    To submit the form, click OK.

    The validation starts automatically and reaches the Review stage.
    Note:
    • If there is any failure at this stage, start a new request by providing the correct data.
    • Alternatively, select the failed request and clone it. Update the correct input data in the form input, and submit the workflow again.

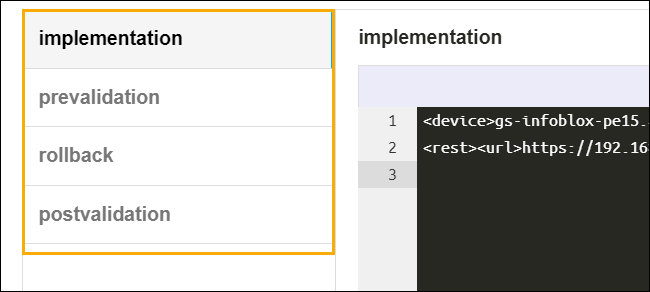

  8. Review the input data under the implementation, rollback, and postvalidation tabs.

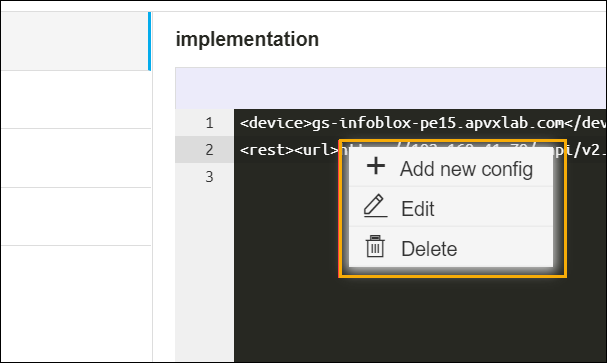

  9. (Optional) If you need to change any data at this stage, right click, as shown in the image below, and select the required option.
  10. After the review, click Submit.
    The Confirmation dialog box is displayed.
  11. To continue with the workflow creation, click Ok
    OR

    To abort the workflow creation, click Cancel.

    It takes a while to complete the post-validation.

    When the workflow is created, an email is triggered to all the configured email IDs.

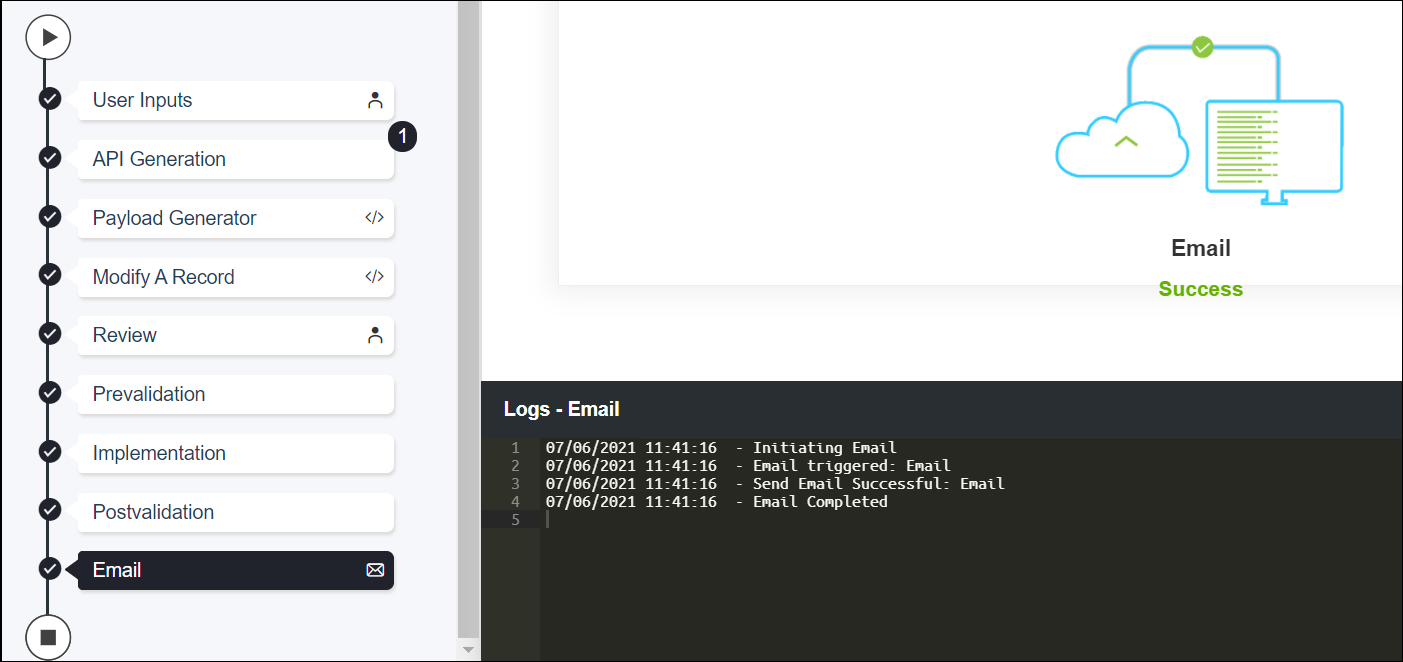

    Note: The validation stages are shown in the left side of the screen. To view a validation stage, click on the respective stage.
