Validation Authority
- OCSP URL must be published in the AIA field of the certificate with the AppViewX OCSP server URL.
- OCSP Server and OCSP Generator must be deployed for OCSP to work.
- For on-premise deployment, configure OCSP as explained here.
- You can select one or more certificates from the inventory and click Actions > Revocation Check to perform revocation validation. After successful validation, the certificate status is reflected through color-coding in the Common Name column.
CRL Profiles
- Standard CA: Lists CRLs only from AppViewX CA (GCP-backed CA) with details such as CRLDP, issuer common name, linked OCSP, next update time, DC name, and connectivity.
- PQC Ready CA: Lists CRLs from AppViewX Native CA. This option is available only if at least one AppViewX Native CA has been created. Only then the system automatically creates a new OCSP responder for the AppViewX Native CA.
CRL Scheduler
To set the CRL scheduler for Root CA:
-
Go to
.
- Select the CRL tab. By default, this is selected.
-
Select PQC Ready CA. By default, this is
selected.
Note: The CRL Scheduler and Actions are available only for PQC Ready CA. Ensure that you have necessary role-based access controls and workflow access to publish CRL.
-
Enter the following details for Root CA.
Table 1. Fields for CRL Scheduler Field Description *Timezone Select a timezone from the dropdown list. The scheduler runs on the selected timezone. Starts on Select a start date and time by clicking the calendar. *Frequency Select the frequency as daily, weekly, or monthly. *Days of Week This field appears only for root CA. Select the days of the week you want the scheduler to run. *Overlap Period Select the overlap period in days or weeks. CRL validity overlap between two consecutive CRLs. *: Mandatory fields -
Enter the following details for Sub CA:
Table 2. Fields for CRL Scheduler Field Description *Timezone Select a timezone from the dropdown list. The scheduler runs on the selected timezone. Starts on Select a start date and time by clicking the calendar. *Frequency Select the frequency as daily, weekly, or monthly. *Overlap Period Select the overlap period in days or weeks. CRL validity overlap between two consecutive CRLs. *: Mandatory fields The created CA is displayed on the CRL home page as shown:
- Click Publish Now in Actions to trigger CRL issuance for the selected Native CA.
Accessing CRL Files Without Internet
In AppViewX SaaS deployments, certificates by default embed the public tenant URL as the CRL Distribution Point (CDP) endpoint (for example, http://[Host]:30022/avxapi/download-crl/<CA_Name>/crl.crl).
To enable internal clients to retrieve CRL files without external internet access, CRL requests can be routed through an on-premise AppViewX Cloud Connector (CC). The Cloud Connector is deployed inside the customer network and communicates securely with the AppViewX SaaS platform.
- This configuration applies only to SaaS deployments where clients lack internet access.
- Ensure that the deployed Cloud Connector is running the latest supported version.
Step 1: Obtain the Cloud Connector Host URL
- Log in to the AppViewX platform.
- Navigate to Platform > Cloud Connector.
- Locate the target Cloud Connector instance and copy its Host Name or IP address.
If multiple Cloud Connectors are deployed behind a load balancer for high availability, copy the Load Balancer FQDN/URL instead.
Step 2: Construct the Custom CRL Distribution Point (CDP) UR
Construct the internal CRL URL using the following syntax:
http://<Cloud_Connector_Host>:30022/avxapi/download-crl/<CA_Name>.crl
Parameters:
- <Cloud_Connector_Host>: The host name, IP address, or Load Balancer FQDN of the local Cloud Connector.
- 30022: The dedicated port configured for Cloud Connector communication.
- avxapi/download-crl: The AppViewX API endpoint for CRL downloads.
- <CA_Name>.crl: The exact Certificate Authority name followed by the .crl extension.
Step 3: Embed the Custom CRL URL into the Certificate Template
To ensure that newly issued certificates contain the Cloud Connector CRL URL:
- Navigate to PKI > Templates.
- Select the certificate template used for issuing certificates to
internal clients.Note: Default system templates cannot be edited directly. Clone the default template to create a customizable copy.
- In the template configuration, scroll down to the CRL section.
- Clear the CA Defined CRL checkbox to disable the default public SaaS tenant URL
- In the Custom CRL URL field, enter the Cloud Connector URL constructed in Step 2.
- Click Save or Update to apply the changes.
All certificates issued using this template will have the internal Cloud Connector URL embedded in their CRL Distribution Points (CDP) field, enabling revocation checks within the private network.
OCSP Profiles
GET
/ocsp/{base64-url-encoded-request}. No additional configuration is
required to enable this functionality.You can create the following OCSP profile by going to PKI > Validation Authority > OCSP:
- If you want to activate a selected OCSP signing certificate, you can do it
from Actions > OCSP Signing. The OCSP configuration is updated with
the selected certificate.Note: An OCSP signing certificate can be revoked only on deleting the CA. If an OCSP signing certificate is revoked or deleted from the CLM > Certificate Inventory > Server page, then the OCSP responder will not work. To remediate this action, you can create a new OCSP signing certificate by going to CLM > Certificate Action > Enroll Certificate and following the procedure explained in the Section, Creating OCSP Signing Certificate.
Configuring OCSP for On-Premise Deployment
-
Go to
(Menu) icon > PKI > Validation
Authority.
By default, CRL is selected. -

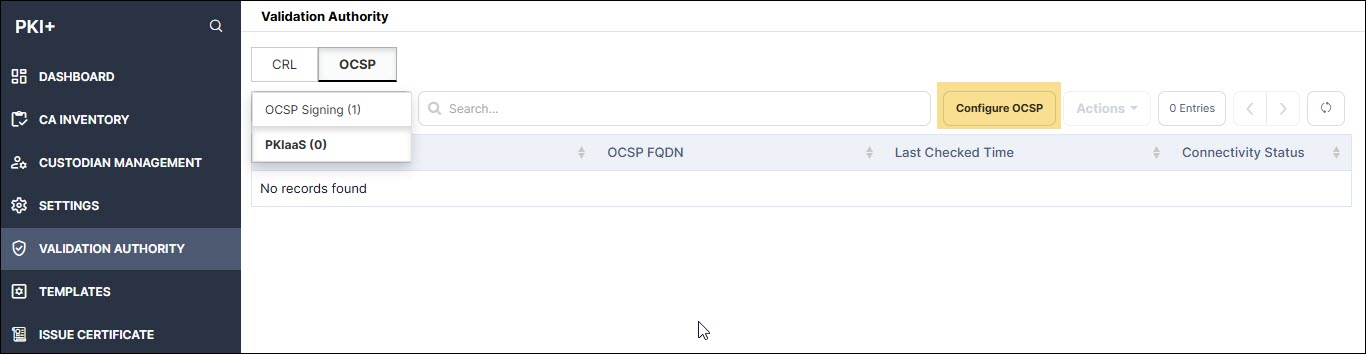

Click the OCSP tab and click PKIaaS from the dropdown
list as shown.
-
Click Configure OCSP.
The Configure OCSP - PKIaaS window is displayed.
-
Enter the following fields:
Table 3. Field Description for Configure OCSP - PKIaaS page Field Description *OCSP Name Provide a friendly name. *OCSP FQDN Enter the node domain name where OCSP plugin is hosted. *: Mandatory fields -
Click Add.
The entered information is displayed in the table.To troubleshoot OCSP responder with openSSL, see Section, Troubleshooting.
Creating OCSP Signing Certificate
To create an OCSP signing certificate:
-
Go to CLM > Certificate Action > Enroll Certificate.
The Enroll Certificate page is displayed.
- Select the Certificate Authority as AppViewX PKIaaS.
- Select the Certificate Profile as OcspSigning.
-
Fill out the other fields as explained in the Section, Adding/Enrolling Certificate.

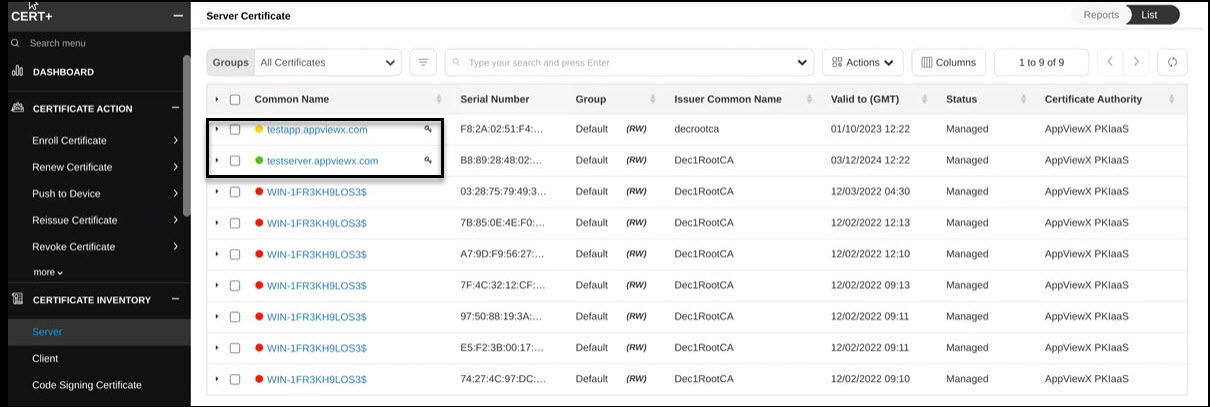

The OCSP signing certificate appears on the CLM > Certificate Inventory > Server page as shown with a key symbol beside the common name.
Verifying OCSP via HTTP GET
-
Create OCSP request.
openssl ocsp -issuer issuer.pem -cert certificate.pem -reqout ocsp_request.der -no_nonce
-
URL-safe Base64 encode the request.
OCSP_REQUEST=$(base64 -w 0 ocsp_request.der | tr '+/' '-_' | tr -d '=')
-
Send HTTP GET request.
curl -o ocsp_response.der "http://<ocsp-host>:<port>/ocsp/${OCSP_REQUEST}"
-
Parse the response.
openssl ocsp -respin ocsp_response.der -text
Restriction: Deletion of Active OCSP Signing Certificates
If a certificate is actively used for OCSP signing, the delete operation is blocked and an error message is displayed.
Before deleting the certificate, ensure one of the following actions:
- Activate a different OCSP certificate under the PKI Validation Authority.
- Remove the certificate assignment from all associated OCSP responders.
