GitOps - Pull Config and Execute AS3

This workflow pulls the AS3 configurations from a file in GitHub repository.

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the GITOps category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the GitOps - Pull Config and Execute AS3 workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > GitOps - Pull Config and Execute AS3 :: FormBuilder page is displayed.
  5. Select the field information in the AS3 Device section.
    Table 1. AS3 Device Section - Filed and Description Table
    Field Description
    *Select Device Select a device from the dropdown list.
  6. Enter the field information in the GitHub Repo Details section.
    Table 2. GitHub Repo Details Section - Field and Description Table
    Field Description
    *Repo Owner Enter the name of the repository owner.
    *Repo Name Enter the name of the repository.
    *File Path Enter the file path.
    *GitHub Username Enter GitHub username.
    GitHub Password Enter GitHub password.
  7. Click the Next button.
    Note:
    • If you want to save this form to edit it later, click the Save Draft button, and then click Ok in the Confirmation popup window. The form will be saved as Open request under Request > My Request.
    • If you want to cancel this form, click the Cancel button.
  8. Click Ok to submit the form.
    The validation starts automatically and reaches the Review stage.
    Note:
    • If there is any failure at this stage, start a new request by providing the correct data.
    • Alternatively, select the failed request and clone it. Update the correct input data in the form input, and submit the workflow again.
  9. Review the input data under the implementation, rollback, and postvalidation tabs:

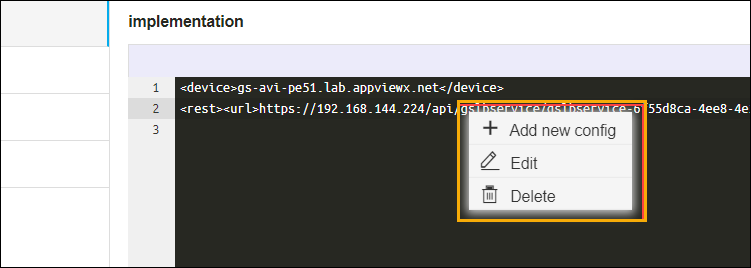

  10. (Optional) If you need to update any data at this stage, you can do so by clicking the right-side of the mouse on the data and selecting the desired option.
  11. After the review, click the Submit button.
    The Confirmation popup opens.
    Note: To stop running the workflow creation, click Cancel.
  12. Click Ok to continue the workflow creation.
    It takes a while to complete the request.
  13. The workflow is created and the email is triggered to the configured email IDs.

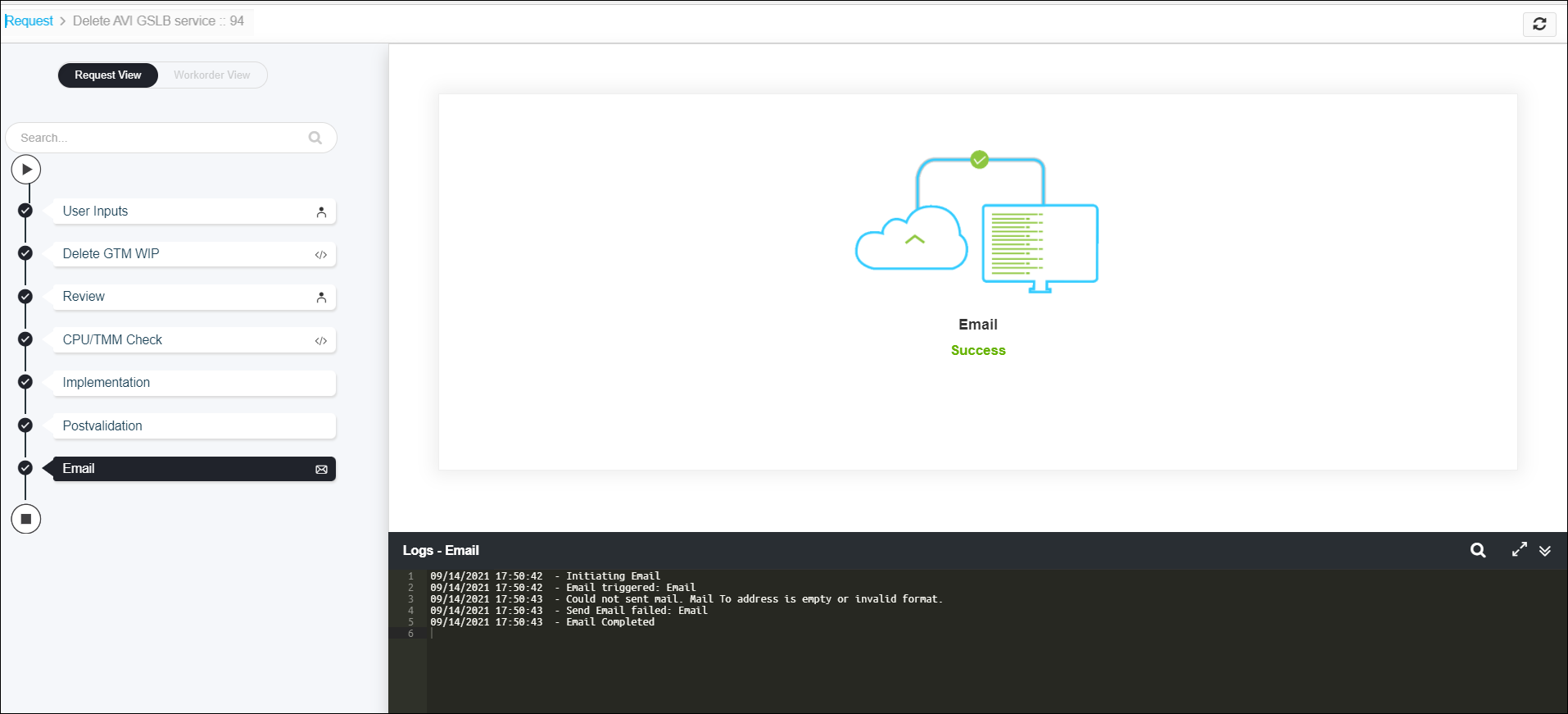

    Note: The stages of the request are shown in the left-side of the screen. To view a particular stage of the request, click the respective stage.
