Modify BlueCat DNS Records

This workflow modifies existing records in Bluecat by fetching the existing records based on FQDN. It can also modify multiple ( A, HOST, PTR, CNAME, TXT, MX) records.

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the Bluecat IPAM category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Modify BlueCat DNS Records workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Modify BlueCat DNS Records :: FormBuilder page is displayed.

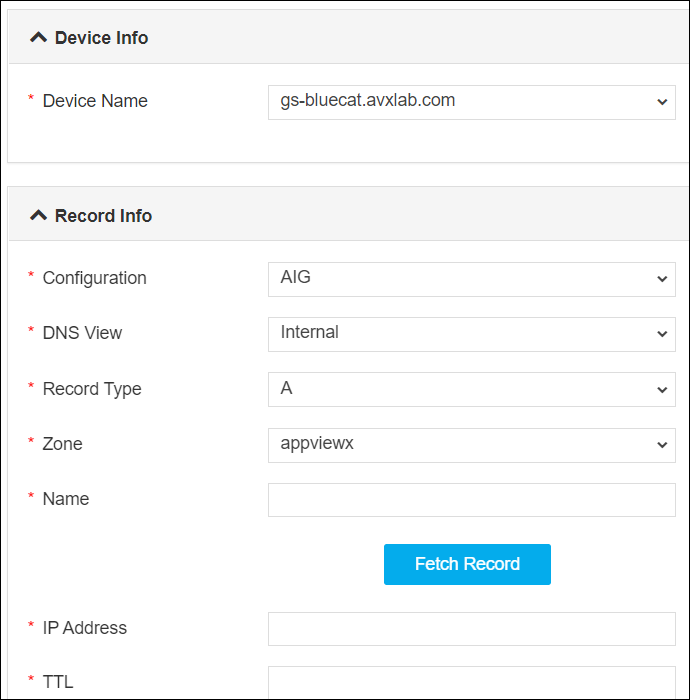

  5. Provide the necessary details of DNS records for a device.
  6. Click Submit.
    The Confirmation dialog box is displayed.
  7. To save this form so you can edit it later, click Save Draft and then click OK.
    The form will be saved as Open request under Request > My Request.

    OR

    To submit the form, click OK.

    The validation starts automatically and reaches the Review stage.
    Note:
    • If there is any failure at this stage, start a new request by providing the correct data.
    • Alternatively, select the failed request and clone it. Update the correct input data in the form input, and submit the workflow again.

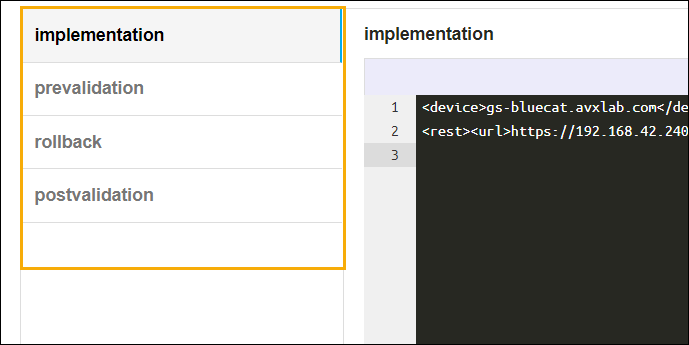

  8. Review the input data under the implementation, rollback, and postvalidation tabs:

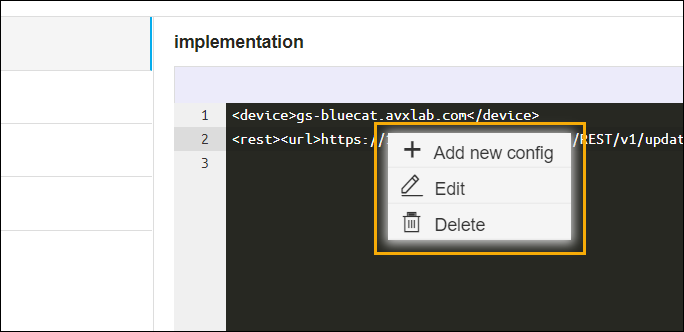

  9. (Optional) If you need to change any data at this stage, right click, as shown in the image below, and select the required option.
  10. After the review, click Submit.
    The Confirmation dialog box is displayed.
  11. To continue with the workflow creation, click Ok
    OR

    To abort the workflow creation, click Cancel.

    It takes a while to complete the post-validation.

    When the workflow is created, an email is triggered to all the configured email IDs.

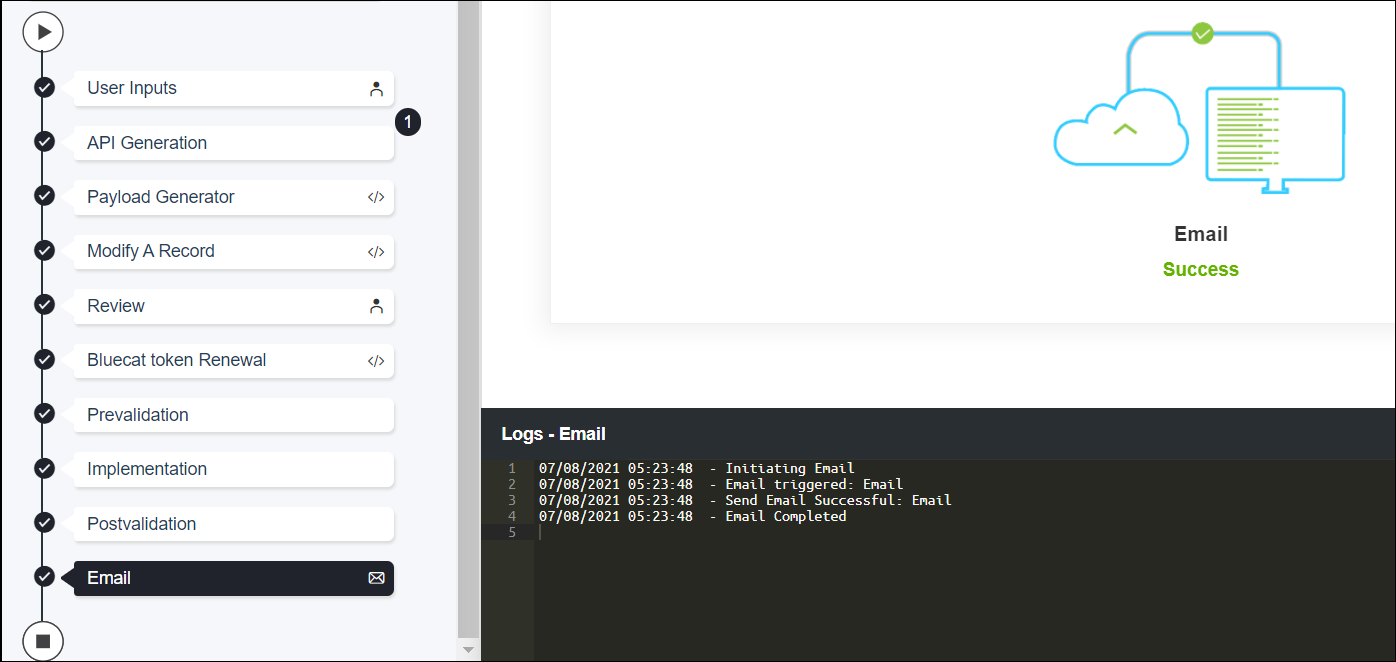

    Note: The validation stages are shown in the left side of the screen. To view a validation stage, click on the respective stage.
